• IC 3301: SOC SupraHD691
Part number: ZR39691HGCG-X
Sharp code: RH-IXD425WJZZQ.
 Integrated Digital & Analog Demodulator
DVB-T/DVB-C.
NTSC/PAL/SECAM.
NICAM/A2/BTSC/FM/AM.
 Integrated Digital & Analog Demodulator
NTSC/PAL/SECAM video decoder.
Multiformat H.264/ MPEG-4/VC1/MPEG-2/AVS/RM/DivX/Xvid
decoder.
3D video processing (SupraHD® 691 only).
10-bit video processing.
1080i motion-adaptive de-interlacer.
ACM-2D color processor.
Graphics blending/overlay.
Audio DSP, dual-stream audio decoding.
 System Processors & Interfaces
450MHz application CPU.
300MHz system CPU.
TV microcontroller for standby mode.
Integrated Ethernet MAC.
USB 2.0.
DVB CI/CI+.
 External SPI Flash Memory: 2-16Mbyte
 External NAND Flash Memory: Up to 1Gbit
 External DDR2 or DDR3 Required
 Package
575-ball BGA, 23x23mm2
SupraHD
®
-690-691-DTS-GEN-v1.2 - Preliminary Release
Zoran ZR39690 & ZR39691
Integrated Digital & Analog Demodulator
DVB-T/DVB-C
NTSC/PAL/SECAM
NICAM/A2/BTSC/FM/AM
Video Inputs
Two (2) 1080p HDMI (v1.4a/DC)
Three (3) 1080p YPbPr/RGB
One (1) VGA, up to WUXGA resolution
Four (4) CVBS
Three (3) S-Video
Transport stream option
Audio Inputs
Six (6) stereo L/R line-level
Internal Video/Audio Processing
NTSC/PAL/SECAM video decoder
Multiformat H.264/ MPEG-4/VC1/MPEG-
2/AVS/RM/DivX/Xvid decoder
3D video processing (SupraHD
®
691 only)
10-bit video processing
1080i motion-adaptive de-interlacer
ACM-2D color processor
Graphics blending/overlay
Audio DSP, dual-stream audio decoding
Video Outputs
Dual-channel LVDS (1080p, up to 10bpp)
Two (2) CVBS
Audio Outputs
Two (2) stereo L/R line-level
Optional up-to-three (3) I2S stereo pairs
One (1) S/PDIF
System Processors & Interfaces
450MHz application CPU
300MHz system CPU
TV microcontroller for standby mode
One (1) integrated Ethernet MAC
One (1) USB 2.0
One (1) DVB CI/CI+
External SPI Flash Memory: 2-16MByte
External NAND Flash Memory: Up to 1Gbit
External DDR2 or DDR3 Required
DDR2-1066 or DDR3-1333, 128Mbytes (typical)
Power
1.1V core voltage, 1.8V memory I/F, 3.3V I/O
Package
575-ball BGA, 23x23mm
2
, fully-green

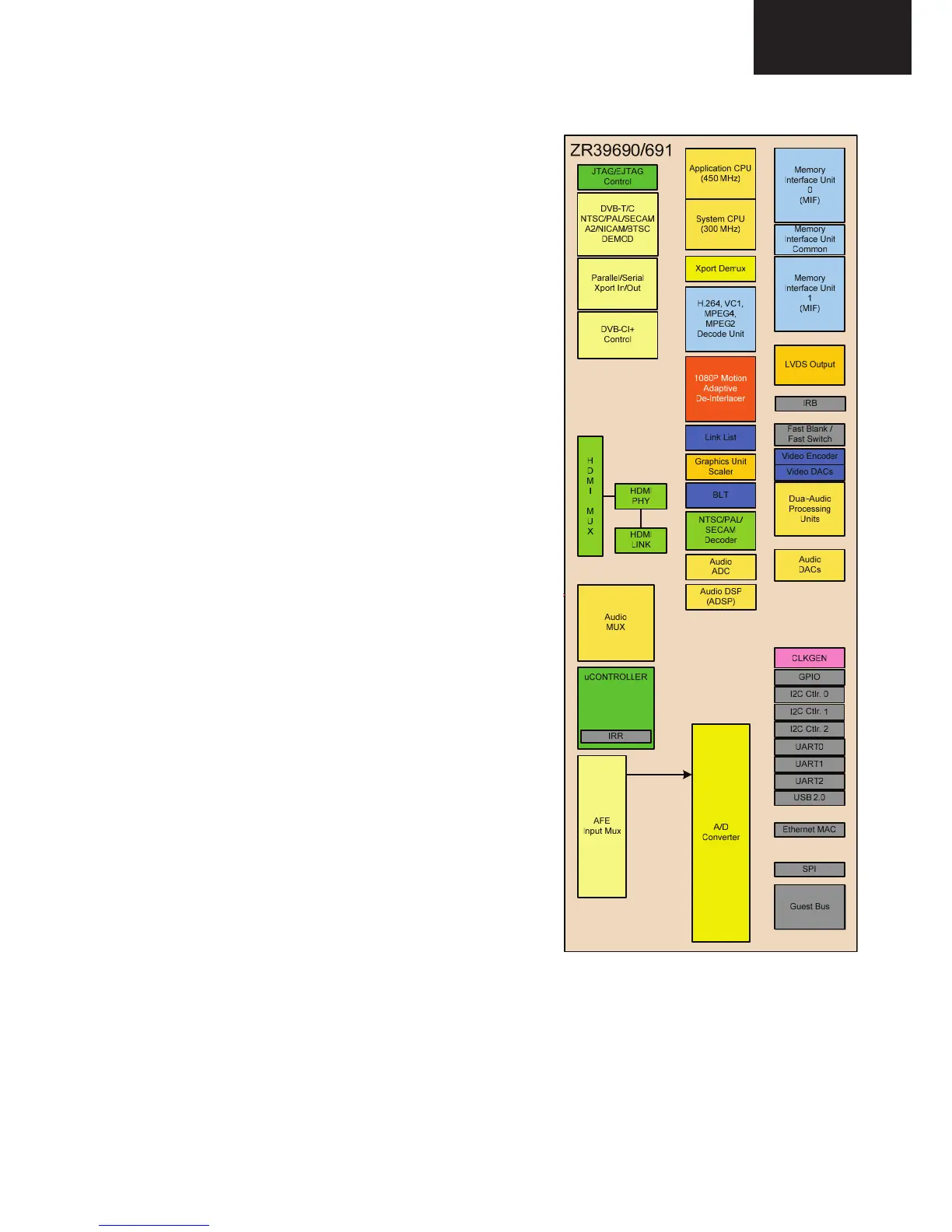

Figure 1: Basic SupraHD
®
IC Block Diagram
5/20/2011 CONFIDENTIAL INFORMATION – DO NOT COPY 1

Sharp LC-40LE730E Specifications

General

Brand	Sharp
Model	LC-40LE730E
Category	LCD TV
Language	English
