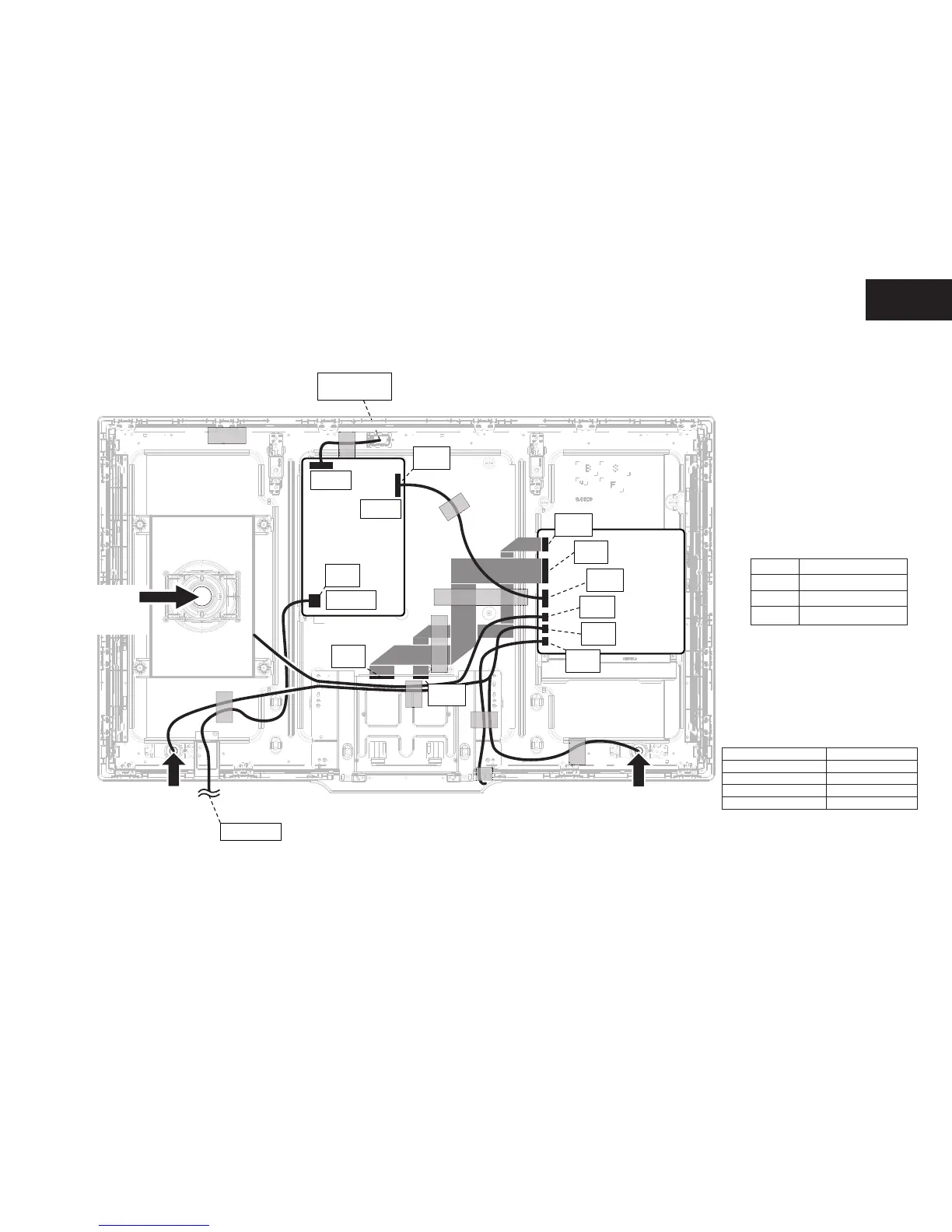

40” OVERALL WIRING DIAGRAMS
Service Manual
TO DISPLAY
SUPPLY
[PD]
[LV]
[LW]
[SB]
[SP]
[RA]
[PD]
[EL]
SPEAKER -L
(TWEETER)
SPEAKER -R
(TWEETER)
SPEAKER
(SUBWOOFER)
Service Manual
Service Manual
Service Manual
Service Manual
[LV]
AC CORD
[LW]
SC101
P802
P801
LW QCNW-M252WJQZ
LV QCNW-M251WZQZ
PD QCNW-M004WJQZ
AC CORD QACCKA058WJPZ
WIRES
POWER SUPPLY RDENCA440WJQZ
MAIN BOARD DUNTKF915FM02
PANEL R1LK400D3LB43P
SPEAKER TWEETER RSP-ZA550WJZZ
SPEAKER SUBWOOFER RSP-ZA549WJZZ
OTHER
