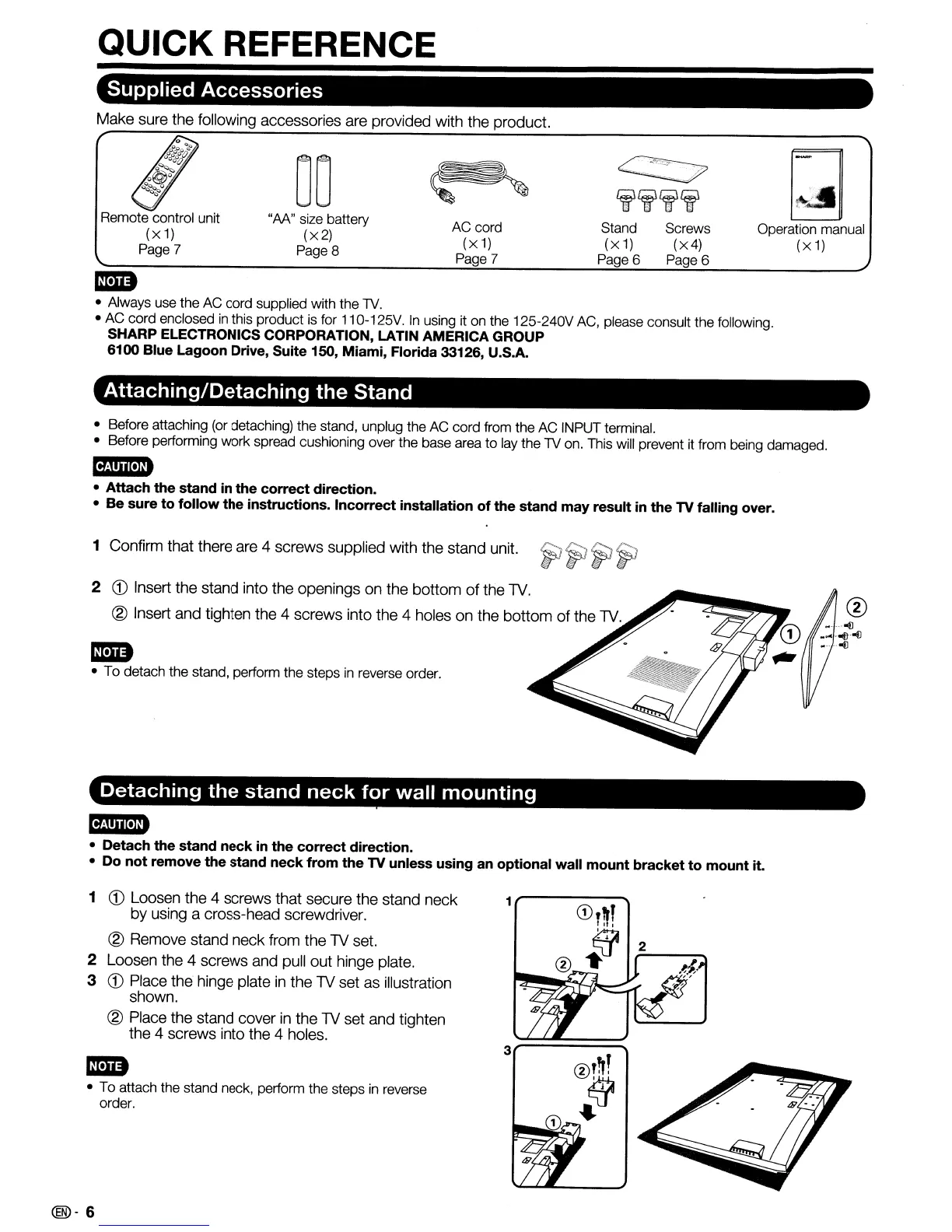

QUICK REFERENCE
Supplied Accessories
Make sure the following accessories are provided with the product.
Operation manual
(x
1)
Screws
(x4)
Page 6
Stand
(x
1)
Page 6
AC cord
(x1)
Page 7
00
"M"
size battery
(x2)
Page 8
Remote control unit
(x1)
Page 7
1m
• Always use the AC cord supplied with the
TV.
• AC cord enclosed
in
this product is for
11
0-125V.
In
using it on the 125-240V AC, please consult the following.
SHARP ELECTRONICS CORPORATION, LATIN AMERICA GROUP
6100 Blue Lagoon Drive, Suite 150, Miami, Florida 33126, U.S.A.
Attaching/Detaching the Stand
• Before attaching (or detaching) the stand, unplug the AC cord from the AC INPUT terminal.
• Before performing work spread cushioning over the base area to lay the TV on. This will prevent it from being damaged.
mmm
• Attach the stand
in
the correct direction.
• Be sure to follow
the
instructions. Incorrect installation
of
the
stand
may
result
in
the TV falling over.
1 Confirm that there are 4 screws supplied with the stand unit.
j;J
~
~
1J
2
<D
Insert the stand into the openings on the bottom
of
the
TV.
® Insert and tighten the 4 screws into the 4 holes on the bottom of the
TV.
1m
• To detach the stand, perform the steps
in
reverse order.
Detaching the stand neck for wall mounting
mmm
• Detach the stand neck
in
the correct direction.
• Do
not
remove
the
stand neck from
the
TV unless using an optional wall mount bracket
to
mount it.
1
<D
Loosen the 4 screws that secure the stand neck 1
-----
....
by
using a cross-head screwdriver.
® Remove stand neck from the TV set.
2 Loosen the 4 screws and pull out hinge plate.
3
<D
Place the hinge plate
in
the TV set as illustration
shown.
® Place the stand cover
in
the TV set and tighten
the 4 screws into the 4 holes.
3
1m
• To attach the stand neck, perform the steps
in
reverse
order.
@-
6
