Sharp LC-52XS1E Service Manual

LC-52XS1E/RU/LC-65XS1E/RU
2 – 5

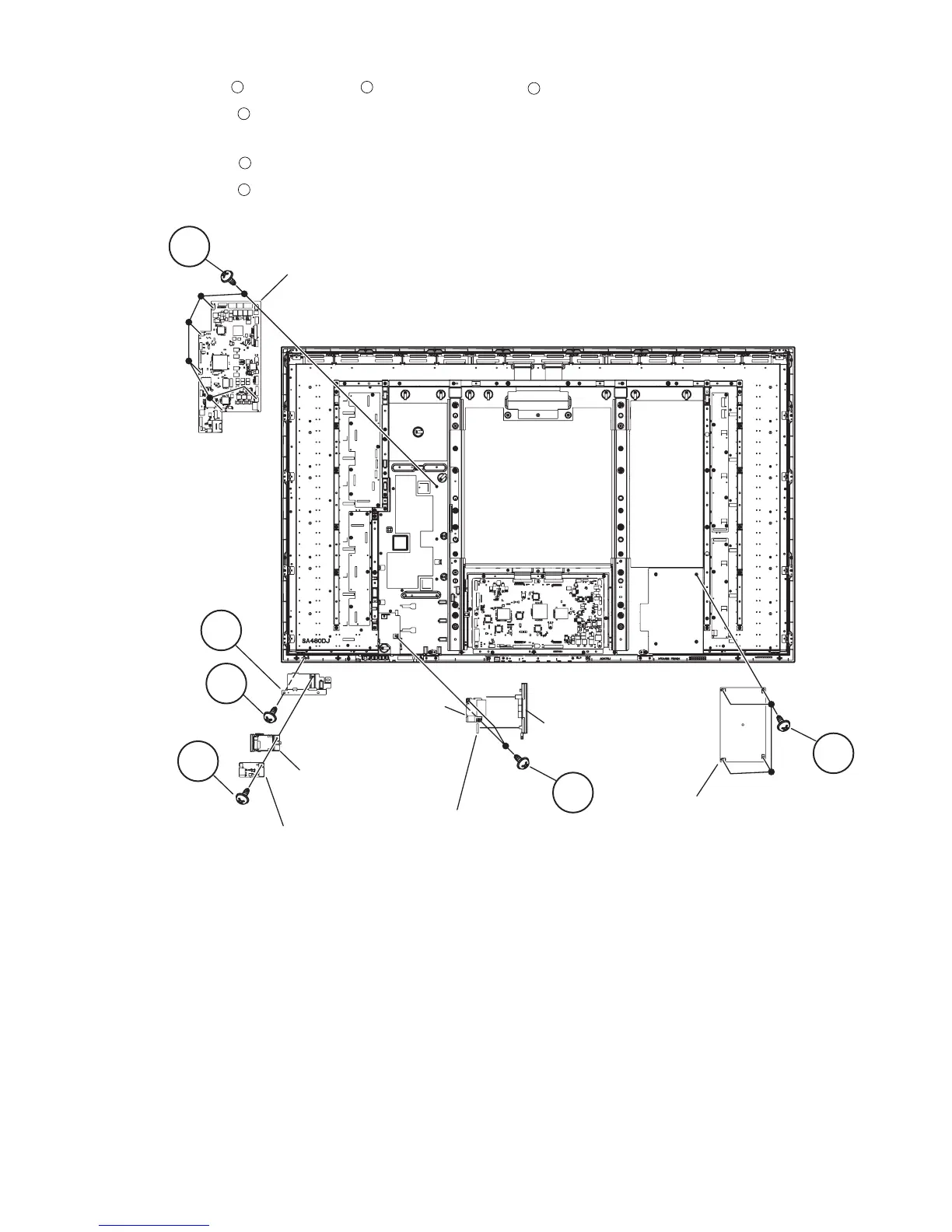

5. Removing of USB Unit, SP-T Unit, DC OUTPUT Unit, IF Unit and AC INLET Unit
1. Remove the 1 lock screw and USB Fix Angle . Remove the 1 lock screw and detach the USB Unit from USB Cover Holder.
2. Remove the 2 lock screws and detach the SP-T Unit.
3. Detach the DC OUTPUT Unit from Jack Cover.
4. Remove the 6 lock screws and detach the IF Unit.
5. Remove the 4 lock screws and detach the AC INLET Unit.
1
2
3
4
5
6
5
3
1
2
4
6
IF Unit
USB Fix Angle
USB Cover
Holder
USB Unit
DC OUTPUT
Unit
AC INLET Unit
Jack Cover
SP-T Unit
