Sharp LC-52XS1E Service Manual

LC-52XS1E/RU/LC-65XS1E/RU
2 – 4

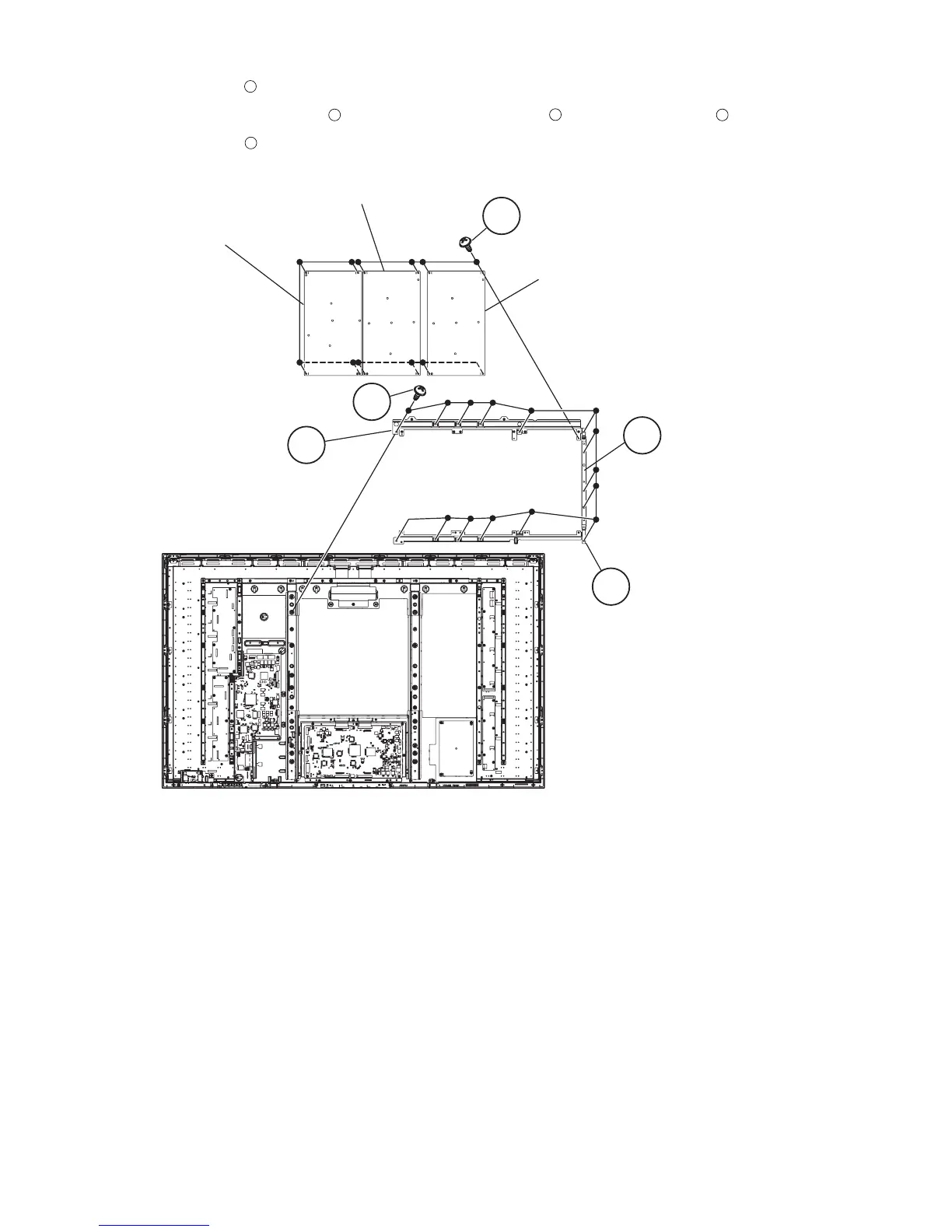

4. Removing of MAIN POWER Unit, SUB-1 POWER Unit and SUB-2 POWER Unit
1. Remove the 15 lock screws .
2. Detach the Power Unit Fix Angle Top Ass'y , Power Unit Fix Angle Bottom Ass'y and Power Unit Fix Angle .
3. Remove the 12 lock screws . Detach the MAIN POWER Unit, SUB-1 POWER Unit and SUB-2 POWER Unit.
1
2
3
4
5
5
1
2
4
3
MAIN POWER Unit
SUB-1 POWER Unit
SUB-2 POWER Unit
Power Unit Fix Angle
Top Ass'y
Power Unit Fix Angle
Bottom Ass'y
Power Unit
Fix Angle
