Sharp LC-52XS1E Service Manual

LC-52XS1E/RU/LC-65XS1E/RU
2 – 12

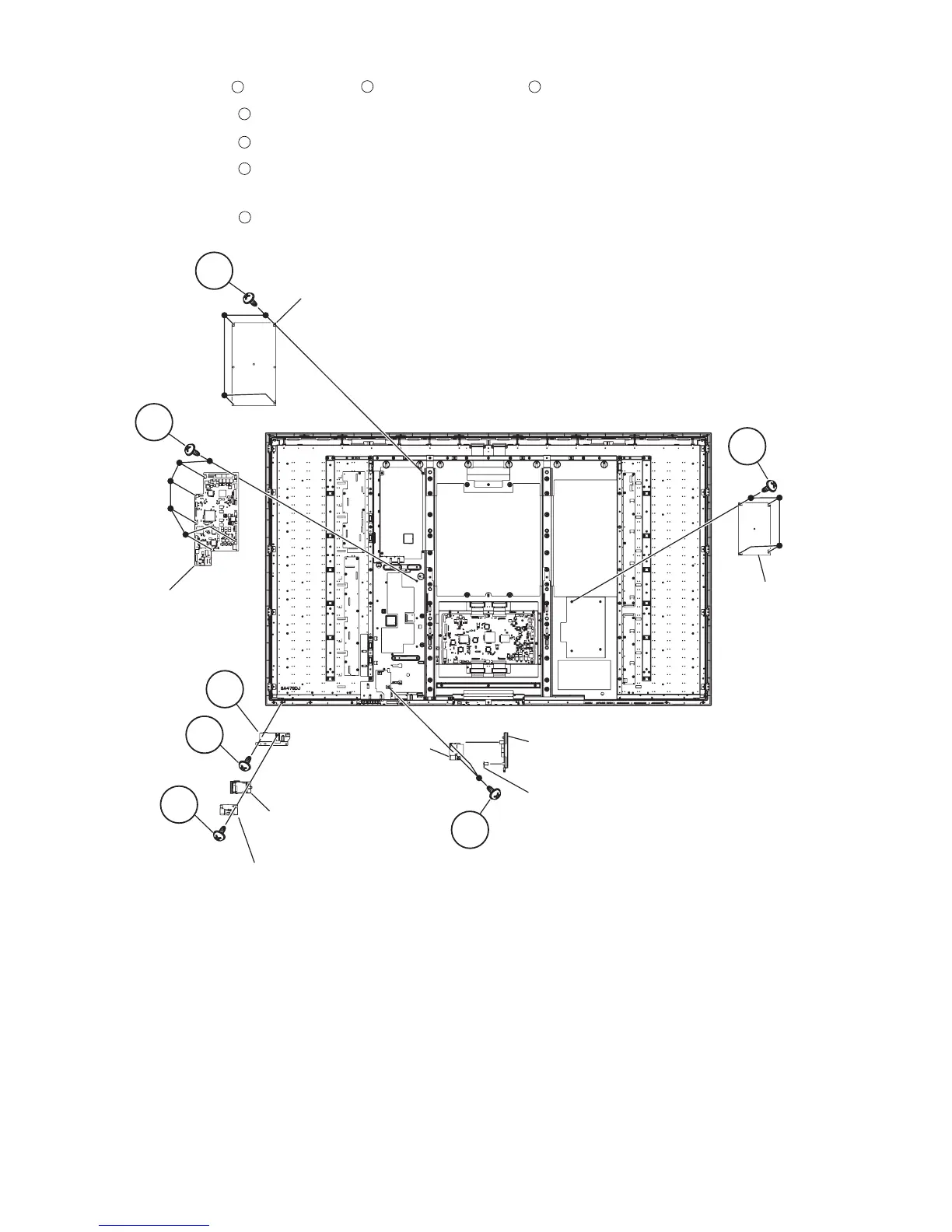

5. Removing of USB Unit, SUB-3 POWER Unit, SP-T Unit, DC OUTPUT Unit, IF Unit and AC INLET Unit
1. Remove the 1 lock screw and USB Fix Angle . Remove the 1 lock screw and detach the USB Unit from USB Cover Holder.
2. Remove the 4 lock screws and detach the SUB-3 POWER Unit.
3. Remove the 4 lock screws and detach the AC INLET Unit.
4. Remove the 2 lock screws and detach the SP-T Unit.
5. Detach the DC OUTPUT Unit from Jack Cover.
6. Remove the 6 lock screws and detach the IF Unit.
1
2
3
4
5
6
7
4
7
5
SUB-3 POWER Unit
IF Unit
1
2
3
USB Fix Angle
USB Cover Holder
USB Unit
6
DC OUTPUT Unit
Jack Cover
SP-T Unit
AC INLET Unit
