LC-52XS1E/RU/LC-65XS1E/RU
2 – 13
6. Removing of KEY Unit and LED Backlight Module

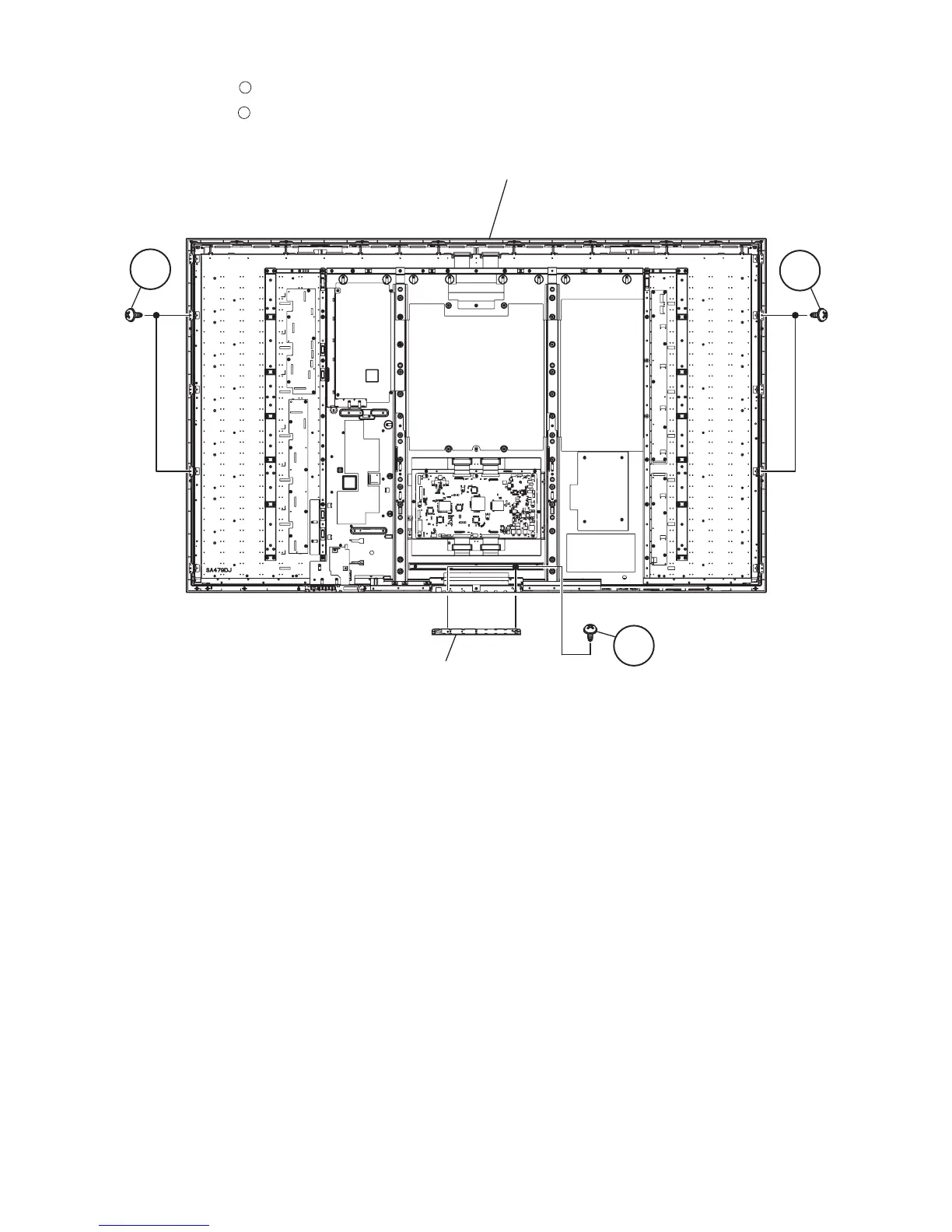

1. Remove the 2 lock screws and detach the KEY Unit.
2. Remove the 4 lock screws and detach the LED Backlight Module from Cabinet A Ass'y.
1
2
LED Backlight Module
2
2
KEY Unit
1
