LC-52XS1E/RU/LC-65XS1E/RU
2 – 14

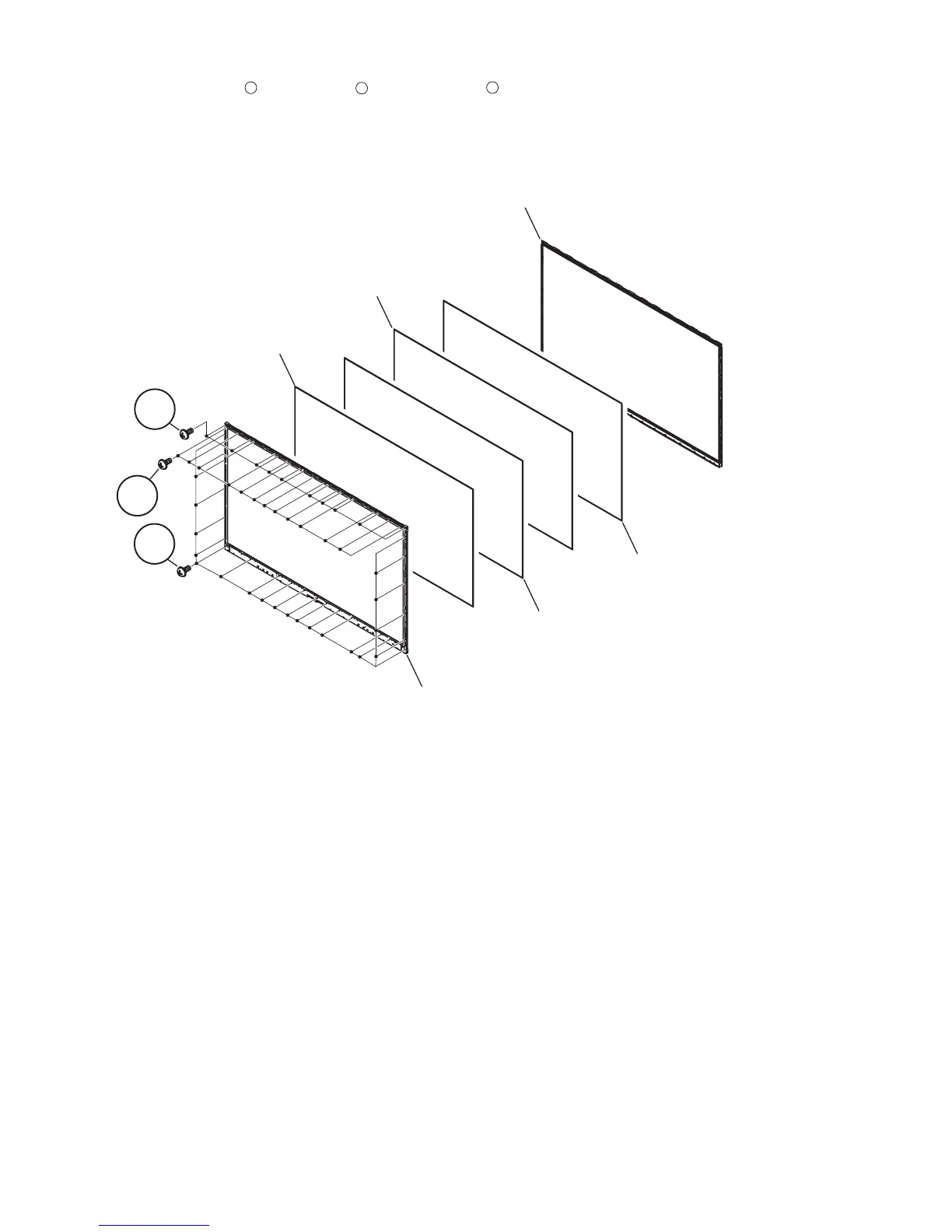

7. Removing of LCD Panel Module
1. Remove the 10 lock screws , 13 lock screws and 22 lock screws . Detach the 65' Full-HD LCD Panel module.
2. Detach the LED Backlight Module, Lens Sheet, Diffusion Sheet, BEF Sheet and D-BEF Sheet.
1
2
3
65' Full-HD LCD Panel module
LED Backlight Module
D-BEF Sheet
Lens Sheet
BEF Sheet
Diffusion Sheet
1
2
3
