LC-40/46/52/60LE810UN (1st Edition)
4 – 9

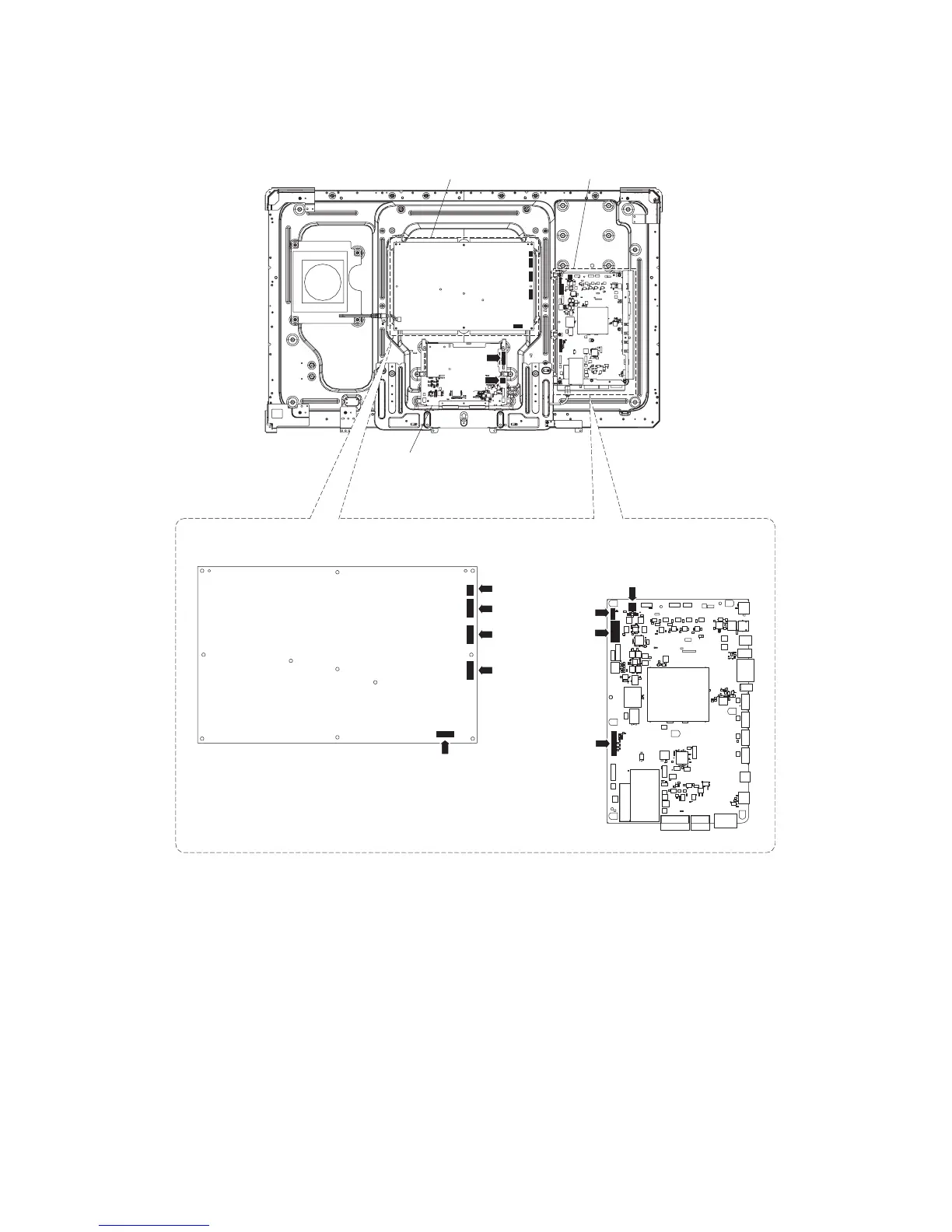

4. Removing of Connectors
1. Disconnect the following connectors from the MAIN Unit. (SB, LB, PD, LW)
2. Disconnect the following connectors from the POWER/ LED DRIVE Unit. (L1, L2, LB, PD, PL)
3. Disconnect the following connectors from the LCD Control Unit. (LW, PL)
[LW]
[PL]
MAIN UnitPOWER/LED DRIVE Unit
LCD Control Unit
[L1]
[L2]
[LB]
[PD]
MAIN UnitPOWER/LED DRIVE Unit
[PL]
[LB]
[PD]
[LW]
[SB]
