[4] REMOVING OF MAJOR PARTS (LC-60LE810UN)

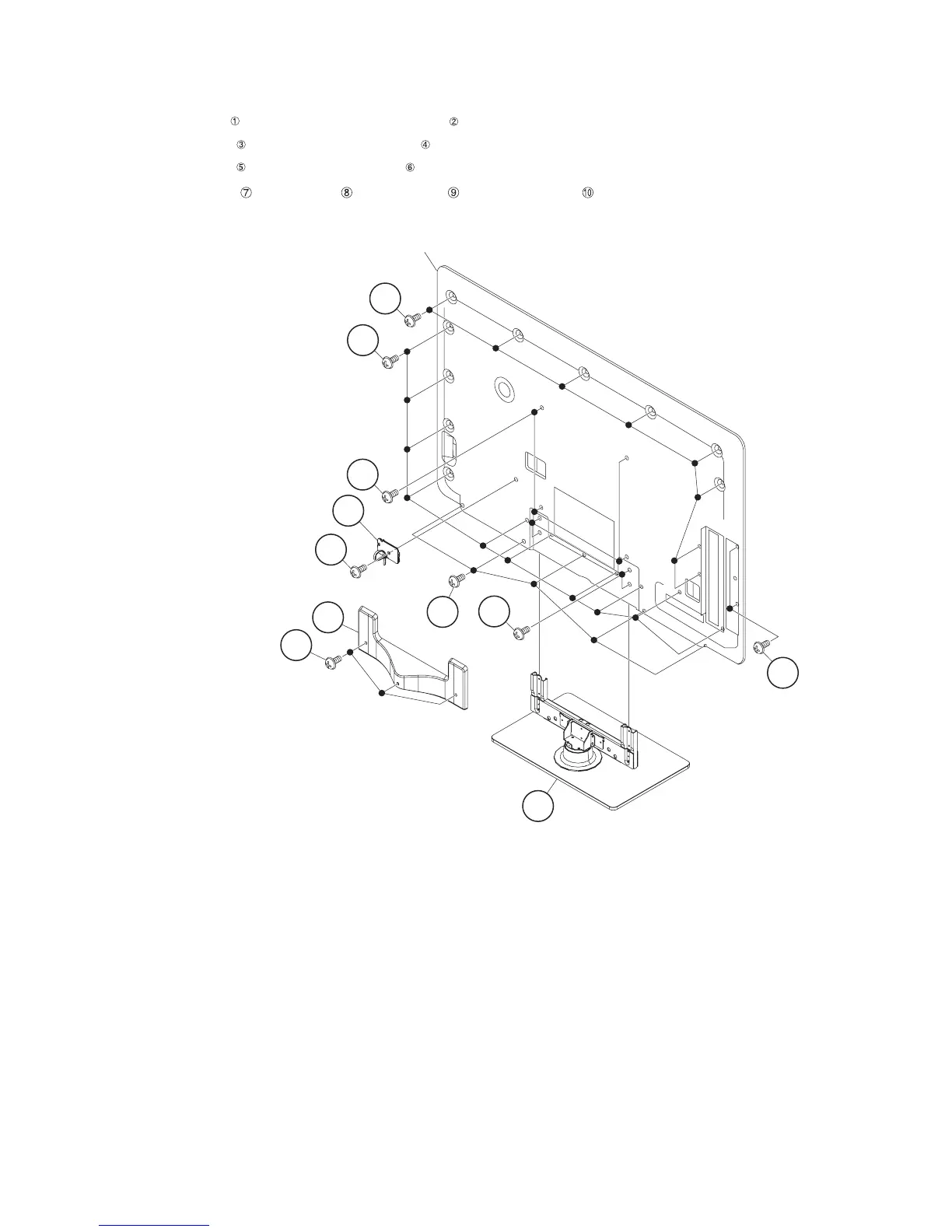

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the AC code cover Ass’y .
2. Remove the 3 lock screws and detach the Support Cover .
3. Remove the 4 lock screws and detach the Stand Ass’y .
4. Remove the 4 lock screws , 1 lock screw , 5 lock screws and 18 lock screws and detach the Rear Cabinet Ass’y.
Rear Cabinet Ass'y
6Stand Ass'y
4
3
Support Cover
2AC Cord Cover Ass'y
10
10
7
5
1
8
9
To Next Page
