LC-40/46/52/60LE810UN (1st Edition)
4 – 11
[3] REMOVING OF MAJOR PARTS (LC-52LE810UN)

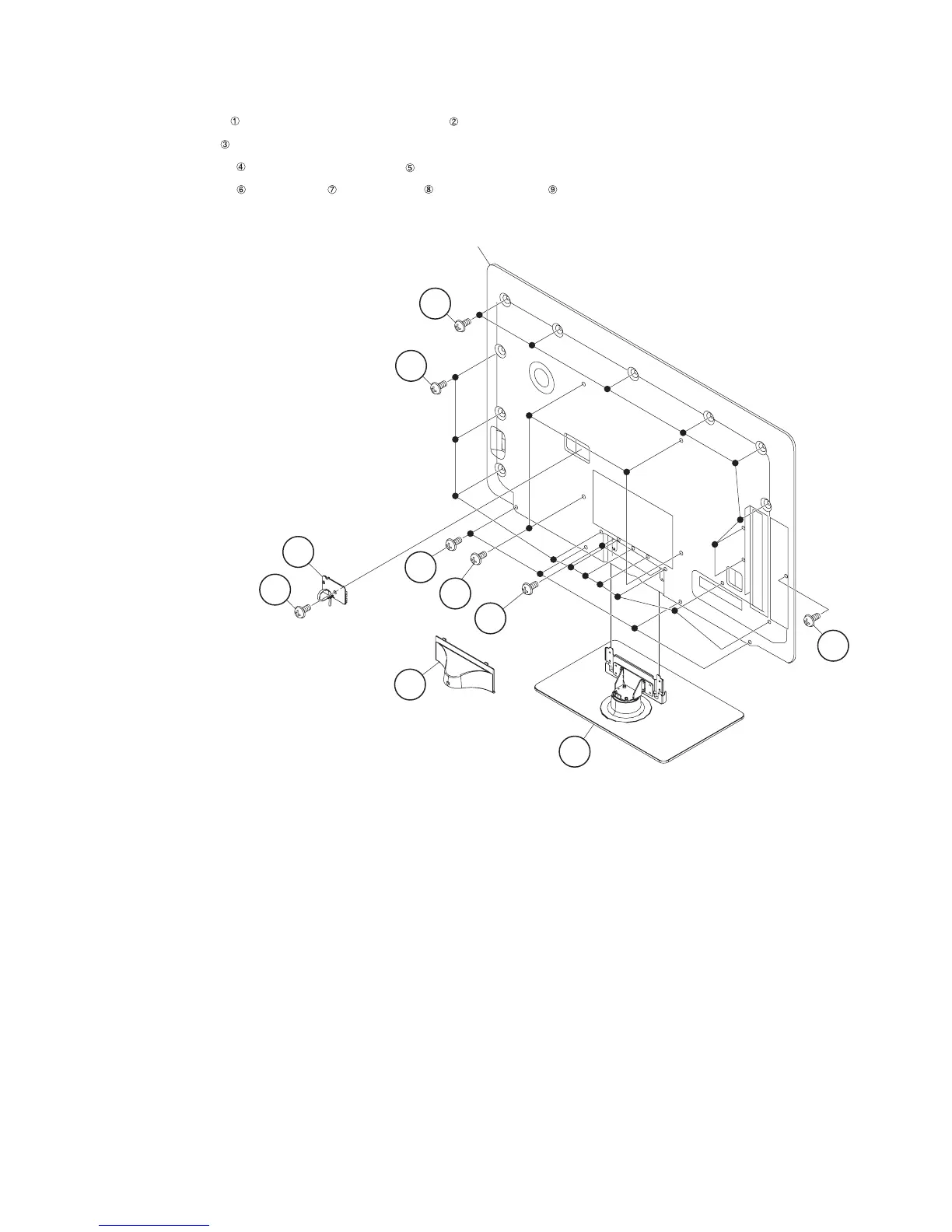

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the AC code cover Ass’y .
2. Detach the Stand cover .
3. Remove the 2 lock screws and detach the Stand Ass’y .
4. Remove the 4 lock screws , 1 lock screw , 4 lock screws and 18 lock screws and detach the Rear Cabinet Ass’y.
7
Rear Cabinet Ass'y
9
9
2AC Cord Cover Ass'y
1
3Stand Cover
5Stand Ass'y
8
6
4
