LC-40/46/52/60LE810UN (1st Edition)
4 – 3

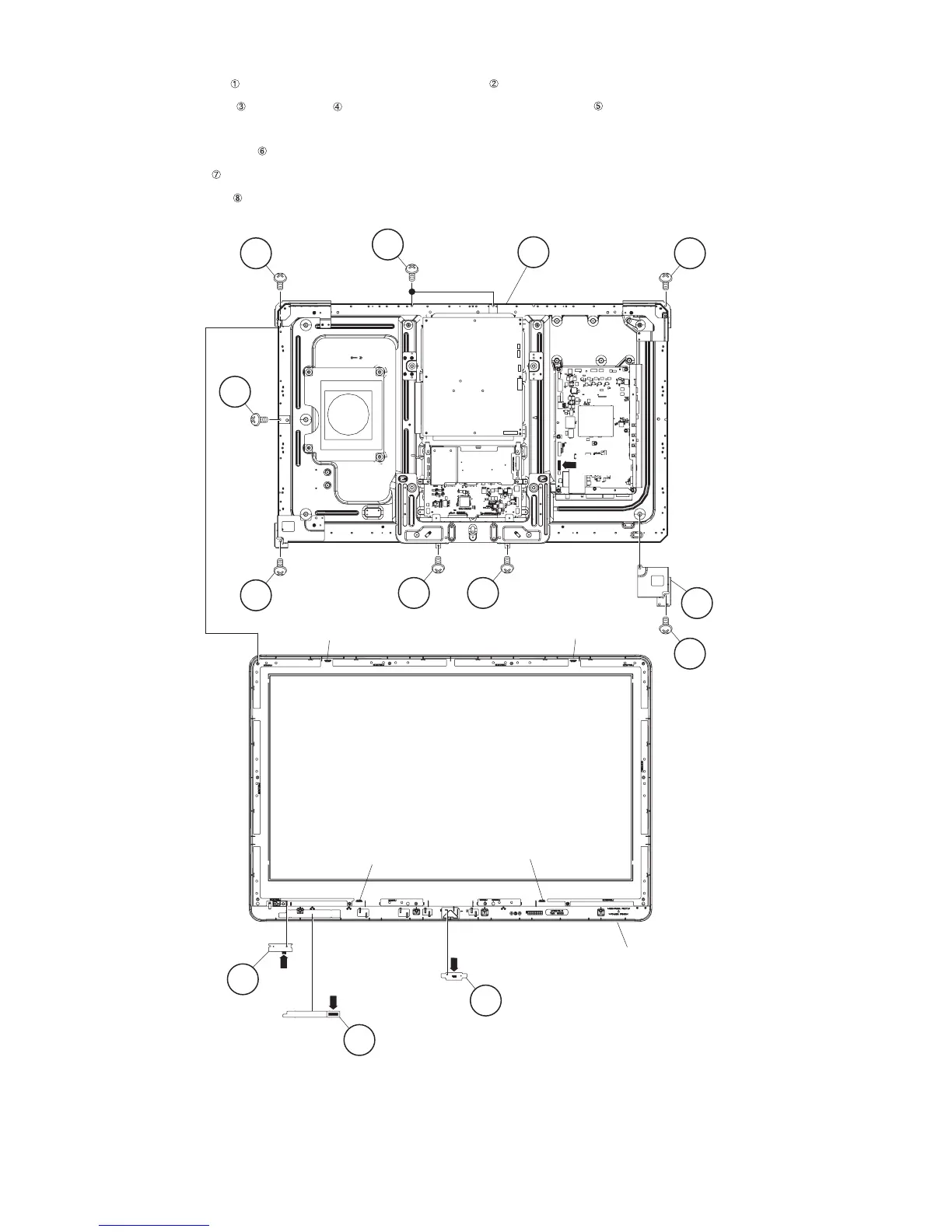

3. Removing of LCD Panel Module, TOUCH SENSOR Unit, ICON Unit, R/C, LED Unit, Front Cabinet Ass’y.
1. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-R .
2. Remove the 5 lock screws , 3 lock screws , 4 Hooks and detach the LCD Panel Module
3. Disconnect RA wire.
4. Disconnect Touch Sensor Unit .
5. Detach the ICON Unit .
6. Detach the R/C, LED Unit .
7 ICON Unit
8R/C,
LED Unit
6 TOUCH SENSOR Unit
5
LED Panel
Module
Front Cabinet Ass'y
3
4
4
3
3
3 3
1
[RI]
[RK]
[RA]
[RA]
2
Hook
Hook
Hook
Hook
LCD Fixing
Metal Angle B-R
