LC-40/46/52/60LE810UN (1st Edition)
4 – 1
LC-40LE810UN
Service Manual
CHAPTER 4. REMOVING OF MAJOR PARTS
[1] REMOVING OF MAJOR PARTS (LC-40LE810UN)

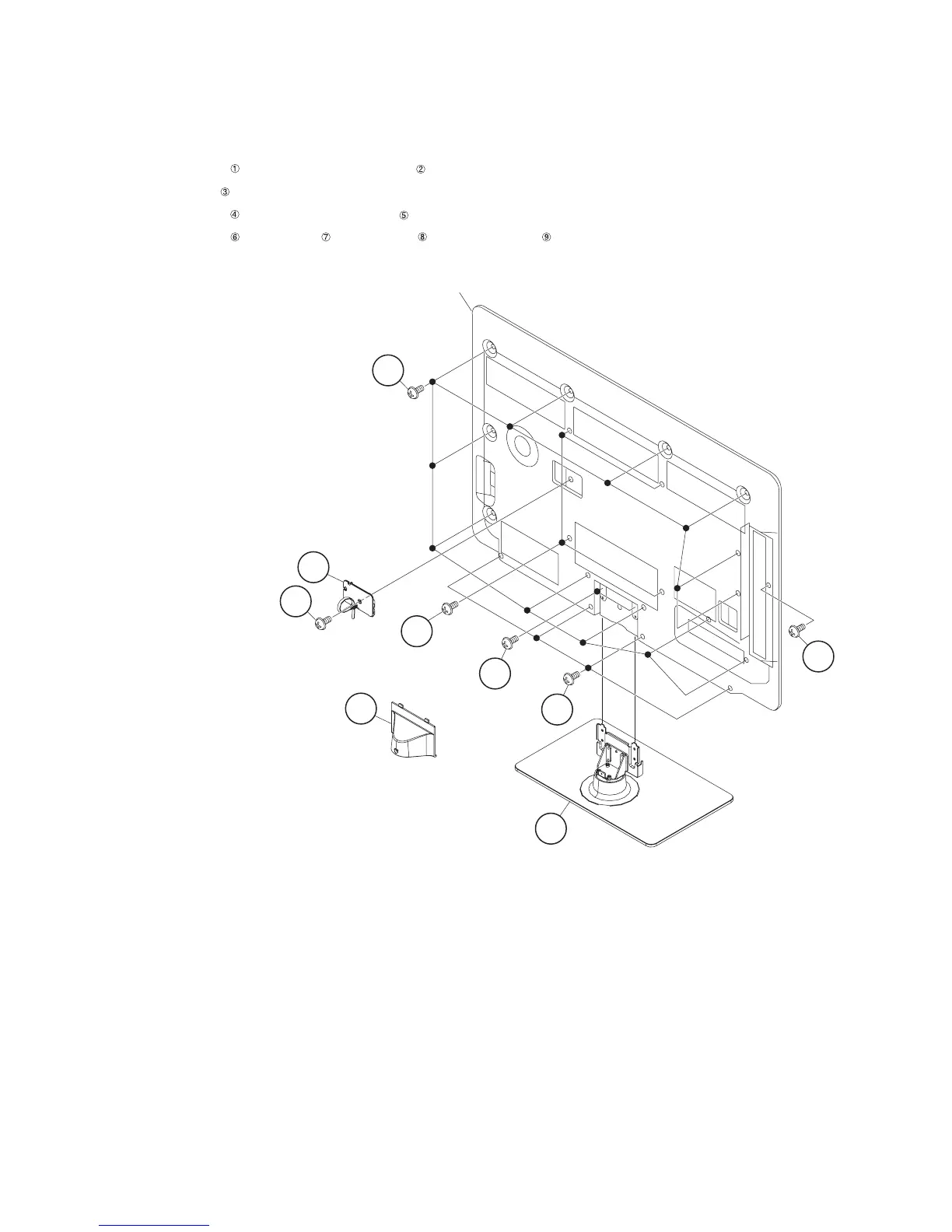

1. Removing of Stand Unit and Rear Cabinet Ass’y.
1. Remove the 1 lock screw and detach the AC code cover .
2. Detach the Stand cover .
3. Remove the 2 lock screw and detach the Stand Ass’y .
4. Remove the 4 lock screw , 1 lock screw , 4 lock screws and 12 lock screws and detach the Rear Cabinet Ass’y.
Rear Cabinet Ass'y
5Stand Ass'y
3Stand Cover
2AC Cord Cover Ass'y
9
1
8
4
6
7
