LC-40/46/52/60LE810UN (1st Edition)
2 – 1
LC-40LE810UN
Service Manual
CHAPTER 2. OPERATION MANUAL

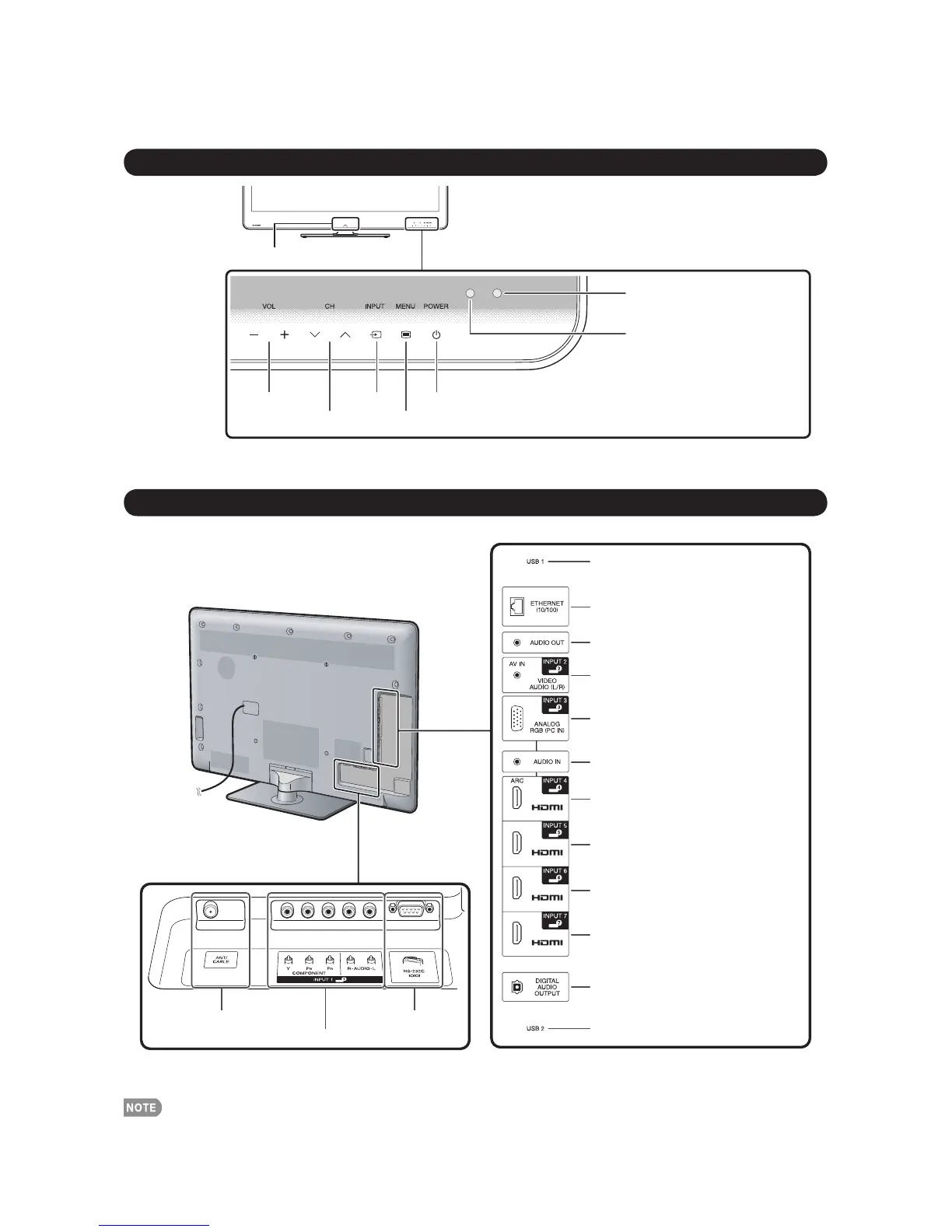

[1] Parts Name
TV (Front)
*1 OPC: Optical Picture Control
*2 Using the touch sensor panel.
Center Icon illumination
POWER *2INPUT
VOL
l
/
k
MENU
Remote control sensor
OPC sensor*1
CH
u
/
t
TV (Rear)
RS-232C terminalAntenna/Cable in
INPUT 1 terminals
DIGITAL AUDIO OUTPUT terminal
INPUT 6 terminal (HDMI)
INPUT 7 terminal (HDMI)
INPUT 4 terminal (HDMI)
ARC: Audio Return Channel
INPUT 3 terminal (PC-IN)
AUDIO IN terminal
(shared for INPUT 3 and INPUT 4) *2
INPUT 2 terminal
AUDIO OUT terminal
USB 1 terminal
USB 2 terminal
ETHERNET terminal
INPUT 5 terminal (HDMI)
*1
*1
*1 External equipment connection.
*2 Details on the Audio Select function.
• The illustrations in this operation manual are for explanation purposes and may vary slightly from the actual operations.
• The examples used throughout this manual are based on the LC-52LE810UN model.
To Next Page
