LC-40/46/52/60LE810UN (1st Edition)
4 – 15

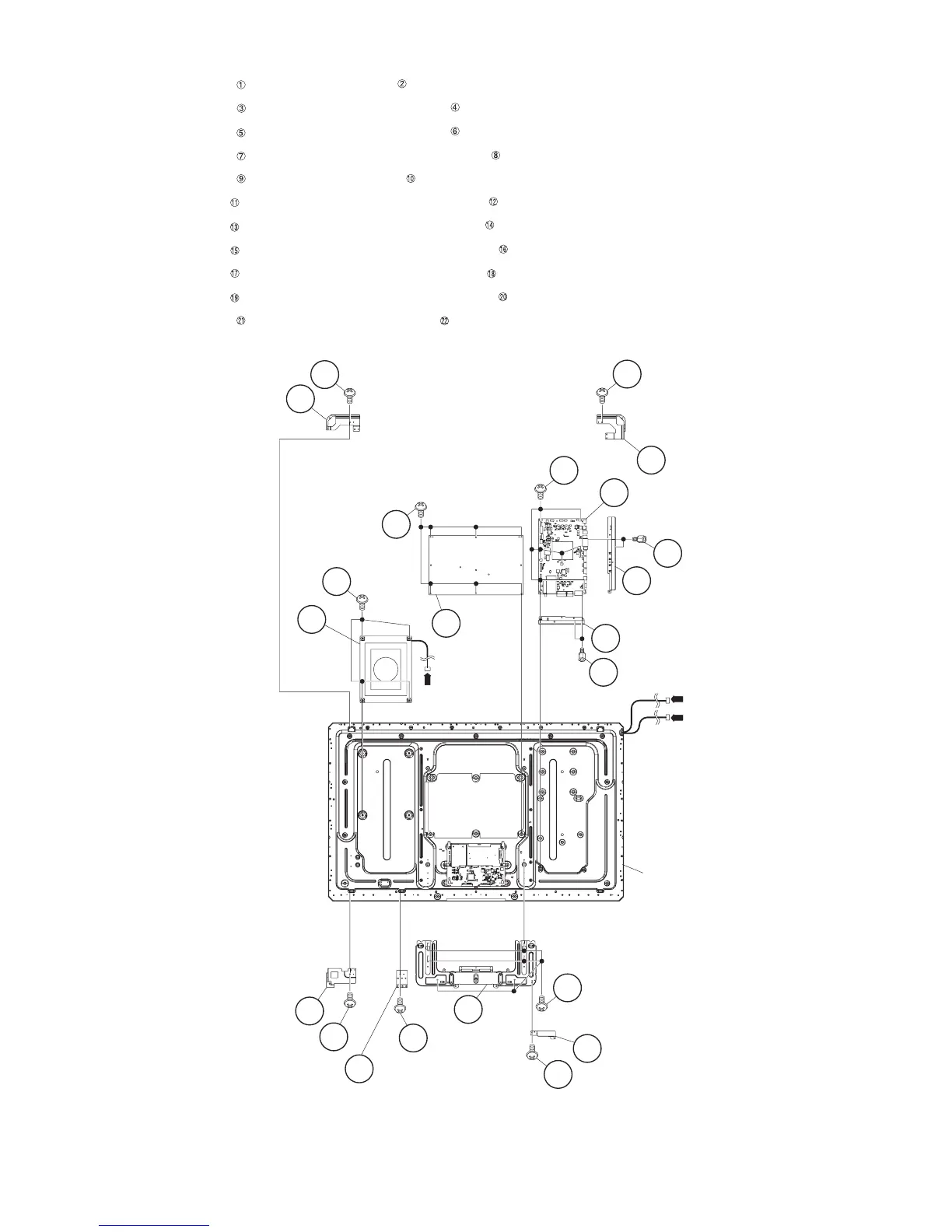

5. Removing of MAIN Unit, POWER/LED DRIVE Unit, Sub Woofer, Stand Angle Ass’y
1. Remove the 7 lock screws and detach the MAIN Unit
2. Remove the 2 lock screws and detach the TERMINAL Angle B .
3. Remove the 2 lock screws and detach the TERMINAL Angle S .
4. Remove the 6 lock screws and detach the POWER/LED DRIVER Unit .
5. Remove the 4 lock screws and detach the Sub Woofer .
6. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-R .
7. Remove the 1 lock screw and detach the LCD Fixing Metal Angle T-L .
8. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-MA .
9. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-L .
10.Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-MB .
11.Remove the 6 lock screws and detach the Stand Angle Ass’y .
