LC-40/46/52/60LE810UN (1st Edition)
4 – 13

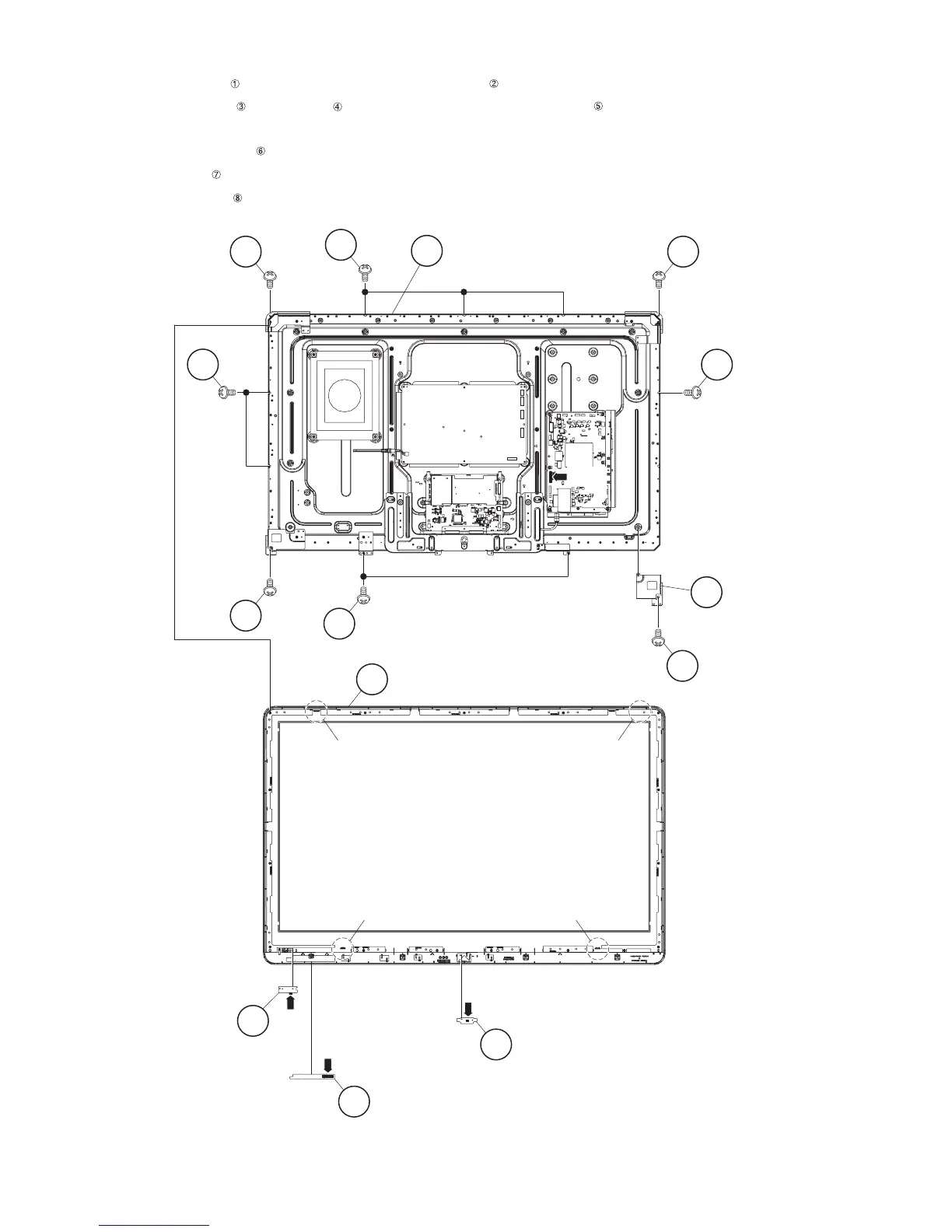

3. Removing of LCD Panel Module, TOUCH SENSOR Unit, ICON Unit, R/C, LED Unit, Front Cabinet Ass’y.
1. Remove the 1 lock screw and detach the LCD Fixing Metal Angle B-R .
2. Remove the 5 lock screws , 6 lock screws , 4 Hooks and detach the LCD Panel Module
3. Disconnect RA wire.
4. Detach the Touch Sensor Unit .
5. Detach the ICON Unit .
6. Detach the R/C, LED Unit .
[RA]
7 ICON Unit
8R/C,
LED Unit
6 TOUCH SENSOR Unit
9 Front Cabinet Ass'y
Hook Hook
Hook Hook
[RI]
[RK]
[RA]
1
2
LCD Fixing
Metal Angle
B-R
3
3
4
4
5
LCD Panel
Module
4
33
To Next Page
