LC-40/46/52/60LE810UN (1st Edition)
4 – 20

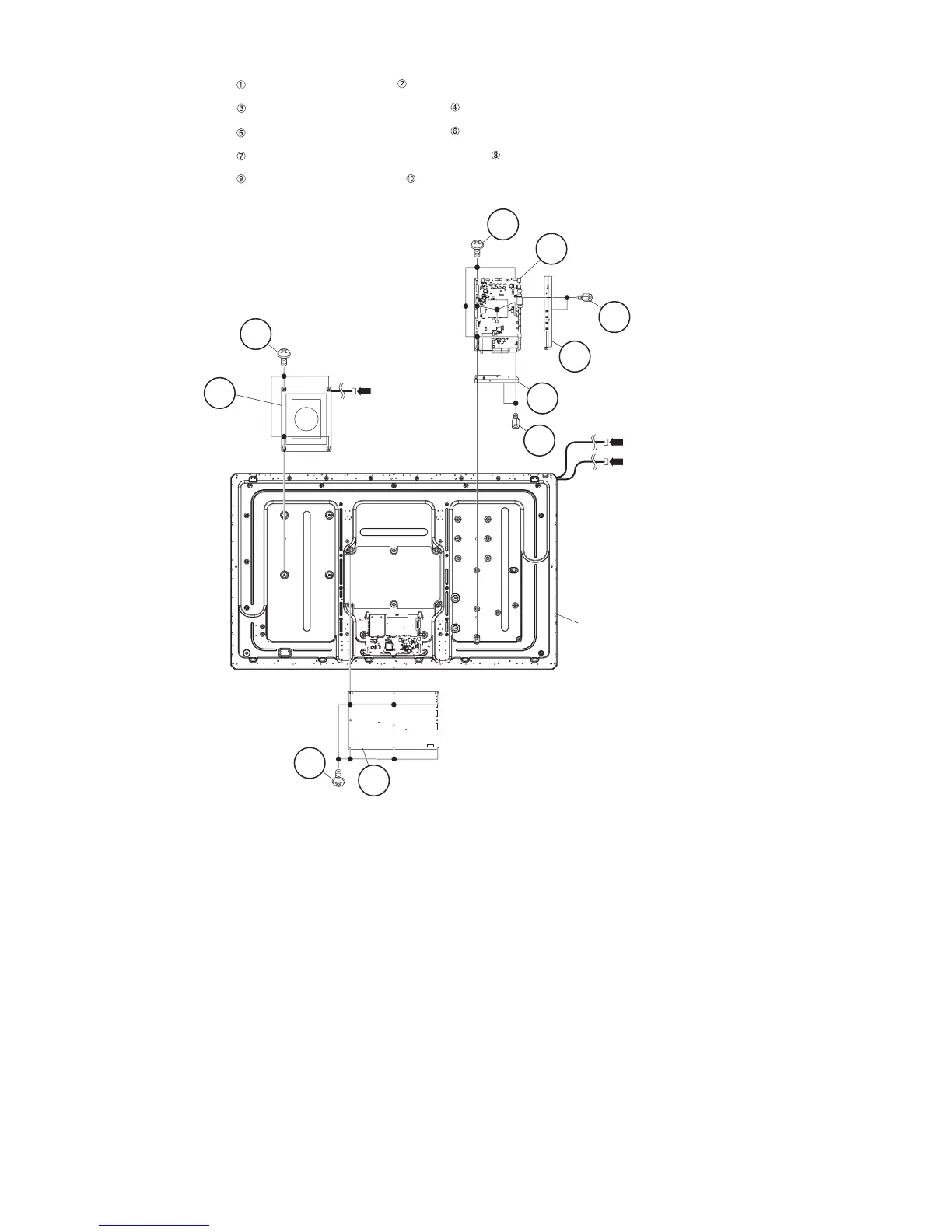

5. Removing of MAIN Unit, POWER/LED DRIVE Unit, Sub Woofer, Stand Angle Ass’y
1. Remove the 7 lock screws and detach the MAIN Unit
2. Remove the 2 lock screws and detach the TERMINAL Angle B .
3. Remove the 2 lock screws and detach the TERMINAL Angle S .
4. Remove the 6 lock screws and detach the POWER/LED DRIVER Unit .
5. Remove the 4 lock screws and detach the Sub Woofer .
[L1]
[L2]
LCD Panel
Module
9
10
SUB
Woofer
[SB]
8 POWER/LED
DRIVE
Unit
7
3
5
4 TERMINAL Angle B
6 TERMINAL Angle S
2 MAIN Unit
1
