Sharp LC-60LE810UN User Manual

LC-40/46/52/60LE810UN (1st Edition)
5 – 10
8.2.3 Composite N358 signal/tuner adjustment
8.2.4 Component 15K signal adjustment
8.2.5 COMPONENT 33K signal adjustment
8.2.6 Analog RGB signal adjustment
Adjustment point Adjustment conditions Adjustment procedure
1 Setting N358 signal
US-10ch
•Send the N358 color bar (color saturation: 75%) signal to the Video 2 video input.
•Send the in-house signal (use US-10ch) to TUNER.
2 Automatic adjustment exe-
cution
Point the cursor to [ N358 ALL ADJ(INPUT2)] and press the [Enter] key.
The adjustment is complete when [ N358 ALL ADJ(INPUT2) OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting 480i signal •Send the 100% color bar signal to the Video 1 component input.
2 Automatic adjustment exe-
cution
Point the cursor to [ COMP15K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ COMP15K ADJ(INPUT1) OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting 1080i signal •Send the 100% color bar signal to the Video 1 component input.
2 Automatic adjustment exe-
cution
Point the cursor to [ COMP33K ADJ(INPUT1)] and press the [Enter] key.
The adjustment is complete when [ COMP33K ADJ(INPUT1) OK] is displayed.
Adjustment point Adjustment conditions Adjustment procedure
1 Setting Signal: XGA
(1024x768) 60Hz
SYNC: HV separate
•Send the 100% color bar signal to the Video 4 analog RGB input.
2 Automatic adjustment exe-
cution
Point the cursor to [ ANALOG RGB ADJ] and press the [Enter] key.
The adjustment is complete when [ ANALOG RGB ADJ OK] is displayed.

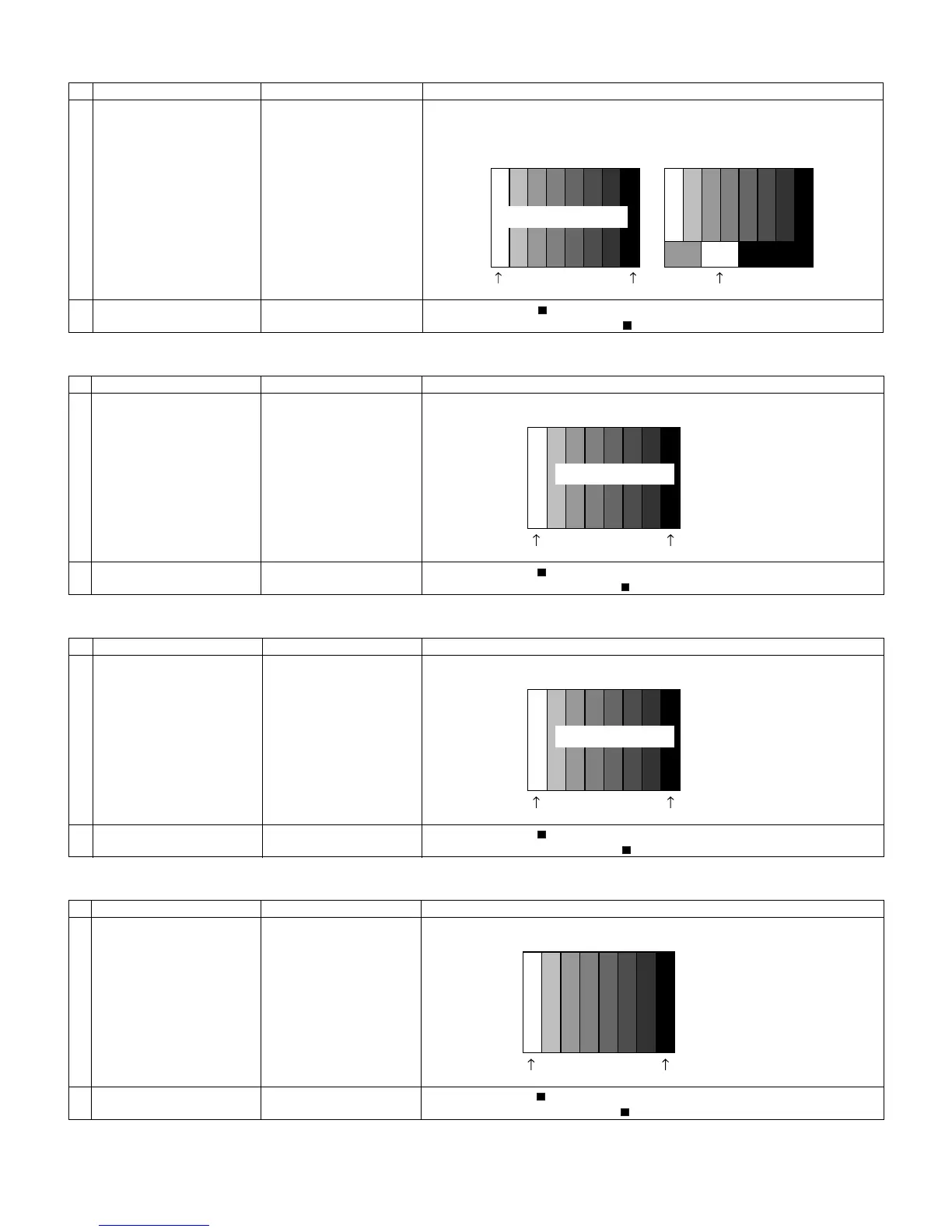

[Video input signal] [In-house US-10ch]
100% white 100% white0% black
Color saturation: 75%
100% white 0% black
480i
100% color bar
Color saturation: 100%
100% white 0% black
1080i
100% color bar
Color saturation: 100%
100% white 0% black
XGA (1024x768)
100% color bar
