Before turning on the power
Notes on installing the TV
• Avoid direct sunlight and place the TV in a well-ventilated location.
• Place the TV in a level location.
• Do not turn on the power of the TV before connecting the AC cord.
• If there are any protective plastic sheets on the TV cabinet, please take them off before connecting.
• TO PREVENT RISK OF ELECTRIC SHOCK, DO NOT TOUCH UN-INSULATED PARTS OF ANY CABLES WITH THE
AC CORD CONNECTED.
Before turning on the power
1
AC cord

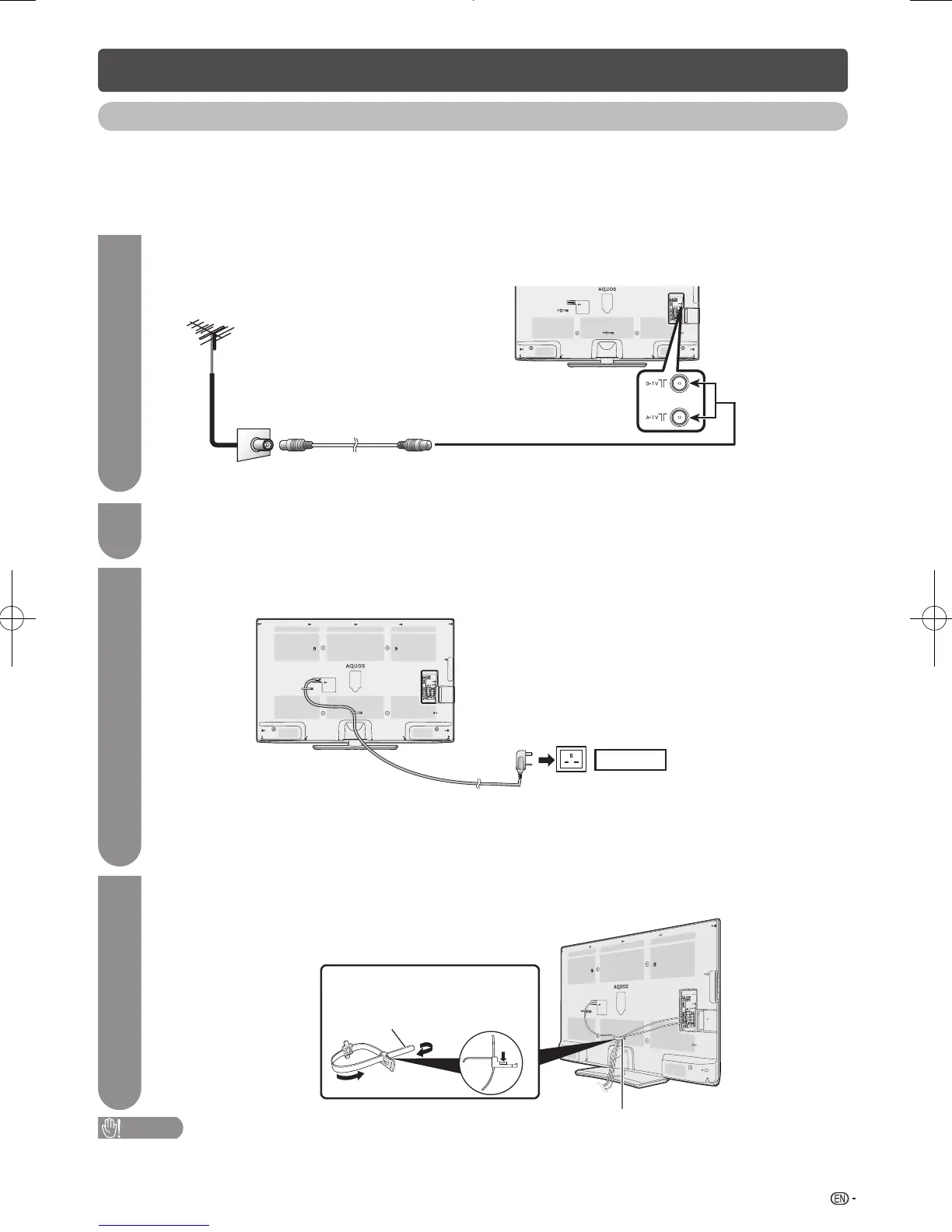

Connecting the AC cord
AC outlet
• Place the TV close to the AC outlet, and keep the power plug within reach.
• Disconnect the AC cord from the AC outlet if the TV will not be used for a long period of time.
TV (rear view)
Connecting the antenna cable
To enjoy a clearer picture, use an outdoor antenna. The following is a brief explanation of the types of
connections that are used for coaxial cable.
Standard DIN45325 plug (IEC169-2)
75-ohm coaxial cable (round cable)
Room antenna terminal
(75-ohm type)
Antenna cable (commercially available)
To antenna terminal
Connecting external devices
See page 8 for connecting external equipment, such as a VCR and DVD player.
2
3
Cable clamp
Bundling the cables
As the picture illustrated, put the cable into the cable clamp for banding.
4
Ŀ
'JY"$DPSEBOEPUIFSXPSFTXJUIBXPSFIPMEFS
ŀ
1VMMUIFCBOEUISPVHIUIFIPMEUPBEKVTUUIFEFHSFF
PGUJHIUOFTT
5PMPPTFOUIFXJSFIPMEFS
QSFTTUIFCVJUPO
*GUIFCBOEJTUPPMPOH
QVMMJUUISPVHIUIFPUIFSIPMF
To Next Page
