44

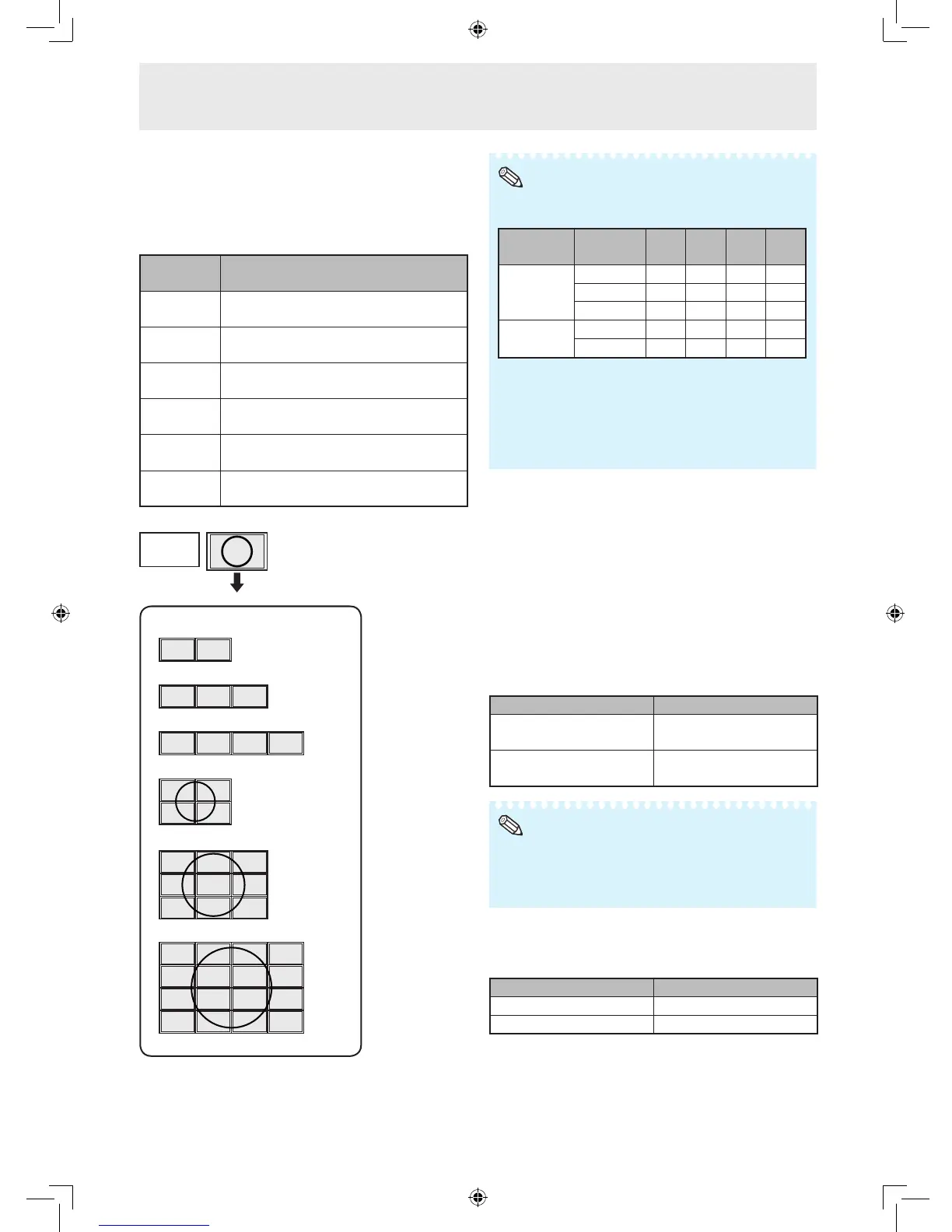

Multi Screen
You can align 2, 3, 4, 9, or 16 monitors and integrate
them into a single large screen to display.
Enlarged views of separated images are displayed
in each monitor.
Selectable
items
Description
Status Sets the number of screen splits used
for the enlargement.
Position Specify the split screen to be
displayed when this function is used.
H-Bezel
V-Bezel
Sets the frame width of the display
when this function is used.
H-Position Adjust the horizontal position of the
enlarged screen.
V-Position Adjust the vertical position of the
enlarged screen.
Reset Resets all adjustment items to factory
preset values.
Original
2 monitors (2x1)
1−1 2−1
3 monitors (3x1)
1−1 2−1 3−1
4 monitors (4x1)
1−1 2−1 3−1 4−1
4 monitors (2x2)
1−1 2−1
1−2 2−2
9 monitors (3x3)
1−1 2−1 3−1
1−2 2−2 3−2
1−3 2−3 3−3
16 monitors (4x4)
1−1 2−1 3−1 4−1
1−2 2−2 3−2 4−2
1−3 2−3 3−3 4−3
1−4 2−4 3−4 4−4
• The availability of Multi Screen modes depending on the
video signal is as follows.
Input
Mode
Video
Signal
3x1 4x1 3x3 4x4
S-VIDEO
VIDEO
NTSC N/A N/A N/A N/A
PAL N/A N/A N/A N/A
SECAM N/A N/A N/A N/A
Computer1
Computer2
480I N/A N/A
576I N/A
N/A: Not Available
• “Status” and “Position” may not be selected depending
on the input signal.
• Depending on the number of monitors and/or the input
signal, a distributor for the input signal (commercially
available) is required. For details, refer to the “SETUP
MANUAL”.
Power On Delay
You can delay the screen display after the monitor is
turned on. The period can be set up to 100 seconds
in units of 1 second. When this function is activated,
the POWER indicator flashes (at approx. 1 second
interval) in orange. This function is disabled when 0
is specified.
LED
Specifies whether to light the indicators (POWER,
TIMER, and OPC).
Selectable items Description
On According to the setting,
the indicators light up.
Off The indicators do not
light up.
• Even if “LED” is set to “Off”, the POWER indicator lights
red in standby mode.
• When backlight and/or temperature problems occur, the
TIMER indicator fl ashes red, even if “LED” is set to “Off”.
To Next Page
