Specifi cations
Power management
This monitor conforms to VESA DPMS and DVI DMPM. Both your video card and computer must support
the same standard in order for the monitor’s power management function to work.
DPMS: Display Power Management Signaling
DPMS Screen
Power consumption Hsync Vsync
ON STATE Display
312 W (TL-M5200)
278 W (TL-M4600)
Ye s Ye s
STANDBY
No
display
1.7 W* (at AC 120 V)
2.0 W* (at AC 240 V)
No No
DMPM: Digital Monitor Power Management
DMPM Screen Power consumption
Monitor ON Display
312 W (TL-M5200)
278 W (TL-M4600)
Active OFF No display
1.9 W* (at AC 120 V)
2.1 W* (at AC 240 V)
* When “Standby Mode” is set to “Mode2”.
33 W when “Standby Mode” is set to “Mode1”.
(TL-M5200)
30 W when “Standby Mode” is set to “Mode1”.
(TL-M4600)
DDC (plug and play)
The monitor supports the VESA DDC (Display Data Channel) standard.
DDC is a signal standard for plug and play between monitors and computers. Information about resolution
and other parameters is exchanged between the two. This function can be used if the computer supports
DDC and it has been configured to detect plug-and-play monitors.
There are several types of DDC, depending on the communication method used. This monitor supports
DDC2B.

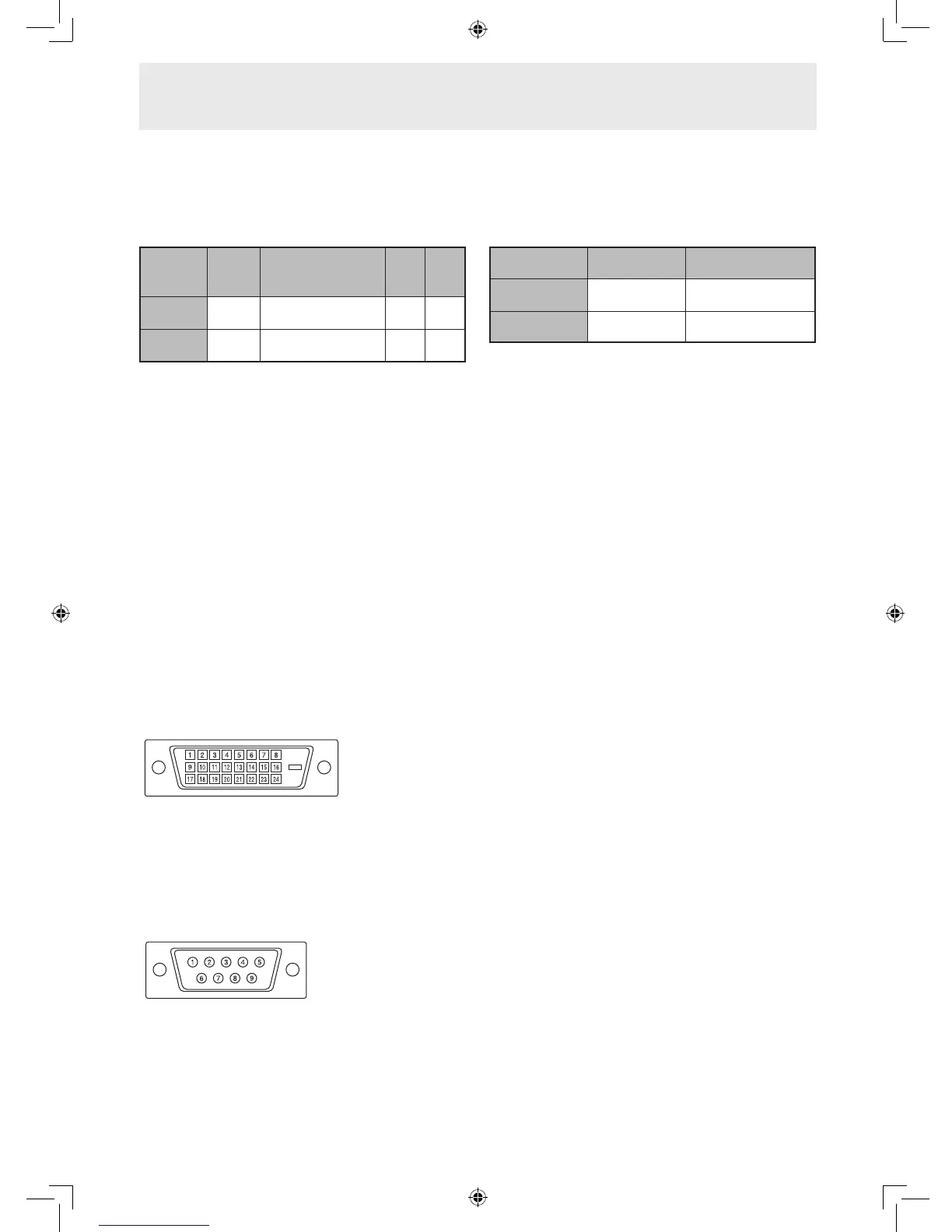

Connecting pin assignments
DVI-D input terminal: DVI-D 24 pin
Pin No. Signal Pin No. Signal
1 T.M.D.S data 2- 13 Not connected
2 T.M.D.S data 2+ 14 +5 V power
3 T.M.D.S data 2/4 shield 15 GND
4 Not connected 16 Hot plug detection
5 Not connected 17 T.M.D.S data 0-
6
DDC clock
18
T.M.D.S data 0+
7 DDC data 19 T.M.D.S data 0/5 shield
8 Not connected 20 Not connected
9 T.M.D.S data 1- 21 Not connected
10 T.M.D.S data 1+ 22 T.M.D.S clock shield
11 T.M.D.S data 1/3 shield 23 T.M.D.S clock+
12 Not connected 24 T.M.D.S clock-
RS-232C terminal: D-sub 9 pin
Pin No. Signal Pin No. Signal
1 Not connected 6 Not connected
2 Received data 7 Request to Send
3 Transmitted data 8 Clear to Send
4 Not connected 9 Not connected
5 GND
