Sharp MX-4101N

MX-5001N EXTERNAL VIEW AND INTERNAL STRUCTURE 4 – 13

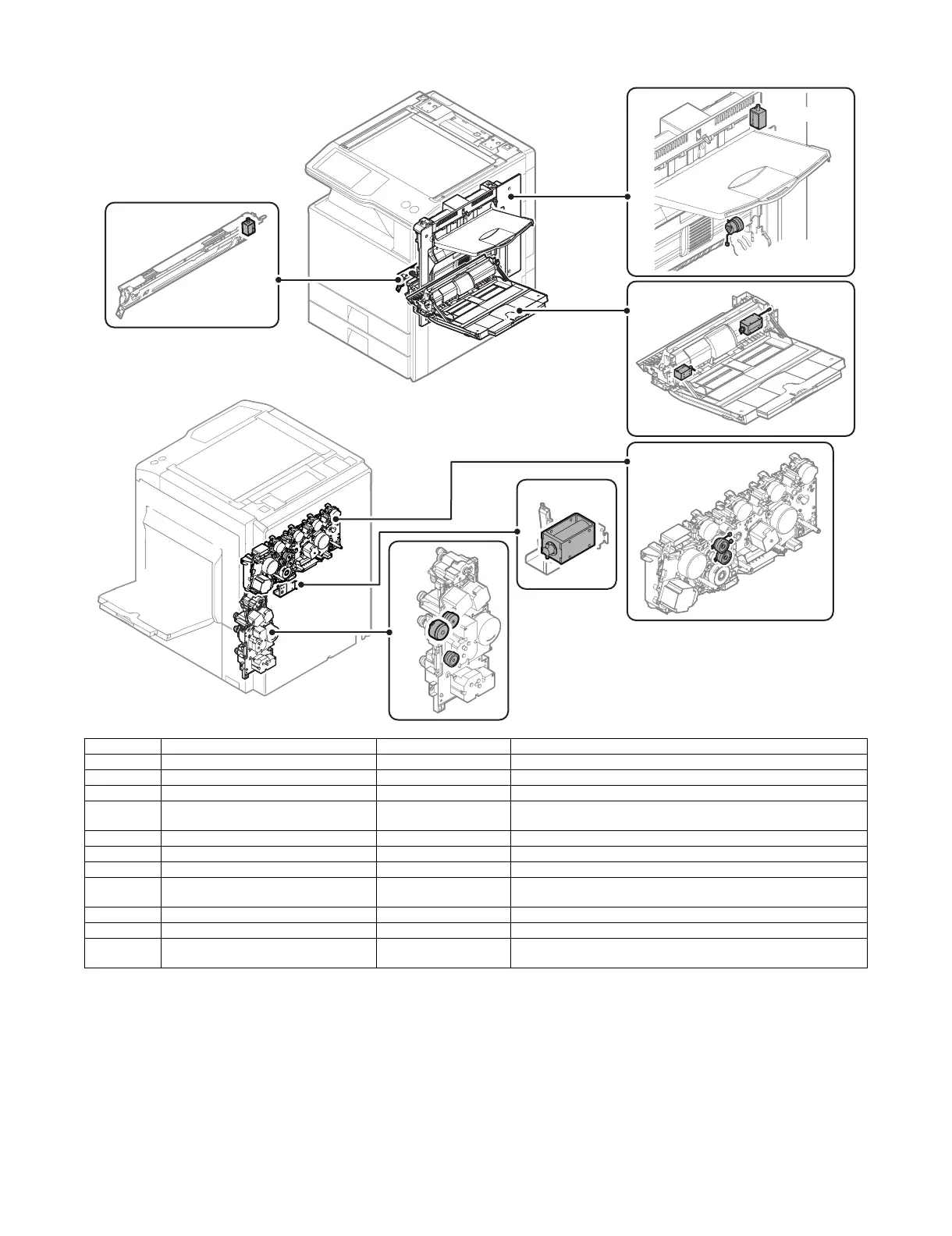

K. Clutches and solenoids
Signal name Name Type Function/Operation
1TURC Primary transfer separation clutch Electromagnetic clutch Controls the primary transfer separation mode.
1TURC_R Primary transfer separation reverse clutch Electromagnetic clutch Controls the primary transfer separation mode.
ADUGS ADU gate solenoid Electromagnetic solenoid Controls the ADU gate.
CPFC Tray vertical transport clutch Electromagnetic clutch Controls ON/OFF of the paper transport roller in the paper feed tray
section.
CPUC1 Paper feed clutch (Paper feed tray 1) Electromagnetic clutch Controls ON/OFF of the roller in the paper feed tray 1 section.
CPUC2 Paper feed clutch (Paper feed tray 2) Electromagnetic clutch Controls ON/OFF of the roller in the paper feed tray 2 section.
LSUSS_B LSU shutter solenoid 1 Electromagnetic solenoid Opens/closes the LSU shutter.
MPFS Paper pickup solenoid
(Manual paper feed)
Electromagnetic solenoid Paper pickup solenoid (Manual paper feed)
MPGS Manual paper feed gate solenoid Electromagnetic solenoid Controls the manual paper feed gate Open/Close.
MPUC Manual paper feed clutch Electromagnetic clutch Controls the manual paper feed section paper feed roller ON/OFF.
PCSS Process control shutter solenoid Electromagnetic solenoid Opens/closes the shutter of the process control and the registration
sensor.
MPGS
MPGS
1TURC_R1TURC_R
1TURC1TURC
CPLC1
CPUC1
CPLC2
CPUC2
CPFC
CPFC
MPFS
MPFS
MPUC
MPUC
PCSS
PCSS
LSUSS_B
ADUGS
