MX-5001N MAINTENANCE 8 – 36
I. Paper transport section
✕: Check (Clean, replace, or adjust according to necessity.) {: Clean S: Replace U: Adjust ✩: Lubricate

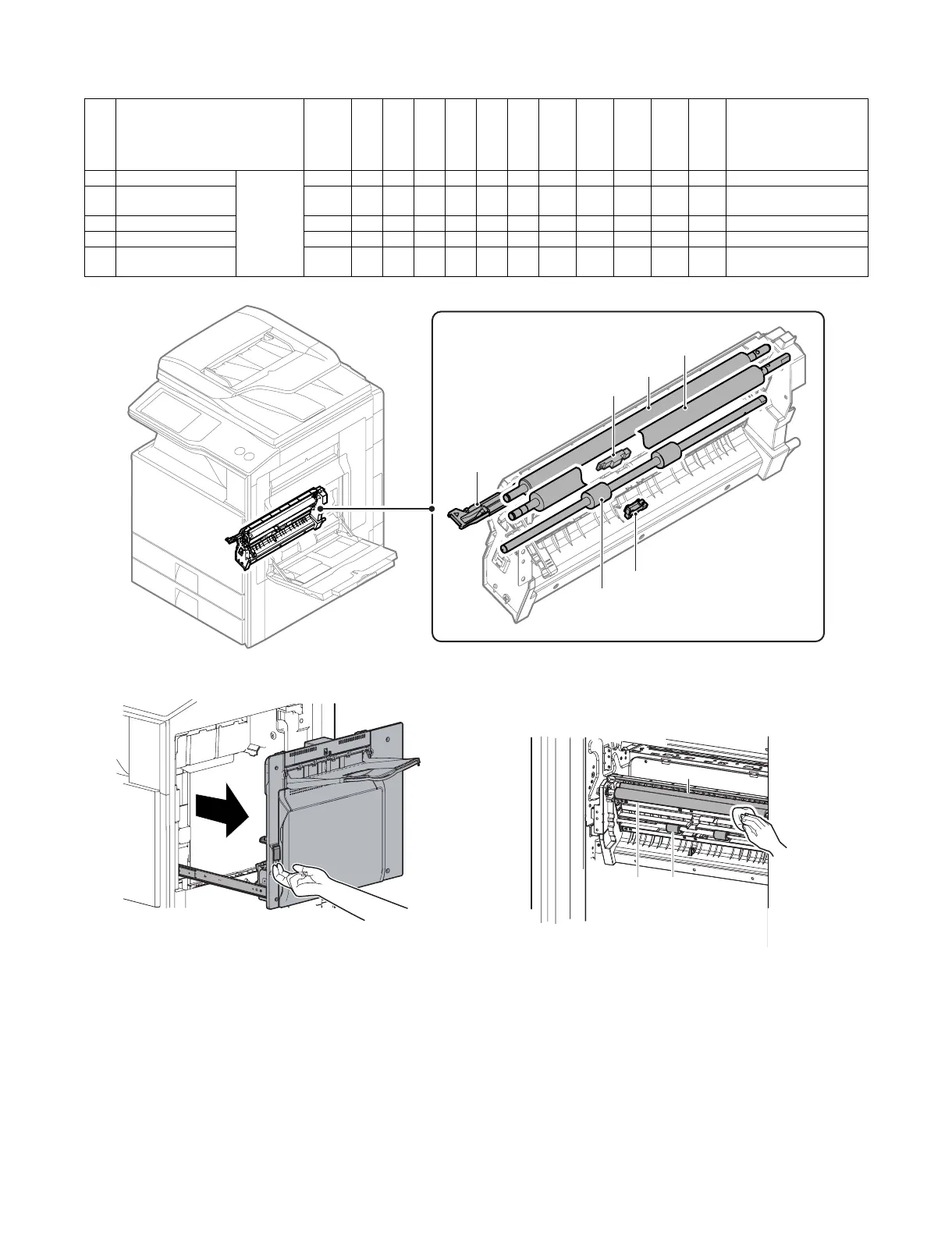

1) Open the right door. 2) Clean the resist roller (Idle) (A), resist roller (Drive) (B) and the
transport roller 8 (Drive) (C).
Maintenance: Clean at every 150K.
No. Part name
When
calling
150
k
300
k
450
k
600
k
750
k
900
k
1050
k
1200
k
1350
k
1500
k
1650
k
Remark/Refer to the
Parts Guide.
Block/Item No.
(Only the replacement
parts are described.)
1 PS follower roller Mechanical
parts
✕ {{{{{{ {{{{{
2 Paper dust removing
unit
{ SSSSSSSSSSS(P/G No.: [25]-58)
3 Transport rollers ✕ {{{{{{ {{{{{
4Sensors ✕ ✕✕✕✕✕✕✕✕✕✕✕
5 Transport paper
guides
{ {{{{{{ {{{{{
1
3
3
4
4
2
A
B
C
