Sharp MX-4101N Service Manual

MX-5001N PWB SECTION P – 5

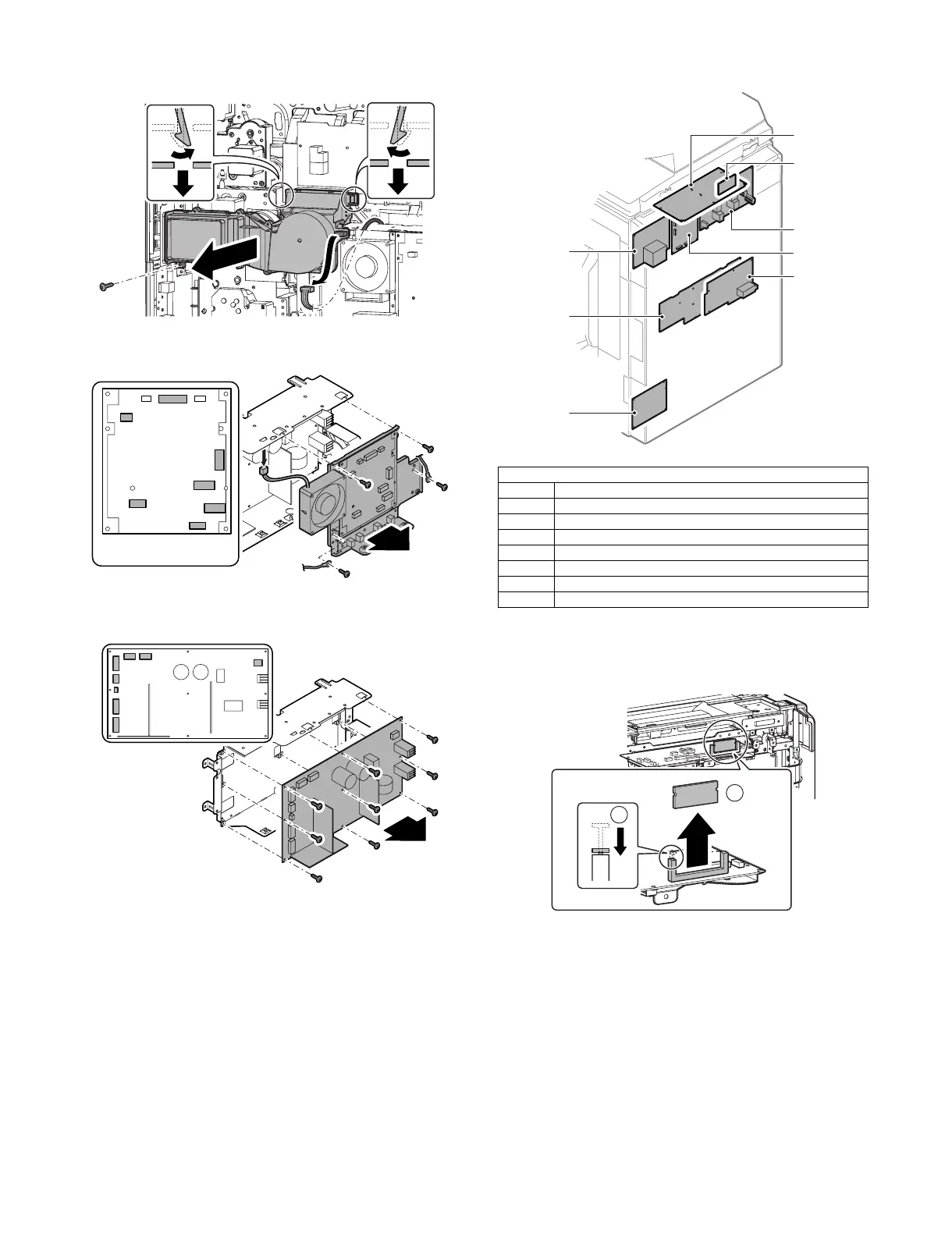

3) Remove the screw and disconnect the connector, and remove
the filter box unit.
4) Remove the screw, the reactor and the AC cord unit and dis-
connect the connector, and remove the AC power PWB unit.
5) Remove the screw and disconnect the connector, and remove
the DC power PWB.
C. Others
(1) SCN Flash ROM PWB/Scanner control PWB
1) Remove the upper cabinet rear cover.
2) Release the lock, and remove the SCN Flash ROM PWB.
Parts
a SCN Flash ROM PWB
b Scanner control PWB
cHL PWB
d Secondary transfer PWB
e Driver main PWB
f Driver sub PWB
g Primary transfer PWB
hMC PWB
a
g
h
f
e
d
c
b
1
2
