Sharp MX-4101N

MX-5001N MAINTENANCE 8 – 47

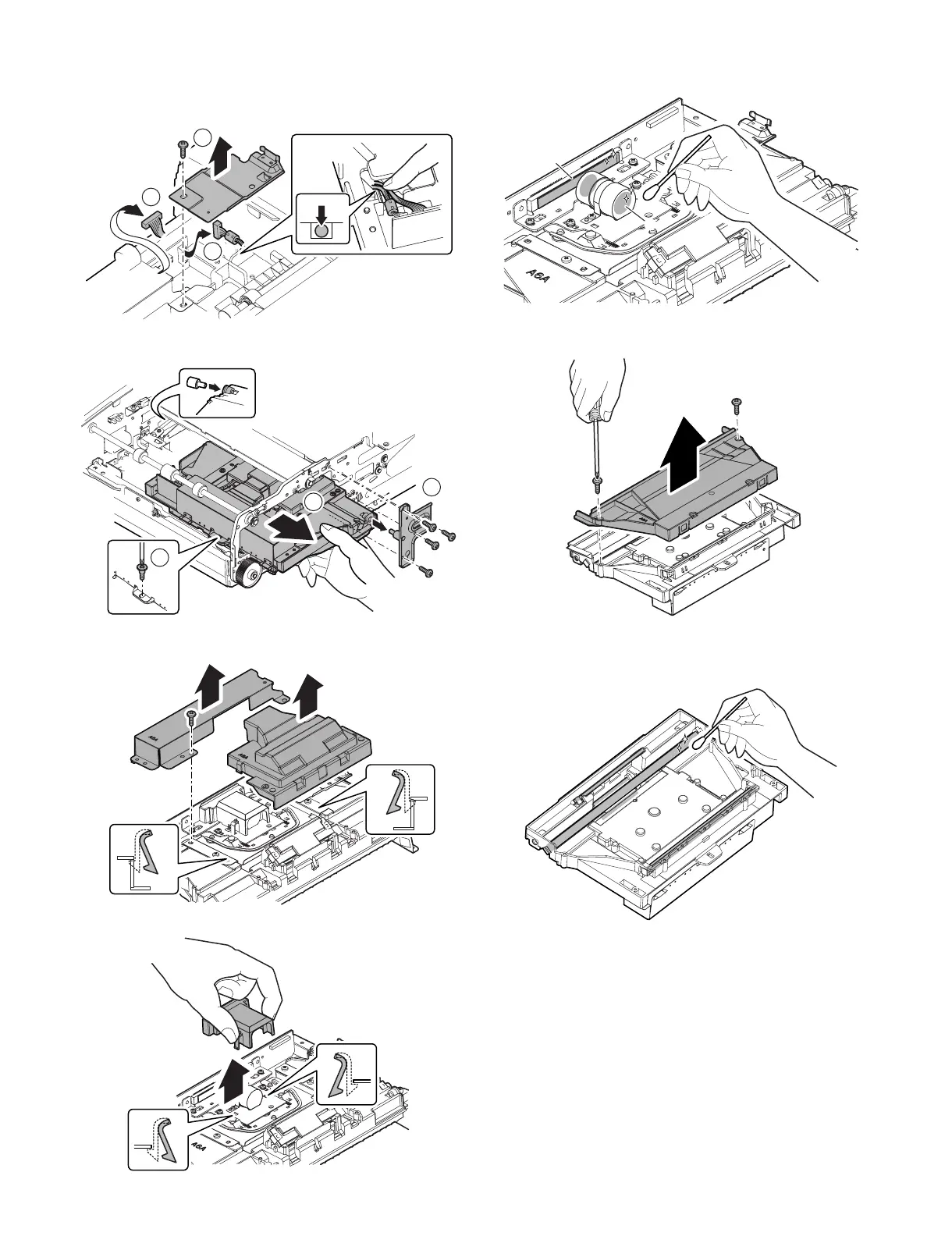

24) Remove the screw, and remove the harness cover. Disconnect
the connector.
* When assembling, arrange the harness so that it is placed in
the lower position than the rib height.
25) Remove the step screw, and remove the screw. Remove the
optical fixing plate. Remove the optical unit.
26) Remove the pawl. Remove the dust-proof cover. Remove the
screw, and remove the dark box.
27) Remove the pawl, and remove the lens cover.
28) Clean the lens (a) and the CCD (b).
Maintenance: Clean at every 150K.
29) Remove the screw, and remove the mirror base cover.
30) Clean the mirror.
Maintenance: Clean at every 150K.
1
2
2
1
3
2
b
a
