Sharp MX-FN27 - Sensors

MX-FN27, MX-PN14 EXTERNAL VIEW AND INTERNAL STRUCTURE 2 – 3

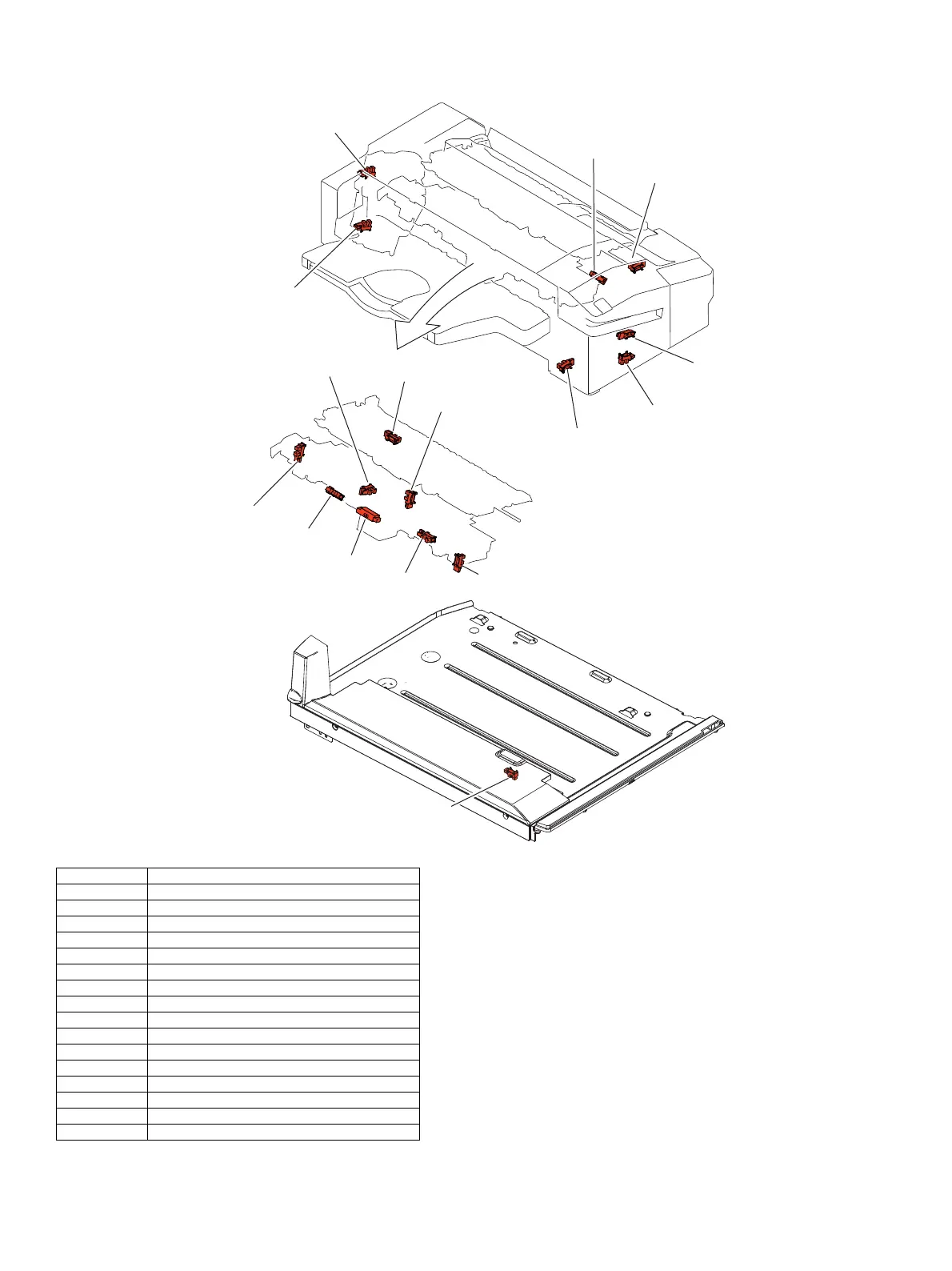

4. Sensors
Signal name Name
FNPS1 Delivery sensor
FNPS2 Paddle home position sensor
FNPS3 Return belt home position sensor
FNPS4 Front alignment plate home position sensor
FNPS5 Rear alignment plate home position sensor
FNPS6 Processing tray paper sensor
FNPS7 Assist home position sensor
FNPS8 Paper hold home position sensor
FNPS9 Stack tray paper height sensor
FNPS10 Stack tray lower limit sensor
FNPS11 Stapler shift home position sensor
FNPS12 Manual staple sensor
FNPS13 Clinch motor drive detection sensor
FNPS14 Stack tray home position sensor
FNPS15 Clinch home position sensor
FNPS16 Divide sensor
FNPS16
FNPS10
FNPS2
FNPS12
FNPS11
FNPS3
FNPS15
FNPS13
FNPS4
FNPS5
FNPS1
FNPS6
FNPS7
FNPS8
FNPS9
FNPS14
