MX-FN27, MX-PN14 OPERATIONAL DESCRIPTION 6 – 2
2. Basic Operation
A. Outline
The finisher operates according to the commands that it receives from the host machine and ejects paper to the delivery tray.
There are four paper delivery methods.
– Non-sort stacking
– Shift-sort stacking
– Staple-free staple stacking
Basic operations of this finisher are described below.

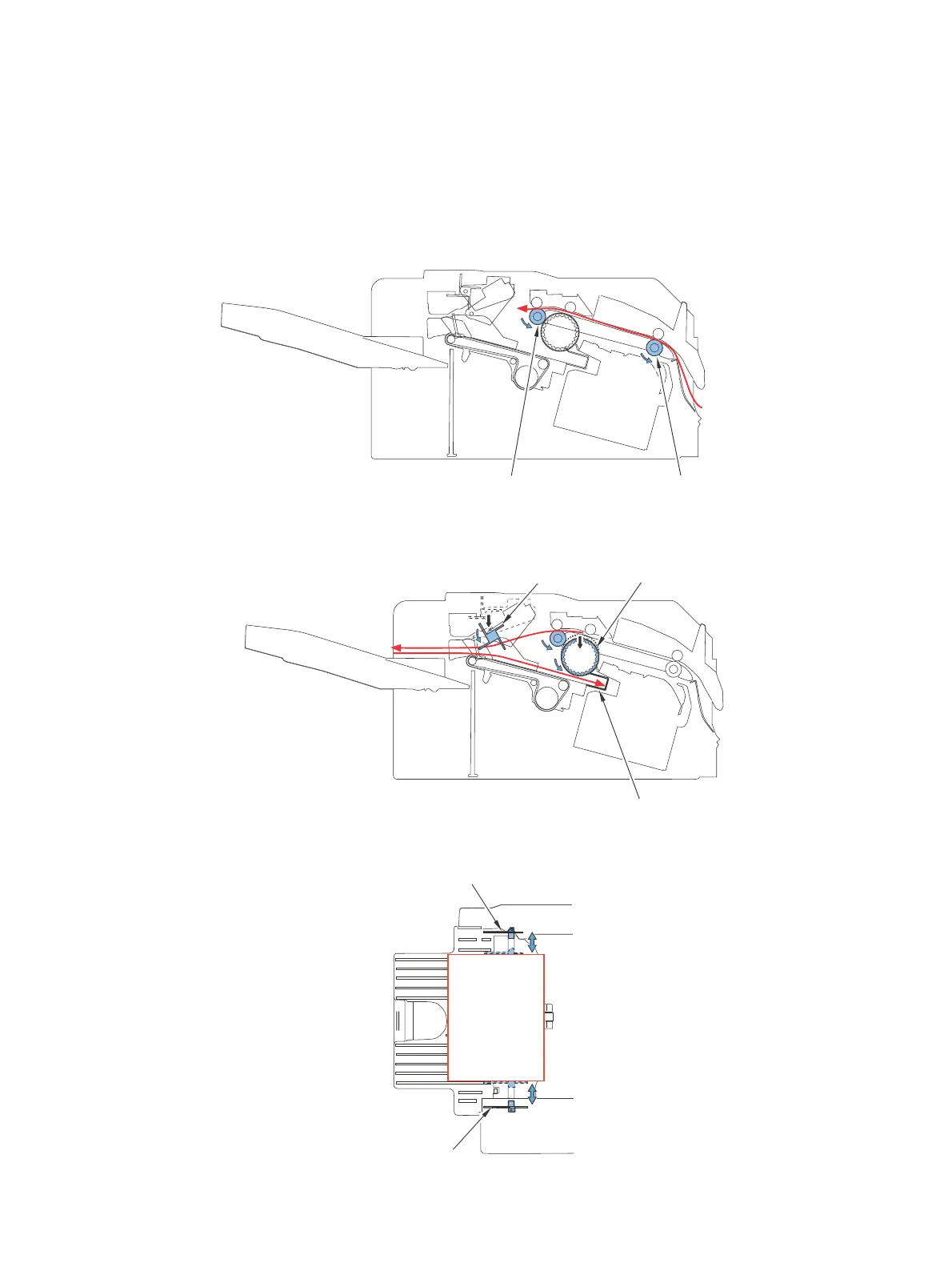

1) The paper delivered from the host machine is fed by the inlet roller and delivery roller.
2) The paper delivered by the delivery roller is fed toward the processing tray by the paddle. The return belt feeds the paper to the processing tray's
stopper and aligns paper in the feed direction.
3) The alignment plates are used to align paper in the width direction.(In the illustration below, paper is aligned with reference to the central refer-
ence position.)
Delivery Roller
Inlet Roller
Rear Alignment Plate
Front Alignment Plate
To Next Page
