Sharp MX-FN27 - Sensors; Other Parts

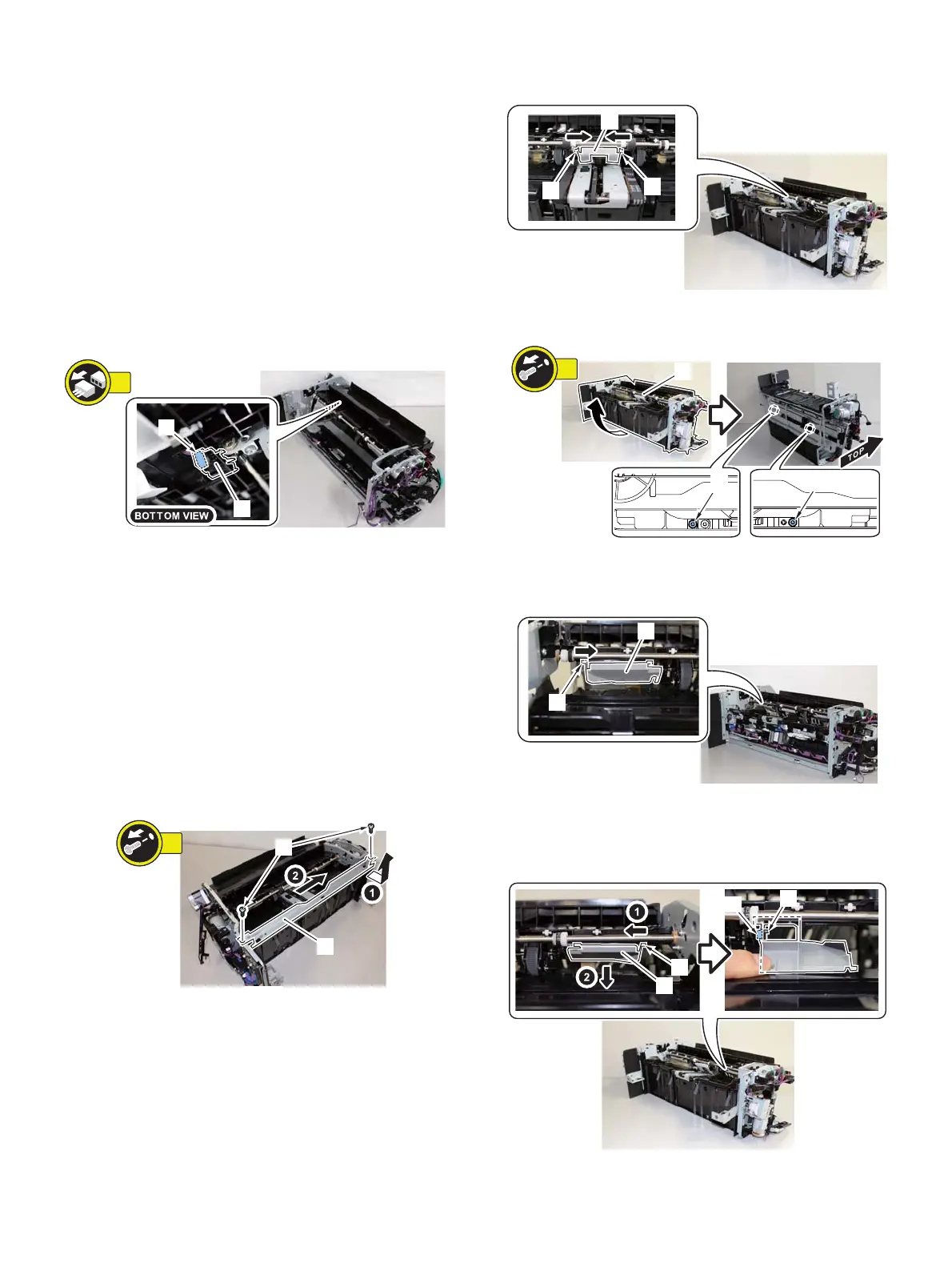

MX-FN27, MX-PN14 DISASSEMBLY AND ASSEMBLY 5 – 7
4. Sensors
A. Delivery Sensor
(1) Preparation
1) Remove the machine from the host machine.
2) Remove the Front Cover Unit.
3) Remove the Rear Cover.
4) Remove the Delivery Tray.
5) Remove the Upper Feed Guide Unit.
6) Remove the Staple-free Staple Unit.
7) Remove the Tray Guide Cover.
8) Remove the Processing Tray Unit.
(2) Procedure
1) Remove the Delivery Sensor [1].
– 1 Connector [2]
5. Other Parts
A. Return Belt Unit
(1) Preparation
1) Remove the machine from the host machine.
2) )Remove the Front Cover Unit.
3) Remove the Rear Cover.
4) Remove the Delivery Tray.
5) Remove the Upper Feed Guide Unit.
6) Remove the Stapler Unit.
(2) Procedure
1) Remove the Upper Stay [1].
–2 Screws [2]
2) Remove the Center Return Belt Guide [1].
– 2 Bosses [2]
3) Rotate the machine [1] as shown below, and remove the 2 Screws
[2] of the Front/Rear Return Belt Guide.
4) Return the machine to its original position
5) Remove the Rear Return Belt Guide [1].
– 1 Boss [2]
6) Remove the Front Return Belt Guide [1].
– 1 Boss [2]
– 1 Clip [3]
– 1 Bushing [4]
1x
[1]
[2]
[1]
[2]
2x
[1]
[2]
[2]
2x2x
[2]
[2]
[1]
[1]
[2]
[2]
[1]
[3]
[4]
