MX-FN27, MX-PN14 OPERATIONAL DESCRIPTION 6 – 4
B. Initialization
The finisher performs the following initialization operation depending on the status.
*1:Target sensors

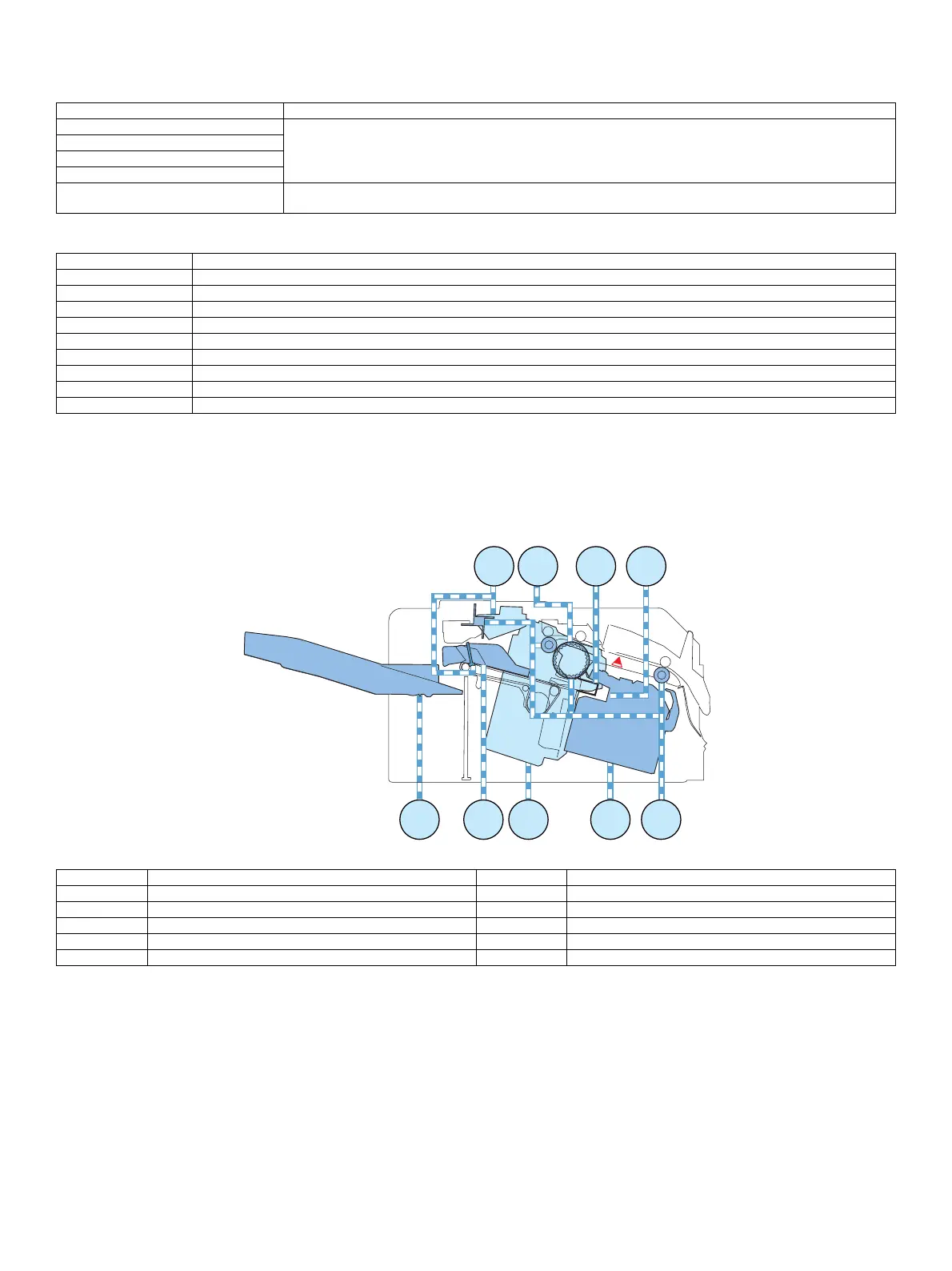

3. Feed Unit
A. Outline
The feed unit feeds the paper delivered from the host machine to the processing tray unit.
A Delivery sensor (FNPS1) is provided along the paper feed path in the feed unit to detect the paper feed state and jam.
Status Operation
At power ON If the target sensors*1 are aware of the home positions, initialization is not performed.
Only before starting a job, the Stack tray paper height sensor (FNPS9)
detects the paper height.
When recovering from sleep mode
At the start of a job
At the end of a job
After the cover is closed Initialization is performed regardless of the sensor status. If at the home position, initialization is performed by moving the
sensor away from the home position.
FNPS2 Paddle home position sensor
FNPS3 Return belt home position sensor
FNPS4 Front alignment plate home position sensor
FNPS5 Rear alignment plate home position sensor
FNPS7 Assist home position sensor
FNPS8 Paper hold home position sensor
FNPS9 Stack tray paper height sensor
FNPS11 Stapler shift home position sensor
FNPS14 Stack tray home position sensor
FNPS15 Clinch home position sensor
FNM1 Feed motor FNM7 Stapler shift motor
FNM2 Return belt motor FNSTPLIF Stapler motor
FNM3 Front alignment motor FNM9 Clinch motor
FNM4 Rear alignment motor FNM10 Paddle motor
FNM5 Assist motor FNPS1 Delivery Sensor
FNM6 Tray shift motor
FNM7 FNM6
FNM10
FNM9
FNM2
FNSTPLIF
FNPS1
FNM3/4
FNM5
FNM1
