MX-FN27, MX-PN14 MAINTENANCE 4 – 1
MX-FN27, MX-PN14
Service Manual
[4] MAINTENANCE
1. Finisher
A. Maintenance list
✕: Check (Clean, replace, or adjust according to necessity.) ○: Clean : Replace : Adjust ✩: Lubricate
*1 : Do not apply the grease to the following gears.

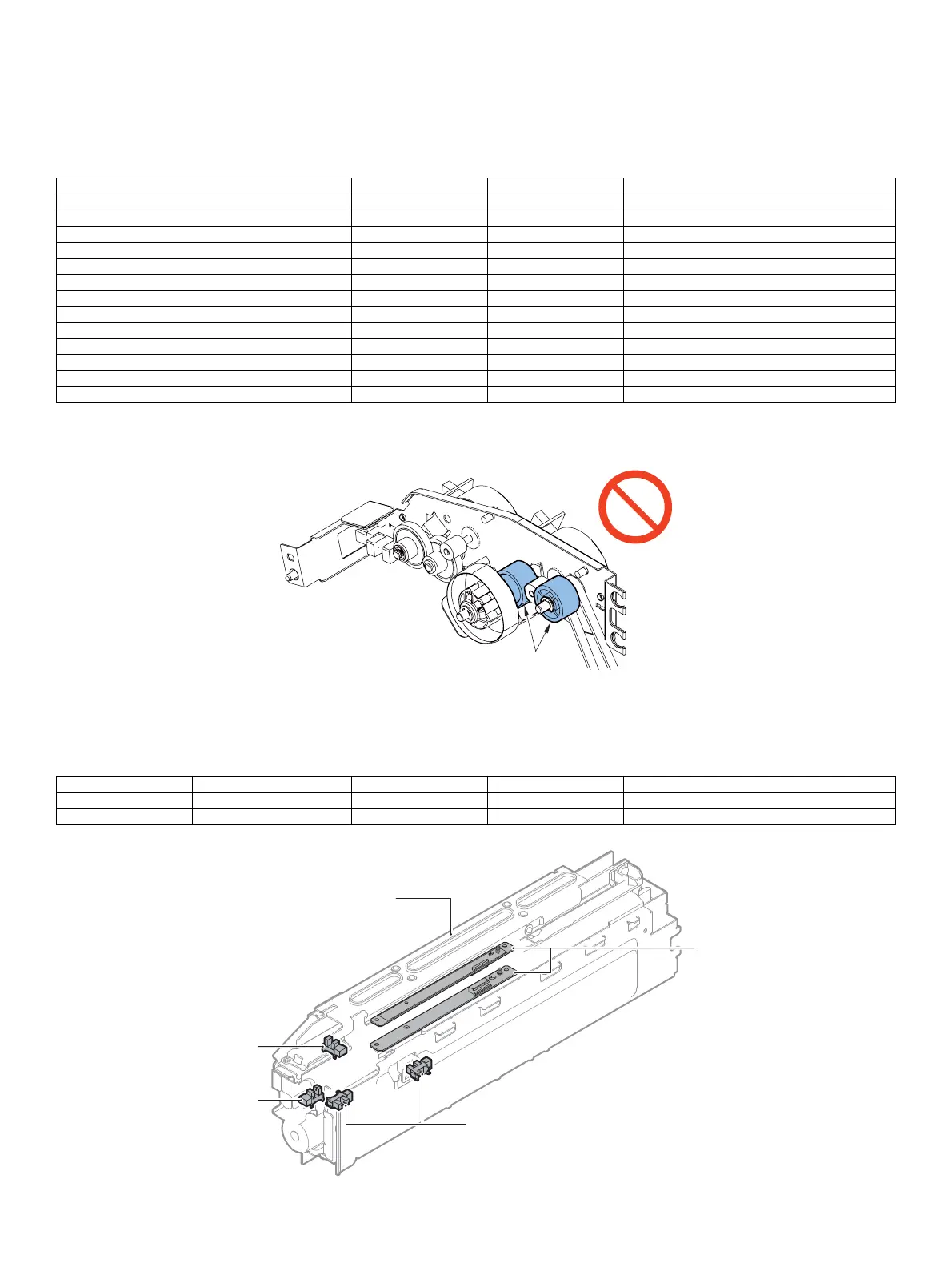

CAUTION: Do not apply the grease to the gears [1] of the Return belt motor (FNM2) or Paddle motor (FNM10).
2. Punch unit
A. Maintenance list
✕: Check (Clean, replace, or adjust according to necessity.) ○: Clean : Replace : Adjust ✩: Lubricate
Part name When calling When machine cycle Remarks
Staple cartridge X X Replace at 5000 cartridges by the customer
Staple unit X X Replacement for 200K staple
Inlet paper transport roller X O
Inlet paper transport small roller X O
Discharge brush X X
Paper exit small roller X X
Paper exit roller X X
Transport paddle X X
Paper exit paddle X O
Paper drawing belt X X
Sensors X X
Paper guides/Tray X O
Stapl-free staple unit X X Replacement for 20K staple
[1]
Parts work sequence Part name When calling When machine cycle Remarks
1 Punch unit X X Replacement for 100K
2 Sensors X X
2
2
2
1
2
