Sharp MX-FN27 - Solenoid and Switch; Motors

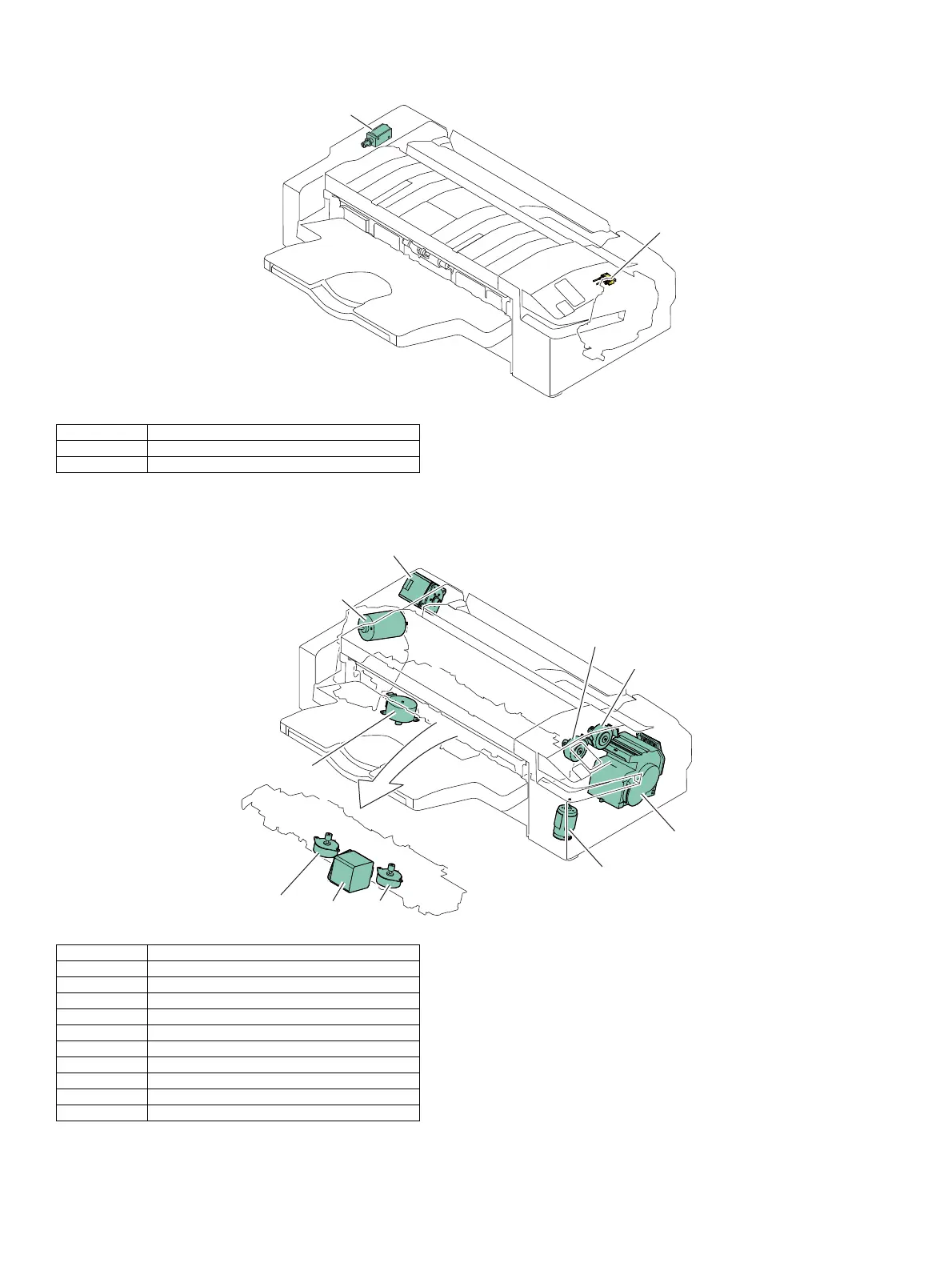

MX-FN27, MX-PN14 EXTERNAL VIEW AND INTERNAL STRUCTURE 2 – 4
5. Solenoid and switch
6. Motors
Signal name Name
FNMSW1 Front cover switch
FNSL Rear paper flap solenoid
Signal name Name
FNM1 Feed motor
FNM2 Return belt motor
FNM3 Front alignment motor
FNM4 Rear alignment motor
FNM5 Assist motor
FNM6 Tray shift motor
FNM7 Stapler shift motor
FNM9 Clinch motor
FNM10 Paddle motor
FNSTPLIF Stapler motor
FNMSW1
FNSL
FNSTPLIF
FNM6
FNM7
FNM9
FNM10
FNM2
FNM3
FNM4
FNM5
FNM1
