MX-FN27, MX-PN14 EXTERNAL VIEW AND INTERNAL STRUCTURE 2 – 5

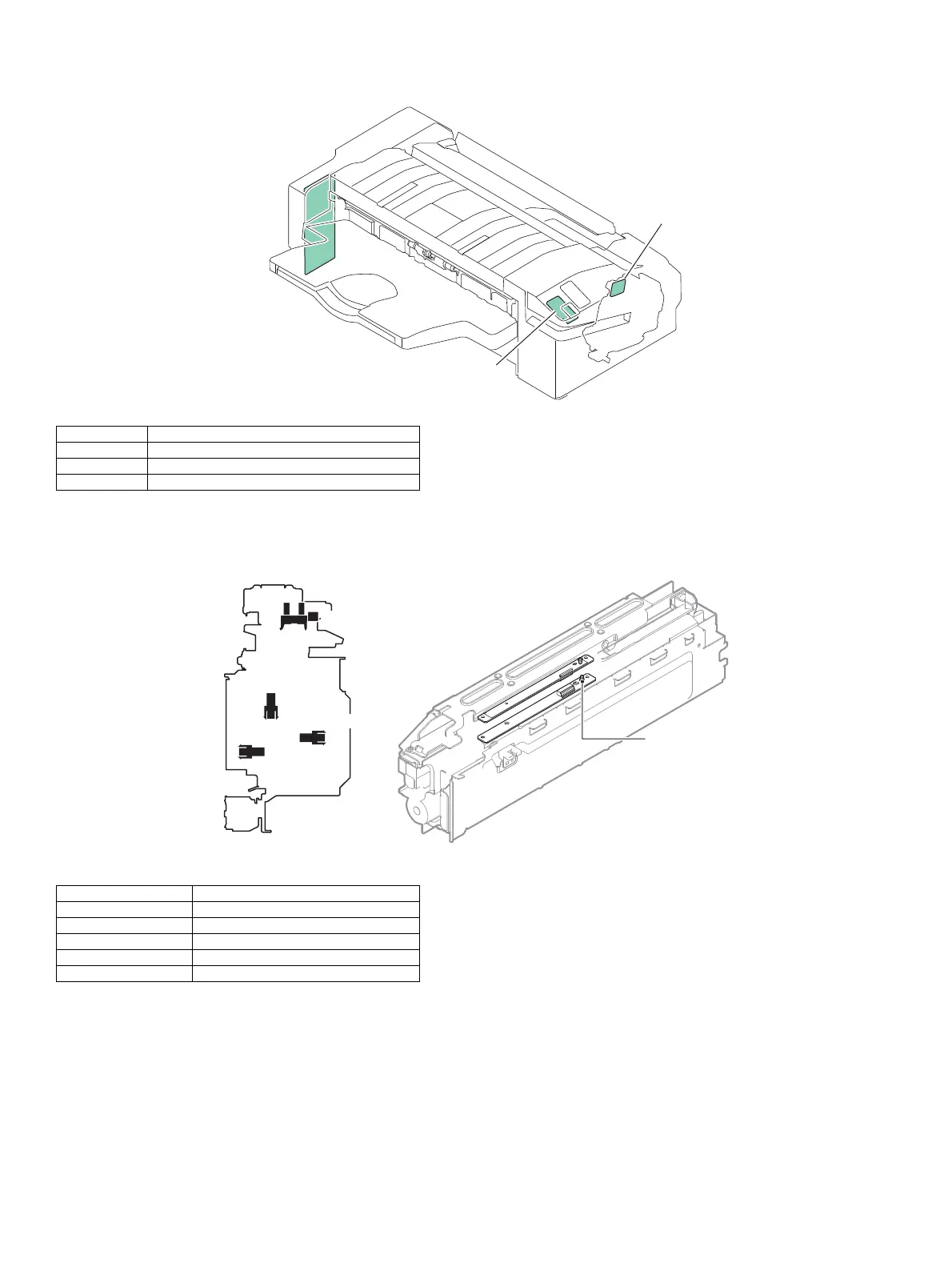

7. PWB
8. Punch unit
A. Sensors
No. Name
PWB1 Finisher controller PWB
PWB2 Stapler relay PWB
PWB3 Manual staple switch PWB
Signal name Name
FCFULL_S Punch dust full sensor
FCPI_S Punch cam home position sensor
FCPUENCS Punch motor rotation sensor
FCRI_S Punch mode sensor
FCYKPTRS Punch timing sensor
PWB1
PWB2
PWB3
FCRI_S
FCPI_S
FCFULL_S
FCPUENCS
FCYKPTRS
