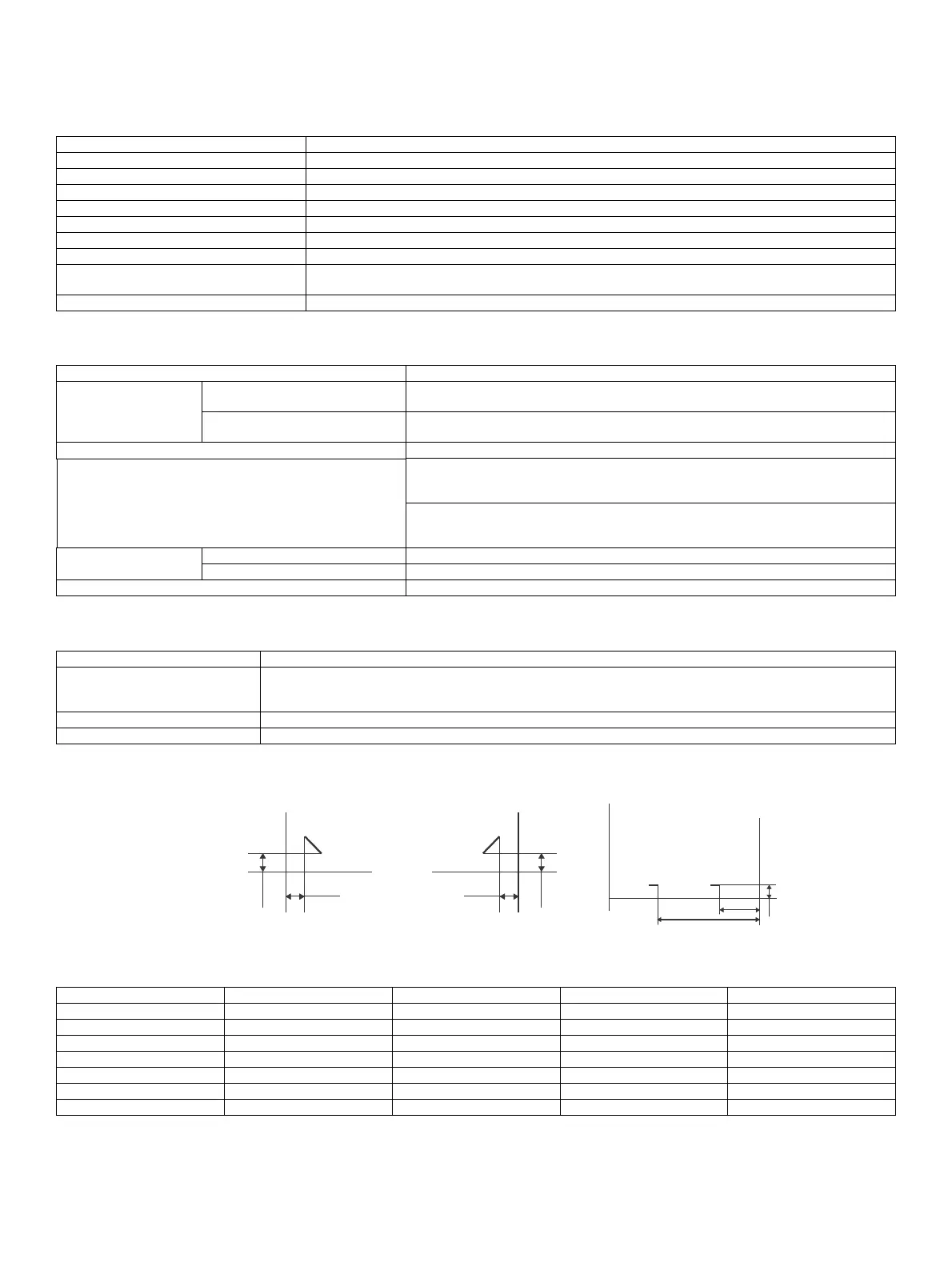

MX-FN27, MX-PN14 SPECIFICATIONS 1 – 1
MX-FN27, MX-PN14
Service Manual
[1] SPECIFICATIONS
1. Finisher section
2. Stacker section
3. Staple section
Stapling position
Type Built-in type
Transportation standard Center standard
Loading method Moving offset tray
Mode Non-staple, Staple
Top tray Non
Power consumption Approx. 54 W(without Punch unit: Approx. 39 W)
Power Supply Supplied from the main unit
Dimension (WxDxH mm) When Exit tray not extended : 534 x 525 x 202 mm 21_1/8 x 20_3/4 x 8 (inch)
Foot print (WxD mm) With tray extended: Required 669 x 525mm (227 mm from the left side of the main unit)
26_3/8 x 20_3/4 (inch)
Weight Approx.12 kg, 26.5lbs.
Offset quantity 30mm
Stacking capability Non-offset Deviation in X direction: 25 mm or less
Deviation in Y direction: 25 mm or less
Offset Deviation in X direction in a job : 25mm or less
Between bundles : 10mm or more
Alignment on staple mode Max. displacement value : 2.5 mm
Output Capacity Non-stapled:
250 sheets or 26 mm or less (A3, 11x17)
500 sheets or 52 mm or less(A4, 8.5x11)
Both of Stapled and Staple less stapled:
30 bundles or 250 sheets or 26 mm or less (A3, 11x17)
30 bundles or 500 sheets or 52 mm or less(A4, 8.5x11)
Height when mixed Mixed size (non-staple included) 250 sheets or 26 mm or less
Staple included 30 bundles or 250 sheets or 26 mm or less
Paper detection No
Staple position 1-point at front (Slant), 1-point at rear (Slant), 2-point stitching
Number of sheets to be stitched 50 sheets (A4, 8.5x11, 90g/m2)
Stapling a mixture of types/sizes : 30 sheets
Max. : 300g/m2 (2 sheets) + 90g/m2 (48 sheets)
Supply method of Staple Dedicated staple cartridge (5,000 staples)
Detection of non staple Yes
Unit (mm)
Paper size L1 L2 L3 Pitch
A3, A4 83 +/- 4.0 203 +/- 4.0 5.0 +/- 2.0 120
B4, B5 63 +/- 4.0 183 +/- 4.0 5.0 +/- 2.0 120
11X17, LTR 74 +/- 4.0 194 +/- 4.0 5.0 +/- 2.0 120
A4R 39.5 +/- 4.0 159.5 +/- 4.0 5.0 +/- 2.0 120
LTRR, LGL 42.5 +/- 4.0 162.5 +/- 4.0 5.0 +/- 2.0 120
8K, 16K 69.5 +/- 4.0 189.5 +/- 4.0 5.0 +/- 2.0 120
EXEC 68 +/- 4.0 188 +/- 4.0 5.0 +/- 2.0 120
Center 2-point stapling
Front 1-point stapling (45 deg)
5.0 -/+ 2.0 mm
5.0 -/+ 2.0 mm
Rear 1-point stapling (45 deg)
5.0 -/+ 2.0 mm
5.0 -/+ 2.0 mm
L3
L1
L2
Alignment
front side
Alignment
back side
