MX-FN27, MX-PN14 DISASSEMBLY AND ASSEMBLY 5 – 1
MX-FN27, MX-PN14
Service Manual
[5] DISASSEMBLY AND ASSEMBLY

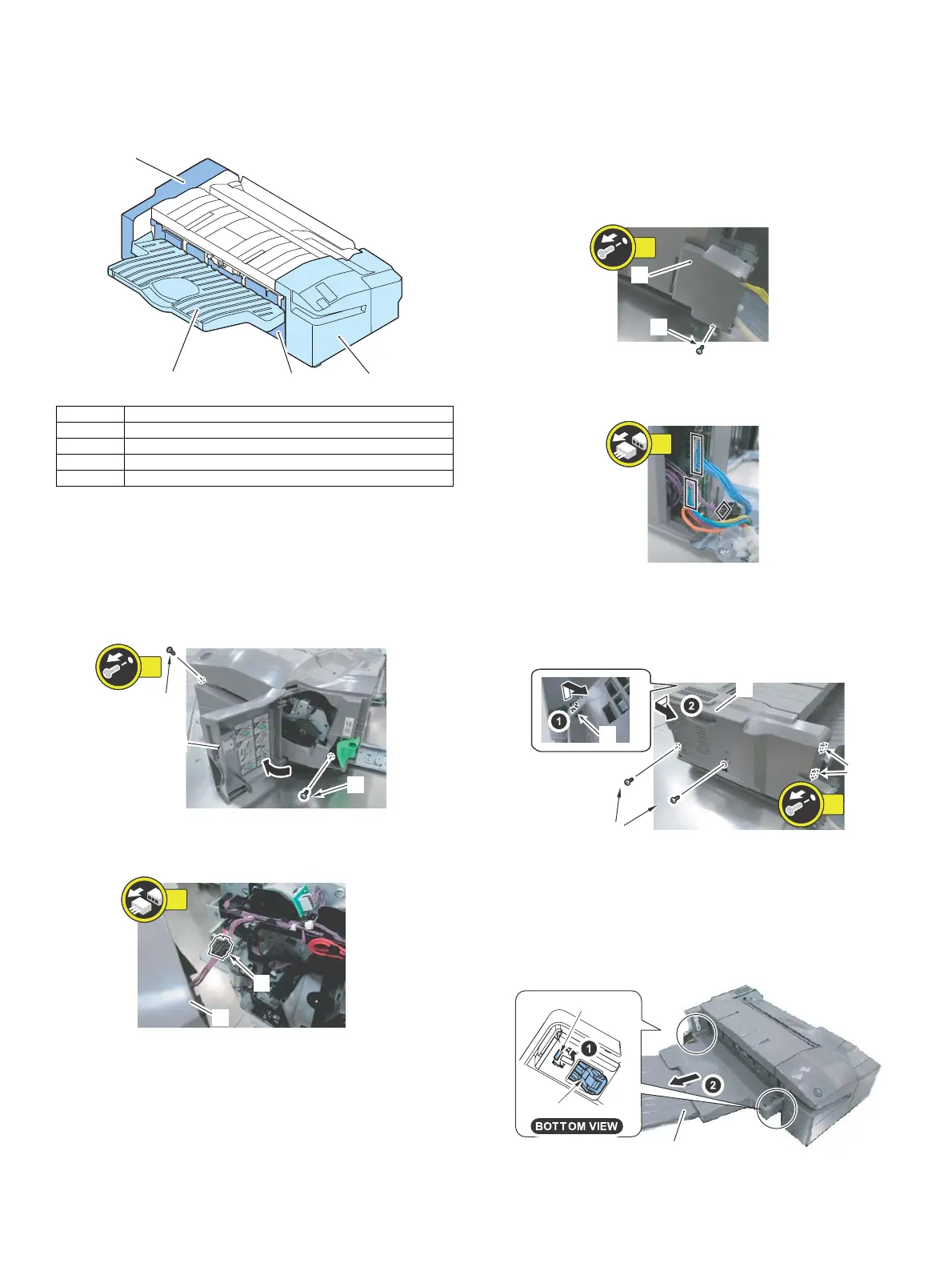

1. Major unit and cover
A. External Cover
(1) Front Cover Unit
a. Preparation
1) Remove this machine from the host machine.
b. Procedure
1) Open the Front Cover [1].
2) Remove the 2 Screws [2].
3) Move the Front Cover Unit [1],and disconnect the 2 Connectors
[2]
(2) Rear Cover
a. Preparation
1) Remove this machine from the host machine.
b. Procedure
1) Remove the Rear Sub Cover [1].
- 2 Screws [2]
2) Remove the connectors of PWB.
- 1 Screw [3]
3) Remove the Rear Cover [1].
- 2 Screws [2]
- 1 Claw [3]
- 2 Hooks [4]
(3) Delivery Tray
a. Procedure
1) Remove the Delivery Tray [1].
– 2 Claws [2]
– 2 Hooks [3]
No. Parts Name
[1] Front Cover Unit
[2] Tray Guide Cover
[3] Delivery Tray
[4] Rear Cover
[1][2][3]
[4]
2x
[1]
[2]
[2]
[2]
1x
[1]
1x
[1]
[2]
3x
[1]
[2]
[3]
2x
[4]
[1]
[2]
[3]
