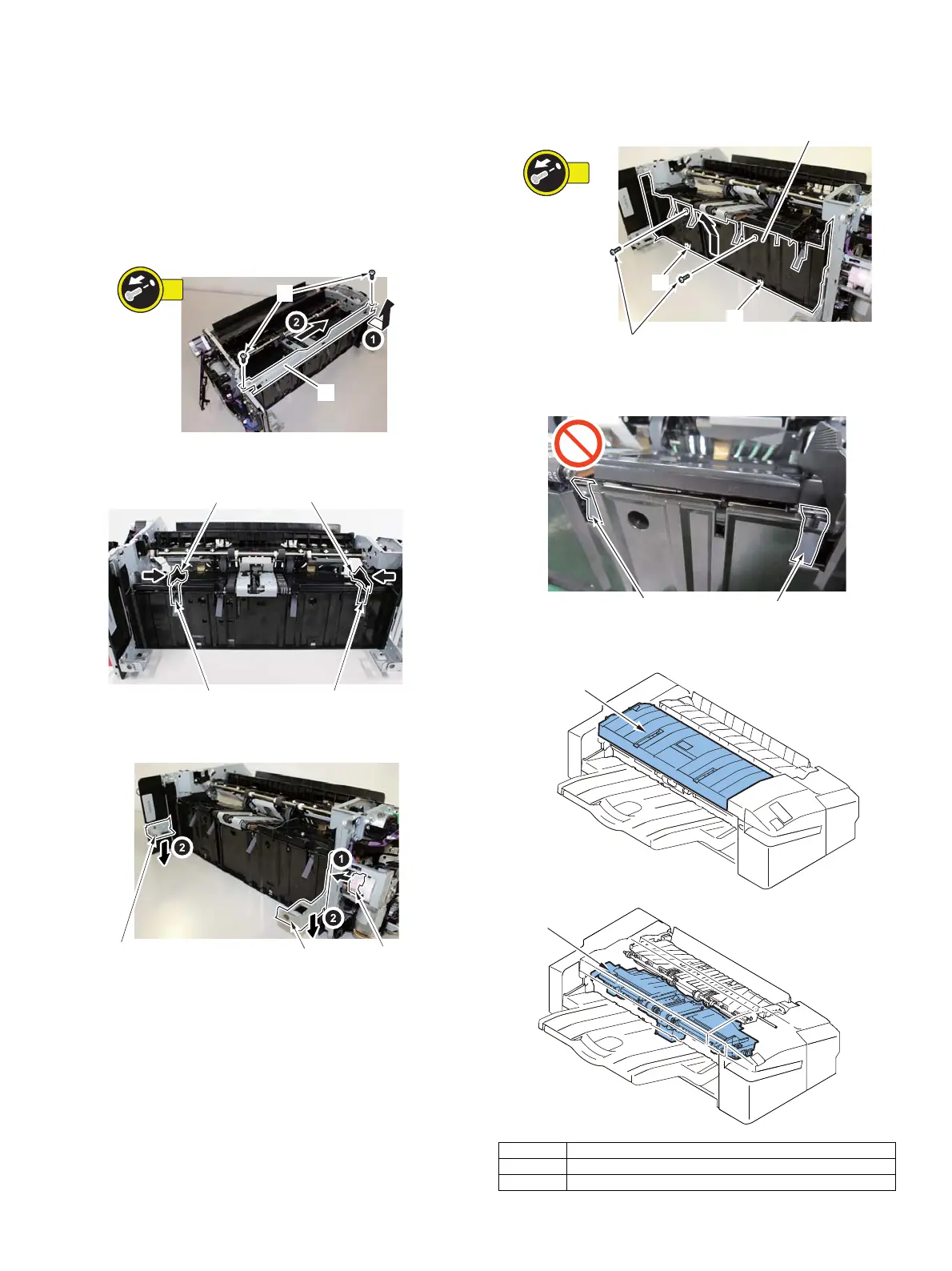

(4) Tray Guide Cover
a. Preparation
1) Remove this machine from the host machine.
2) Remove the Front Cover Unit.
3) Remove the Rear Cover.
4) Remove the Delivery Tray.
5) Remove the Upper Feed Guide.
b. Procedure
1) Remove the Upper Stay [1].
–2 Screws [2]
2) Move the Front Alignment Plate [1] and Rear Alignment Plate [2]
to the slit [3] of the Tray Guide Cover.
3) Release the latch [1] and move the Front/Rear Tray Plate [2] to
the bottom.
4) Remove the Tray Guide Cover [1]
– 2 Screws [2]
– 2 Claws [3]
NOTE: Do not nip the Paper Fold [1] when the Tray Guide Cover is
installed.
B. Main unit
[1]
[2]
2x
[2]
[1]
[3]
[3]
[1]
[2]
[2]
No. Parts Name
[1] Upper Feed Guide Unit
[2] Processing Tray Unit
2x
[1]
[3]
[3]
[2]
[1]
[1]
[1]
[2]
