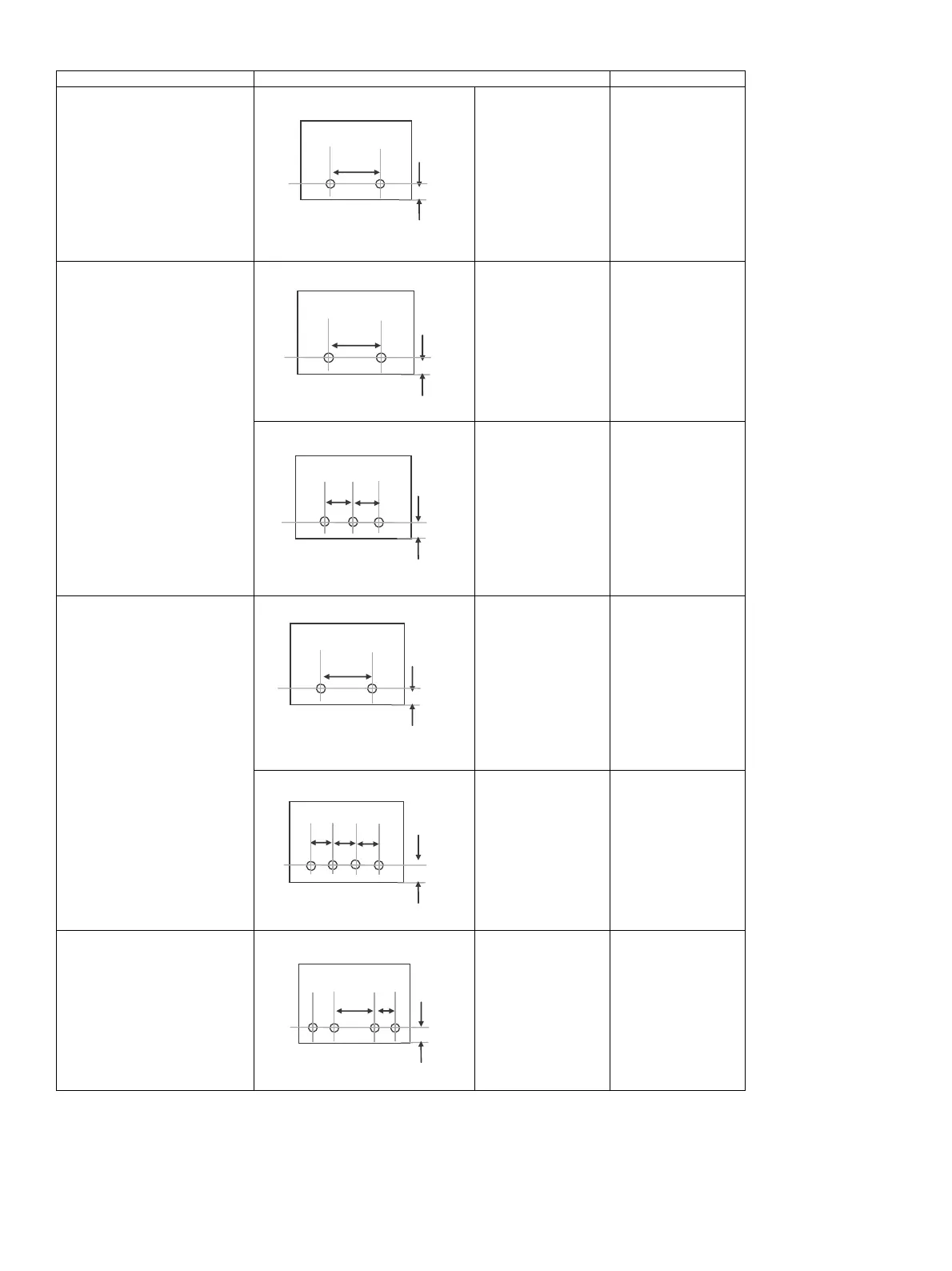

MX-FN27, MX-PN14 SPECIFICATIONS 1 – 3
Type Hole position Hole diameter
2 holes A : 80 +/- 1mm
B : 12 +/- 3mm
φ6.5mm
2/3 holes (Auto switching) 2 holes A : 70 +/- 1mm
B : 12 +/- 3mm
(MX-PN14B)
φ8.0mm
3holes A : 108 +/- 1mm
B : 12 +/- 3mm
(MX-PN14B)
2/4 holes (Manual switching) A : 80 +/- 1mm
B : 12 +/- 3mm
φ6.5mm
A : 80 +/- 1mm
B : 12 +/- 3mm
φ6.5mm
4 holes wide A : 70 +/- 1mm
B : 12 +/- 3mm
C : 21 +/- 1mm
φ6.5mm
A
B
A
B
A
B
A
A
B
A
B
A
A
A
B
C
