MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 62

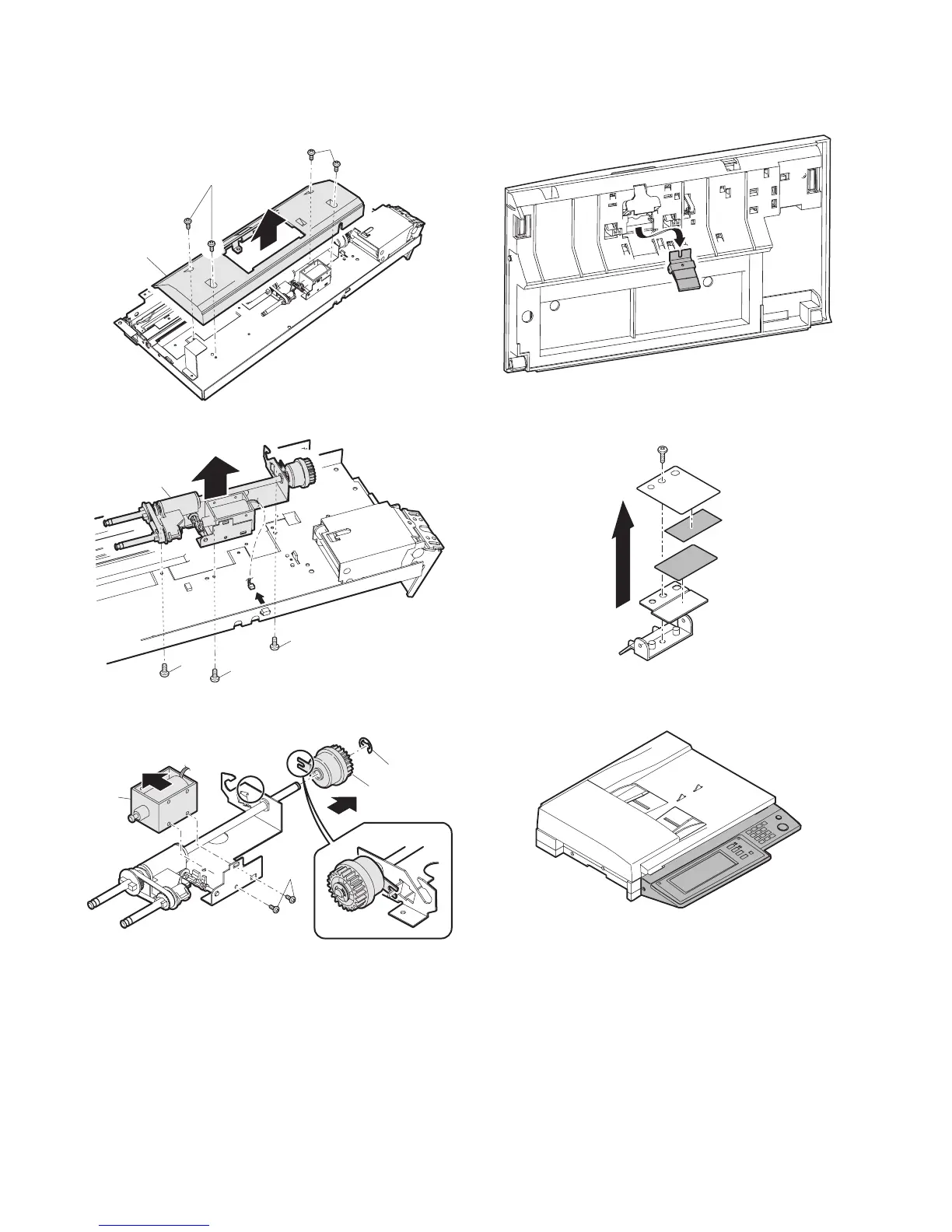

a-19. SPF original paper feed solenoid
a-20. SPF original paper feed clutch
1) Remove the SPF paper feed unit.
2) Remove the SPF paper guide.
3) Remove the SPF pickup unit.
4) Remove the original paper feed solenoid and the SPF original
paper feed clutch.
a-21. Separation mylar lower
a-22. Separation pad
1) Remove the upper transport unit.
2) Loosen the screw, and remove the separation pad unit.
3) Remove the screw, and remove the separation plate and the
front separation plate.
4) Remove the separation Mylar lower, and the separation pad.
8. Operation panel section
A. General
This section describes various types of settings, display and oper-
ation.
The LCD display section is controlled by the MFP CONTROL
PWB.
The touch panel, operation keys and LED display are controlled by
the SCANNER CONTROL PWB.
1)
1)
2)
1)
1)
1)
2)
1)
2)
3)
4)
