MX-M350/M450 N/U UNPACKING AND INSTALLATION 6 - 1
[6] UNPACKING AND INSTALLATION

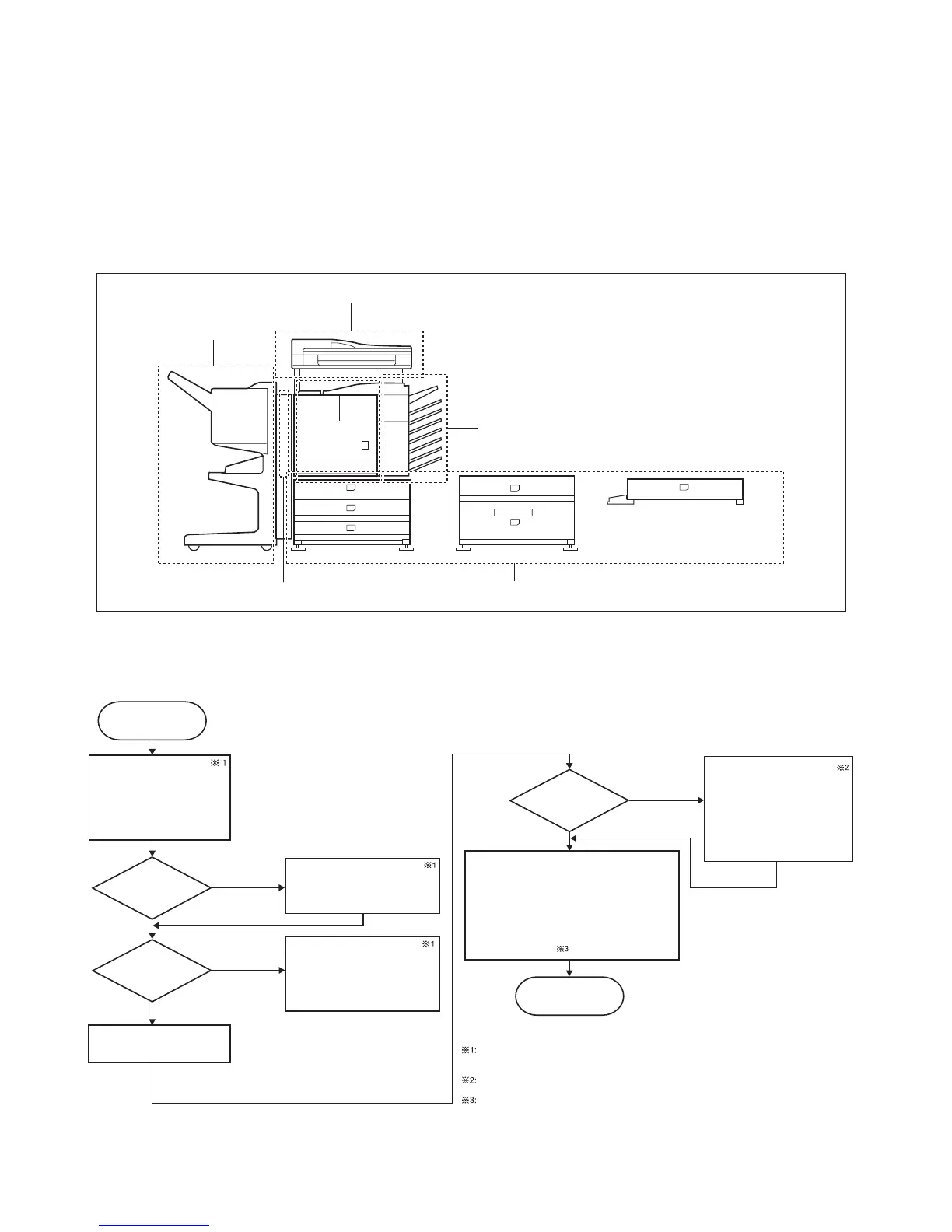

1. Installing procedure flowchart
There are many combinations between this machine and option
units. For installing option units, observe the following procedures
for efficiency.
To install the devices effciently, follow the procedure below.
Some peripheral devices may have been installed as standard
devices depending on the main unit model.
Part of descriptions and illustrations may be different.
∗ For installation of an option unit, refer to the Service Manual of the option unit.
Scanner/document feeder device
Main unit
Finishing device
Finishing device
Paper feeding deviceDuplex device
Start of installation
End
AR-MU2
AR-D27
AR-D28
Main unit
AR-FX12/AR-MM9
MX-NBX2
MX-NBX3
AR-PK6
MX-NSX1
Extended memory
AR-MU2/AR-D27/AR-D28/
AR-DU3/AR-DU4
AR-DU3
AR-DU4
AR-MS1
AR-FN6
AR-FN7
AR-PN1A / B / C / D
No
Yes
Duplex/bypass
device installed?
No
No
Finishing device
installed?
Yes
Yes
Controller board,
facsimile unit or other
electric devices
installed?
When installing a paper feeding device or a duplex/bypass device, be sure to reattach
the rear cabinet, the AC inlet cover, and the harness cover of the main unit at the end
of installation as needed.
When installing a controller board, a facsimile unit, and other electric devices, be sure to install them
at a time.
Only off center adjustment is needed for AR-DU3.
Install controller board,
facsimile unit or other electric
devices.
2)
Paper guide position adjustment/off center adjustment
1) Installation of driver software, setting,
and operation check
Main unit/MX-EFX1/AR-FX12/MX-NBX2/MX-NBX3/
AR-PK6/MX-NSX1
[Electrical setting/adjustment]
Main unit, paper feeding
device, and power supply
unit.
Install duplex/pypass device.
Install finishing device.
MX-EFX1/AR-RK2
Install scanner/document feeder.
* To install the AR-MU2, the optional exclusive-use desk is required.
