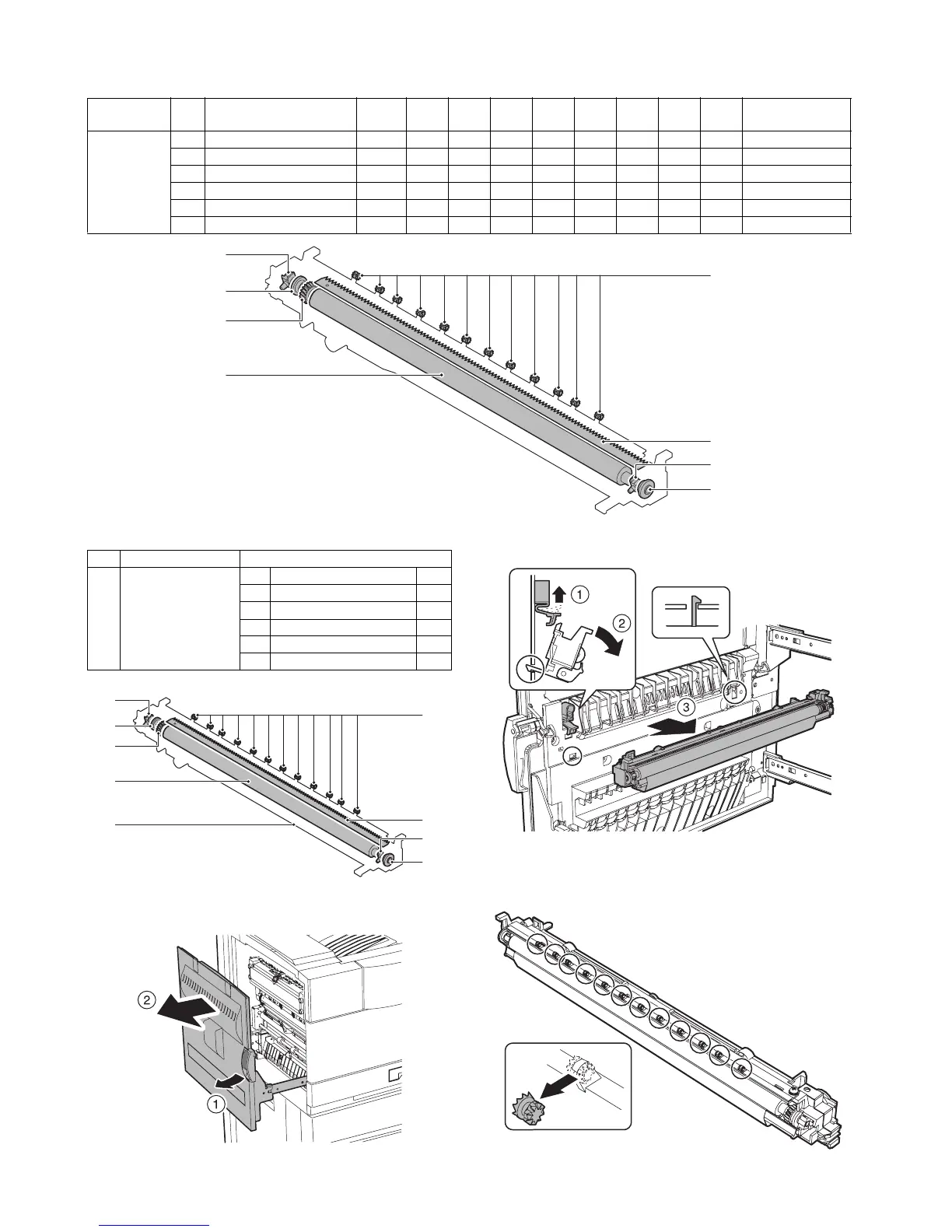

MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 14
D. Maintenance and parts replacement
(1) Maintenance list
(2) Maintenance and parts replacement
a. Transfer roller unit
1) Pull out the left door.
2) Remove the transfer lock pawl, and pull out the transfer roller
unit.
a-1. After-transfer star ring
1) Remove the transfer roller unit.
2) Remove the transfer rear star ring.
Unit name No. Part name
When
calling
100K 200K 300K 400K 500K 600K 700K 800K Remark
Transfer 1 Transfer roller ✕ ✕▲✕▲✕▲✕▲P/G No.: [5]-8
2 Discharge plate ✕ ✕▲✕▲✕▲✕▲P/G No.: [5]-2
3 TR bearing (F/R) ✕✕✕▲✕✕✕▲P/G No.: [5]-9, 18
4 Transfer roller collar ✕✕✕▲✕✕✕▲P/G No.: [5]-10
5 After-transfer star ring ✕✕✕✕✕✕✕✕P/G No.: [5]-19
6 TR gear ✕ ✕▲✕▲✕▲✕▲P/G No.: [5]-15
1
3
6
4
2
3
4
5
No. Unit Parts
a Transfer roller unit 1 After-transfer star ring ✕
2 Discharge plate ✕
3 Transfer roller ✕
4 Transfer roller collar ✕
5 TR bearing (F/R) ✕
6 TR gear ✕
a-5
a-2
a-1
a-4
a-5
a-3
a
a-4
a-6
To Next Page
