MX-M350/M450 N/U UNPACKING AND INSTALLATION 6 - 9

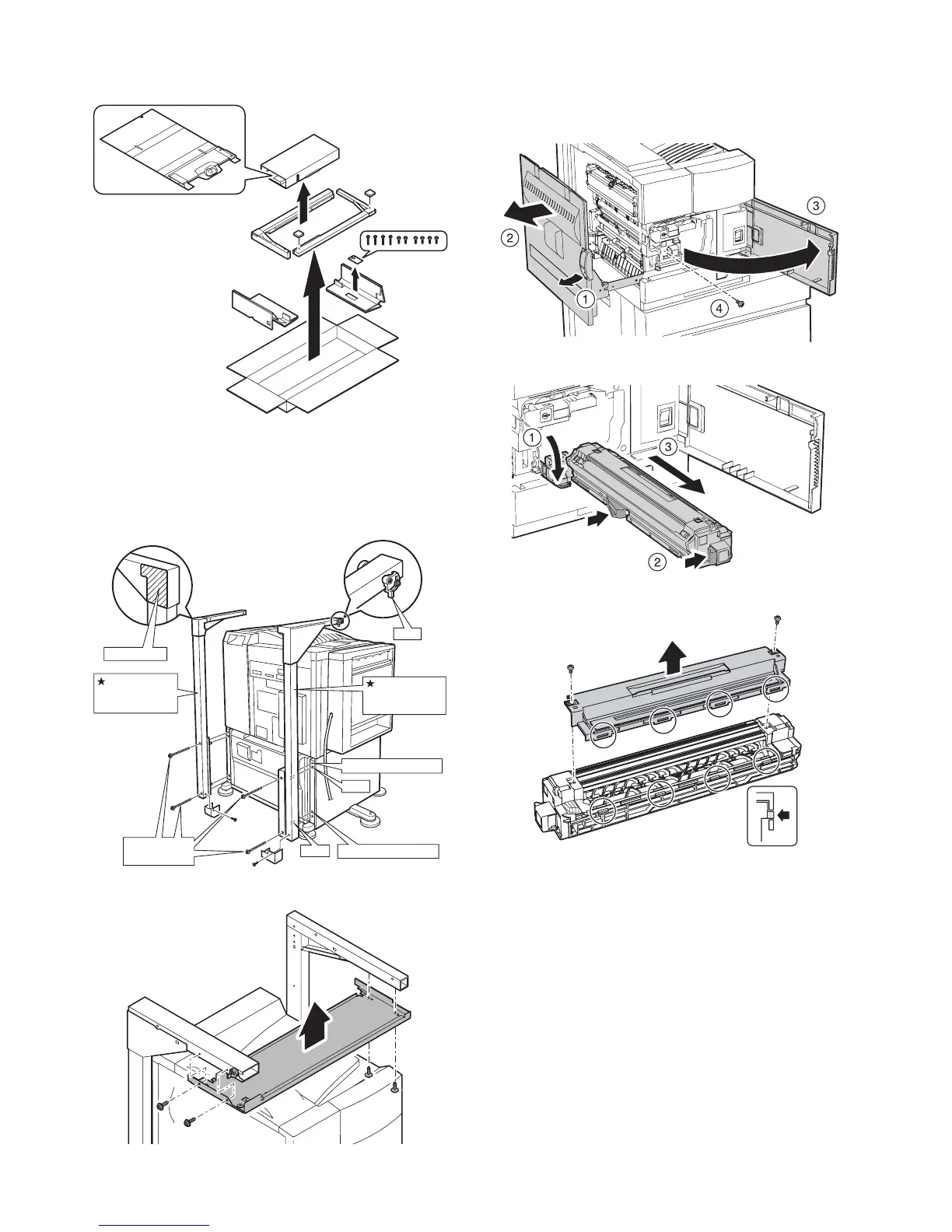

5. Unpacking and installation of the rack
(AR-RK2)
1) Attach the rack to the desk unit.
★ Be sure to identify the left and the right racks. Refer to the fig-
ure below.
Insert the rack boss into the rack mounting hole (made by
removing the mold of the desk unit), and fix each rack with two
fixing screws (M5 x 70).
2) Attach the rack bottom plate.
6. Machine installing procedure
A. Setting related to process
1) Open the left door and the front door, and remove the blue
screw in the developer cartridge section.
2) Remove the developer cartridge from the machine.
3) Remove the top cover of the developer cartridge.
Rack sheet
Rack with the
rack sheet
attached to it
Cam
Rack with the
cam attached
to it
Rack mounting hole
Boss
Boss
Rack mounting hole
Fixing screws
(M5x70)
To Next Page
