MX-M350/M450 N/U EXTERNAL VIEWS AND INTERNAL STRUCTURES 5 - 8

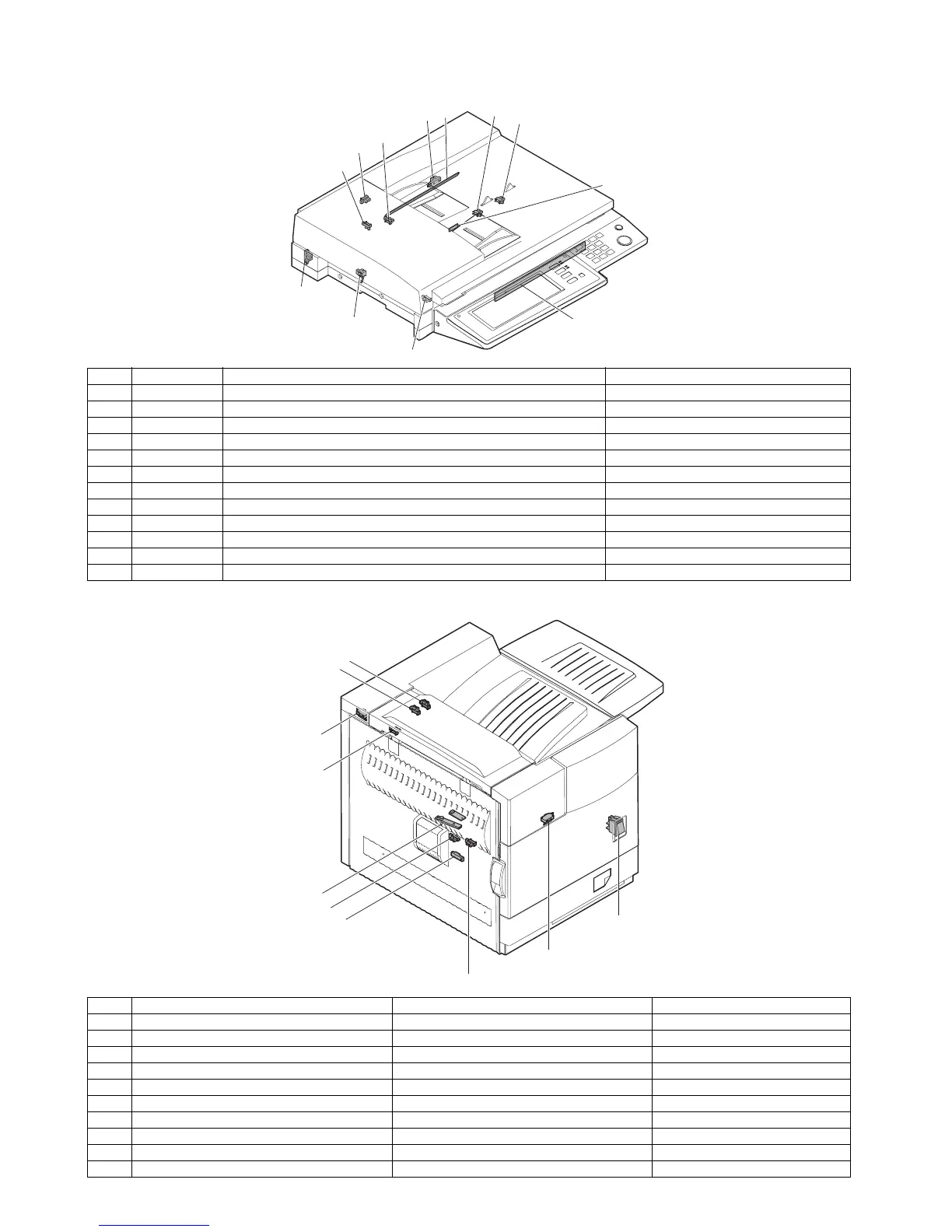

7. Switch, Sensor
A. Scanner unit
B. Engine
Code Name Active condition
1 SPPD SPF original resist front sensor
2 SCOV SPF paper feed cover sensor
3 SPED SPF original set sensor
4 OCSW OC open/close sensor
5 ORS-LED Original size sensor PWB (Light emitting side)
6 SPLS1 SPF original length sensor 1
7 SPLS2 SPF original length sensor
8 SPFVR SPF original width detection volume PWB
9 ORS-PD Original size sensor PWB (Light receiving side)
10 SOCD SPF open/close sensor
11 SPOD SPF original exit sensor
12 MHPS Mirror home position sensor
Code Function/Operation Active condition
1 DSW-F Front door open/close detection H= Door open
2 DSW-L Left door open/close detection H=Door open
3 POD1 Paper exit detection L= Paper detection
4 POD2 Paper exit detection L= Paper detection
5 POD3 Paper exit detection Full L= Paper detection
6 PPD1 Paper transport detection L= Paper detection
7 TCS Toner concentration sensor
8 LUD Paper feed cassette upper limit detection H= Upper limit detection
9 PED Paper feed cassette paper empty detection L= Paper empty detection
10 MAIN SW Power switch
7
1
2
3
4
5
6
8
9
10
11
12
1.DSW-F
2.DSW-L
3.POD1
4.POD2
5.POD3
6.PPD1
7.TCS
8.LUD
9.PED
10.MAIN SW
