MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 15

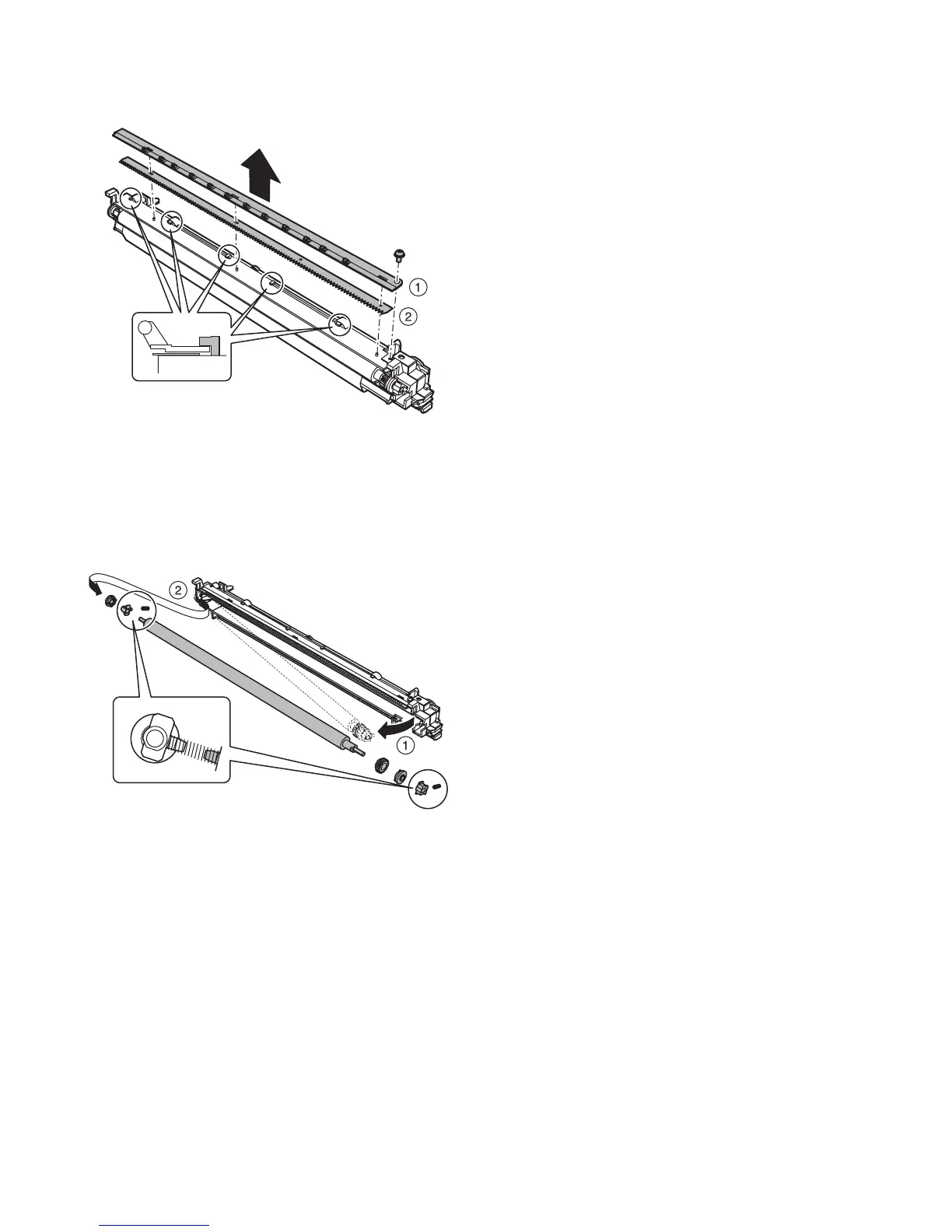

a-2. Discharge plate
1) Remove the transfer roller unit.
2) Remove the screw, and remove the discharge plate holder and
the discharge plate.
a-3. Transfer roller
a-4. Transfer roller collar
a-5. TR bearing (F/R)
a-6. TR gear
1) Remove the transfer roller unit.
2) Remove the screw, and remove the discharge plate holder and
the discharge plate.
