MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 76

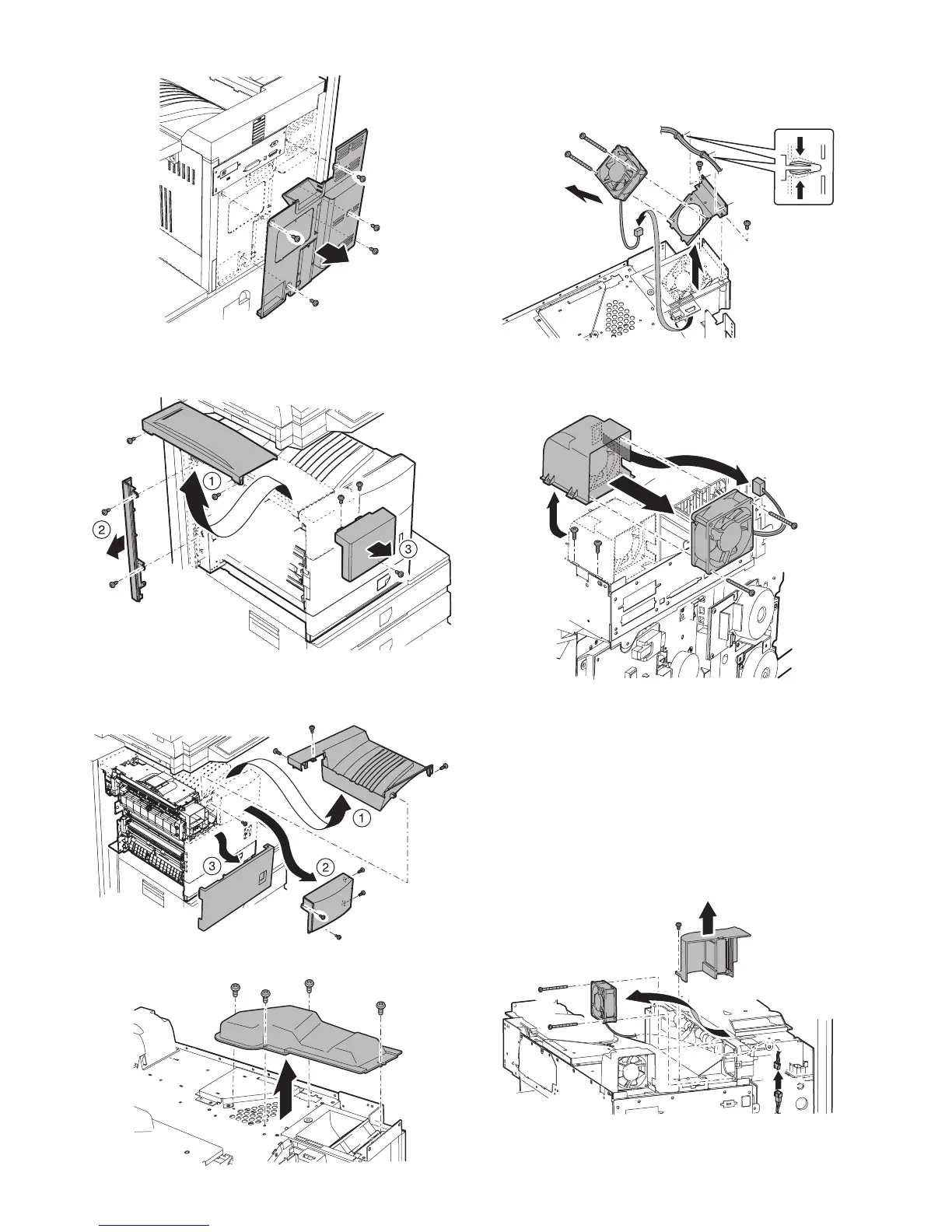

2) Remove the screw, and remove the rear cabinet.
3) Remove the screw, and remove the paper exit upper cabinet.
4) Remove the screw, and remove the left rear cabinet.
5) Remove the screw, and remove the front left upper cabinet.
6) Remove the screw, and remove the paper exit tray cabinet.
7) Remove the screw, and remove the front right upper cabinet.
8) Remove the front door.
9) Remove the screw, and remove the cooling fan duct upper.
10) Remove the snap band, the screw, and the connector, and
remove the fan fixing plate.
11) Remove the screw, and remove the controller cooling fan
motor 1.
∗ When installing the fan, note the fan direction.
12) Remove the connector and the screw, and remove the control-
ler cooling fan motor 2.
∗ When installing the fan, note the fan direction.
a-3. Ozone exhaust fan motor
1) Pull out the left door.
2) Remove the rear cabinet.
3) Remove the paper exit upper cabinet, the left rear cabinet, and
the front left upper cabinet.
4) Remove the paper exit tray cabinet, the front right upper cabi-
net, and the front door.
5) Remove the screw, and remove the controller duct.
6) Remove the connector and the screw, and remove the ozone
exhaust fan motor.
∗ When installing the fan, check the indication arrow and note the
fan direction.
To Next Page
