MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 24
(2) Maintenance and parts replacement

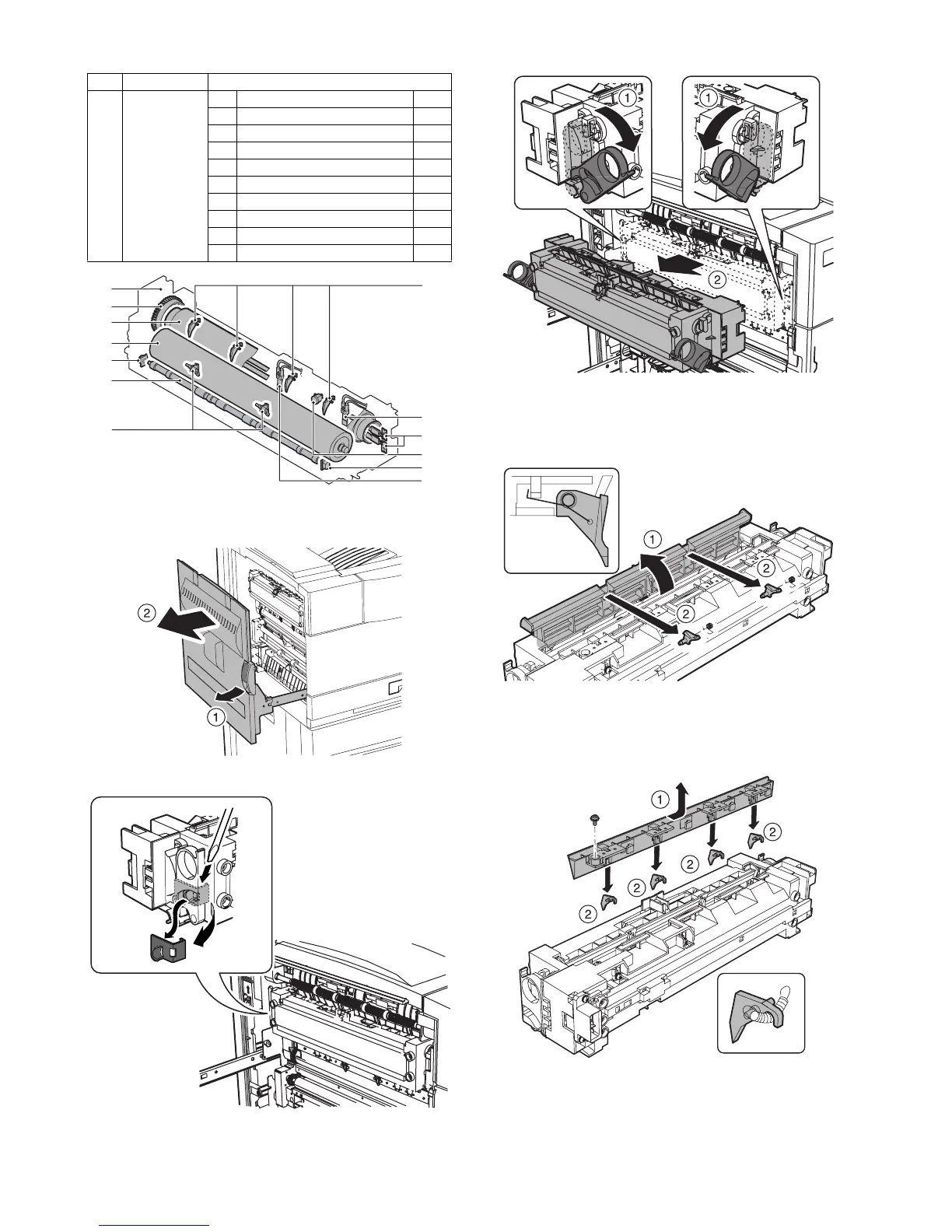

a. Fusing unit
1) Pull out the left door.
2) Remove the stopper R.
3) Pull the fusing lever, and remove the fusing unit.
a-1. Lower separation pawl
1) Remove the fusing unit.
2) Open the fusing rear lower PG, and remove the lower separa-
tion pawl.
a-2. Upper separation pawl
1) Remove the fusing unit.
2) Remove the rear upper PG, and remove the upper separation
pawl.
No. Unit Parts
a Fusing unit 1 Lower separation pawl ❍
2 Upper separation pawl ❍
3 Thermistor ✕
4 Lower heat roller ✕
5 CL roller ✕
6 CL roller bearing ✕
7 Heater lamp
8 Upper heat roller ✕
9 Upper heat roller gear ✕
10 Thermostat
a-1
a-3
a-2
a-6
a-3
a-10
a-4
a-8
a-9
a
a-6
a-5
a-7
