MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 41

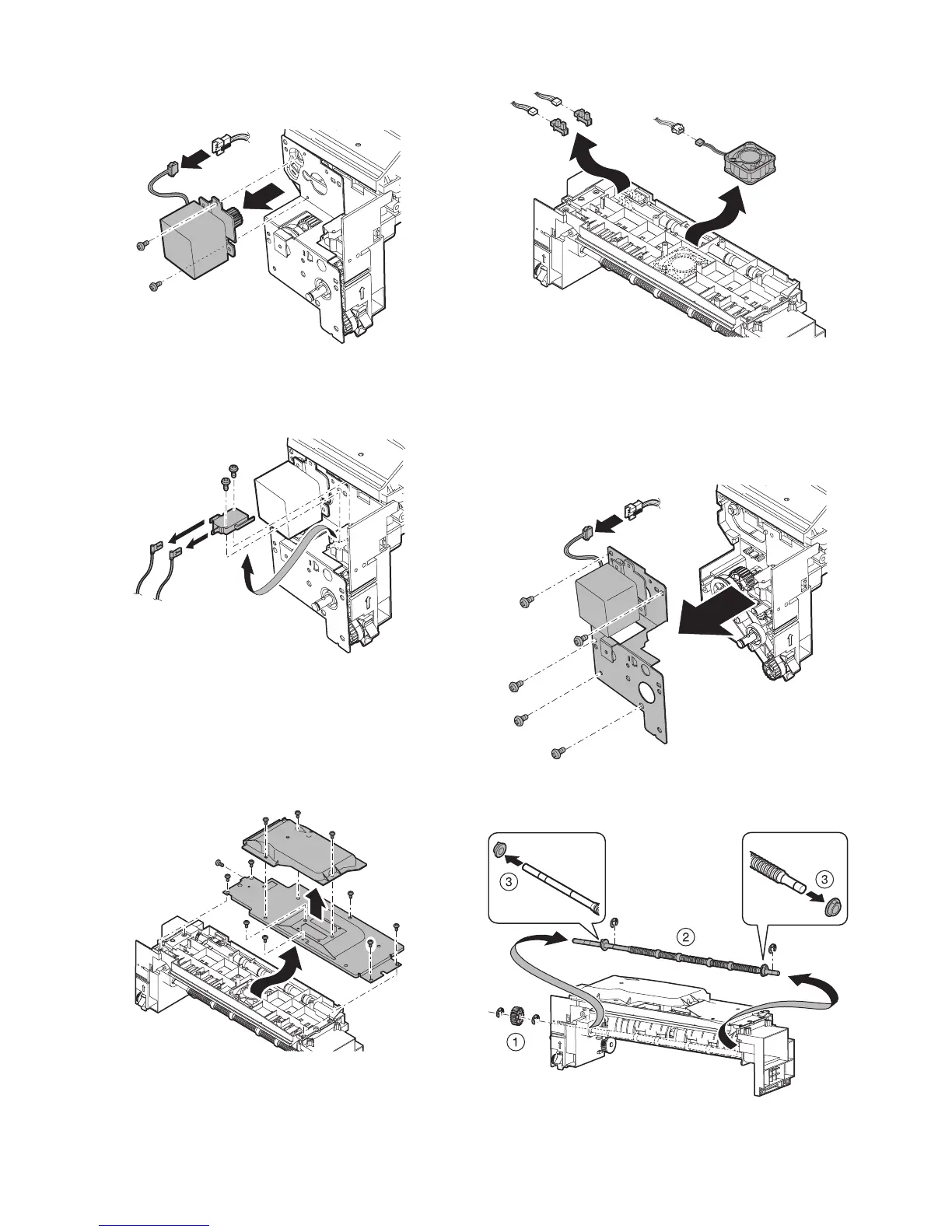

d-2. Paper exit motor
1) Remove the paper exit reverse unit.
2) Remove the connector and the screw, and remove the paper
exit motor.
d-3. Left door open/close detection
1) Remove the paper exit reverse unit.
2) Remove the connector and the screw, and remove the left
door open/close detection.
d-4. Exhaust heat fan motor
d-5. Paper exit detection 2
d-6. Paper exit full detection
1) Remove the paper exit reverse unit.
2) Remove the screw, and remove the exhaust duct.
3) Remove the screw, and remove the paper exit upper paper
guide reinforcement plate.
4) Remove the connector, the exhaust heat fan, the paper exit
detection 2, the paper exit full detection.
∗ When installing the fan, check the indication arrow and note the
fan direction.
d-7. After-fusing roller
1) Remove the paper exit reverse unit.
2) Remove the E-ring and the parts.
3) Remove the connector and the screw, and remove the paper
exit drive frame.
4) Remove the bearing, the E-ring, and the parts.
5) Remove the E-ring, and remove the fusing rear roller. Remove
the bearing.
To Next Page
