MX-M350/M450 N/U MAINTENANCE AND DETAILS OF EACH SECTION 7 - 53

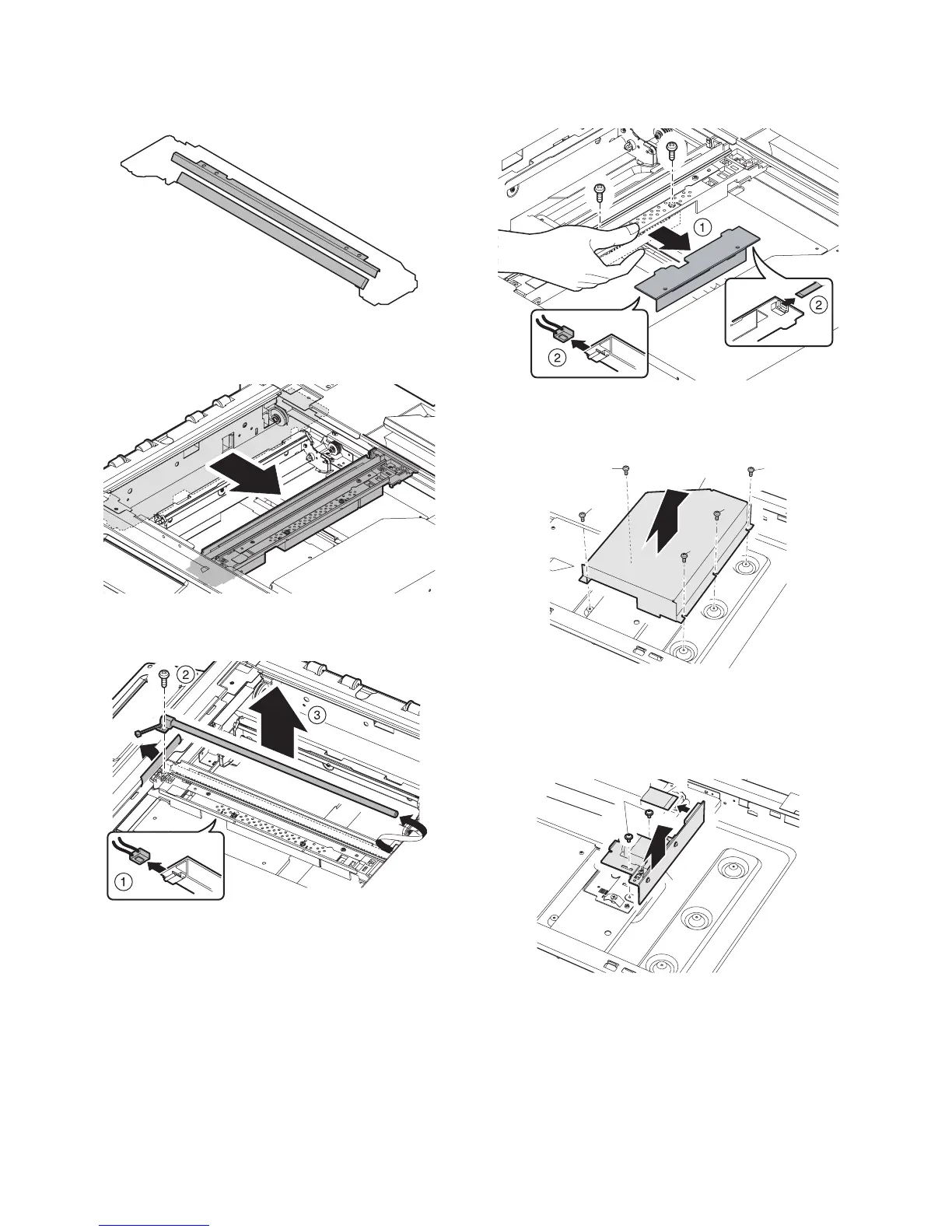

b-1. Reflector
b-1. Mirror
1) Remove the table glass.
2) Clean the reflector and the mirror.
b-3. Lamp
1) Remove the table glass.
2) Slide the lamp unit base to the notch section.
3) Flip the notch section Mylar and remove the screw. Slide the
lamp holder to the front side, and remove it upward from the
rear side. Remove the connector.
b-4. Inverter PWB
1) Remove the table glass.
2) Hold with your hand and remove the screw. Remove the con-
nector and remove the inverter PWB.
c. CCD lens PWB unit
1) Remove the table glass.
2) Remove the dark-box cover.
3) Remove the CCD lens PWB unit.
Note: Only the 2 screws marked in red may be used to remove
the CCD. Do not touch any others as they are set in the
factory. Failure to follow this warning will result in damaged
components and the whole assembly needs to be replaced.
1)
1)
1)
1)
1)
2)
2)
3)
1)
To Next Page
