MX-M503N Dehumidifying heater 27 – 1
MX-M503N
Service Manual
[27] Dehumidifying heater
1. Parts included
2. Installation
<Note before installation>
Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.

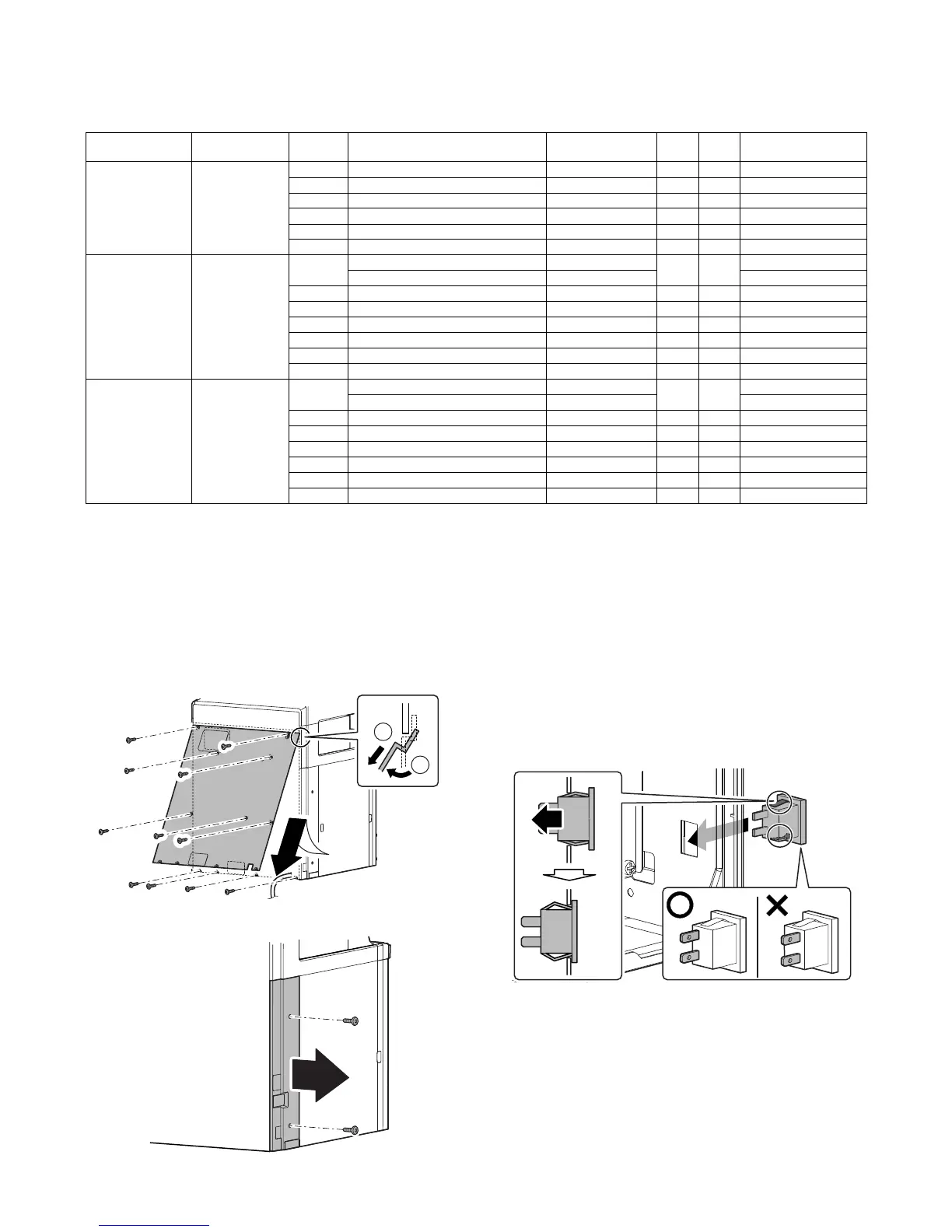

A. Removal of the rear cabinet and the left rear
lower cabinet
1) Remove the screw, and remove the rear cabinet.
2) Remove the screw, and remove the left rear lower cabinet.
B. Installation of the heater electric component
kit
(1) Attaching the dehumidifier heater switch
1) Attach the dehumidifier heater switch (package part No. 1) to
the frame.
NOTE: Install the dehumidifier heater switch so that the side of the
mounting terminal post is the inward side of the main unit.
Kit name Kit part code
Package
part No.
Description Part code
Price
rank
Q'ty Remarks
Heater electric
component kit
DKIT-0391FCZZ 1 Dehumidifier heater switch QSW-C9294QCZZ AF 1
2 Label for heater switch TLABZ5256FCZZ AH 1
3 Supporter LSUPP0118FCPZ AB 5
4 WH PWB CPWBF1675FC338 AQ 1
5 AC-WH harness 1 DHAI-3755FCZZ AH 1
– AC-WH harness 2 DHAI-3756FCZZ AE 1 Not used in this model
Heater kit DKIT-0385FCZZ
(120V series)
DKIT-0386FCZZ
(230V series)
6 Heater (120V series) RHETP0131FCPZ BE 1
Heater (230V series) RHETP0132FCPZ
7 Heater mounting plate LPLTM6089FCZZ AK 1
8 Screw (M3x6 S-tight) XHBS730P06000 AC 3
9 T-Heater cover PCOVP1654FCZ2 AN 1
10 Caution label (For high temperature) TCAUH1035FCZZ AC 1
11 Screw (M3x5 S-tight) XHBS730P05000 AA 1
12 Omega lock LHLDW1334FCZZ AA 1
Scanner heater kit DKIT-0383FCZZ
(120V series)
DKIT-0384FCZZ
(230V series)
13 Scanner heater (120V series) RHETP0129FCPZ AX 1
Scanner heater (230V series) RHETP0130FCPZ
14 Heater fixing plate LPLTM6923FCZZ AG 1
15 Banding band LBNDJ0013FCZ1 AE 2
16 Clamp LHLDW7011XCZZ AB 5
17 Screw (M3x4 Round-tipped) LX-BZ1041FCZZ AB 2
18 Screw (M4x6 Bind machine screw) XBBS740P06000 AA 1
19 Snap band LBNDJ0043FCZZ AA 1
To Next Page
