MX-M503N MX-PB11 15 – 1
MX-M503N
Service Manual
[15] MX-PB11

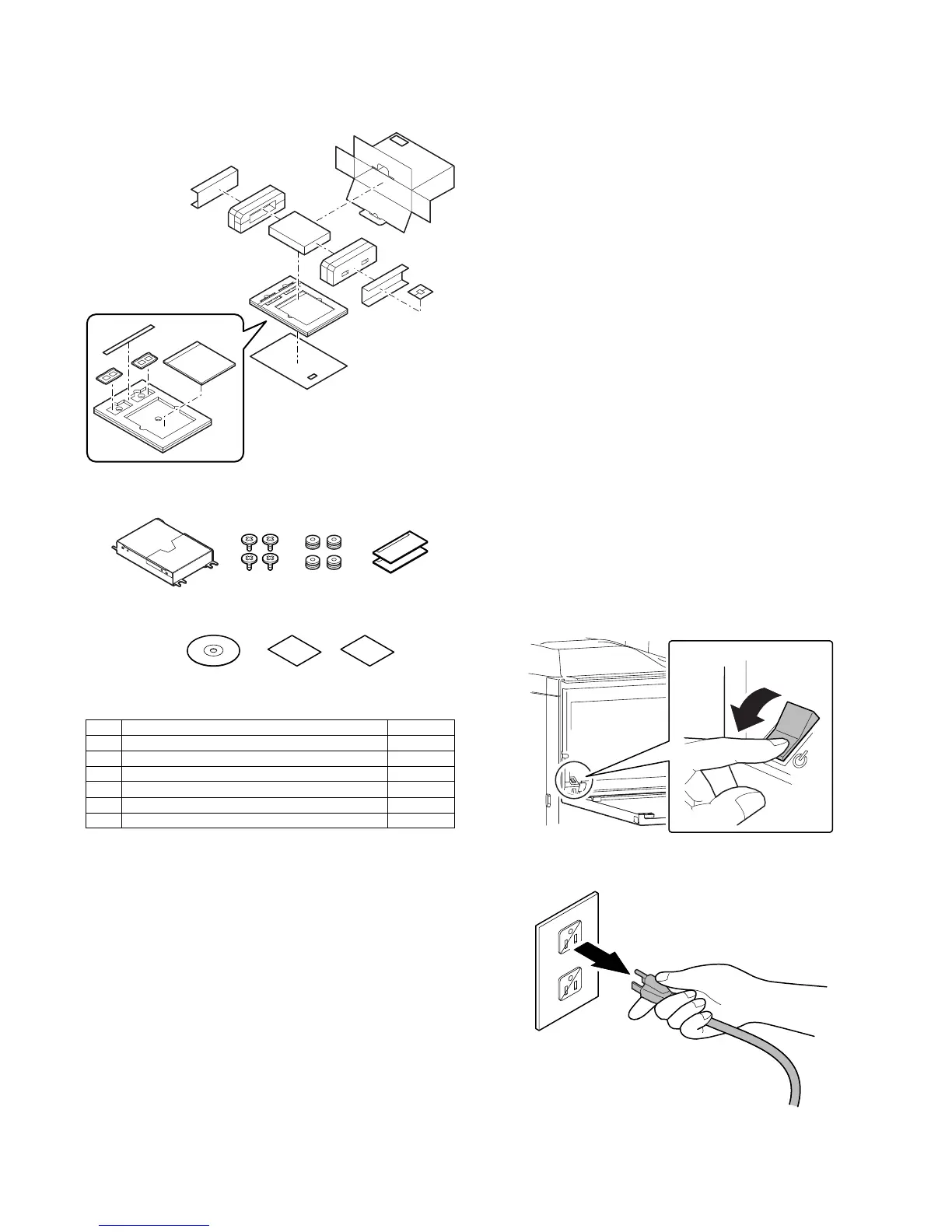

1. Unpacking
A. Parts included
2. Installation
A. Preliminary arrangements
NOTE: When this option is installed to a machine which has been
used by a user, be sure to backup the user data as shown
below.
When the MX-PB11 is installed, the user settings and the
registered data are initialized. (The simulation settings and
the adjustment data are not initialized.)
Before installing the MX-PB11, save the user data. After
completion of installation, the saved data. Must be
restored.
When this option is installed to a new machine, the proce-
dure below is not required.
Once the product key is inputted after installation of the
MX-PB11, the model cannot be changed back to the U
model without HDD. Before entering the product key, how-
ever, the model can be changed back to the U model with-
out HDD. In that case, however, the user settings and the
registered data are initialized.
1) Use the device cloning function to backup the user setting data
stored in the SRAM and the EEPROM to a PC or USB mem-
ory.
Use the device cloning function on either the system setting or
the Web Page menu to backup the data.
2) Use the storage backup function to backup the user data
stored in the HDD to a PC or USB memory.
Use the storage backup function on either the system setting
or the Web Page menu to backup the data.
B. Turn off the power of the main unit
1) Turn the power switch located on the operation panel to the
"OFF" position.
2) Open the front cabinet. Turn OFF the power switch in the front
cabinet of the main unit.
3) Disconnect the power plug of the main unit from the power out-
let.
No. Packed part names Quantity
1 HDD with frame (Included Water mark data) 1
2 HDD fixing screw 4
3 HDD rubber isolator 4
4 Flash ROM (Program 1/Program 2) 2
5 CD-ROM (Driver) 1
6 Product key sheet with Application number 1
5 6 7
1234
OFF
To Next Page
