MX-M503N MX-FN11 9 – 3
2. Installation
<Note before installation>
* Installing the MX-FN11 requires that the option desk (MX-DEX8/
DEX9) and junction unit (MX-RBX3) be installed in advance. Be
sure to complete the installation of the option desk (MX-DEX8/
DEX9) and junction unit (MX-RBX3) before installing the finisher.
* When the MX-FN11 and MX-PNX6A/B/C/D is installed at the
same time, first install the MX-PNX6A/B/C/D, and then install the
MX-FN11.

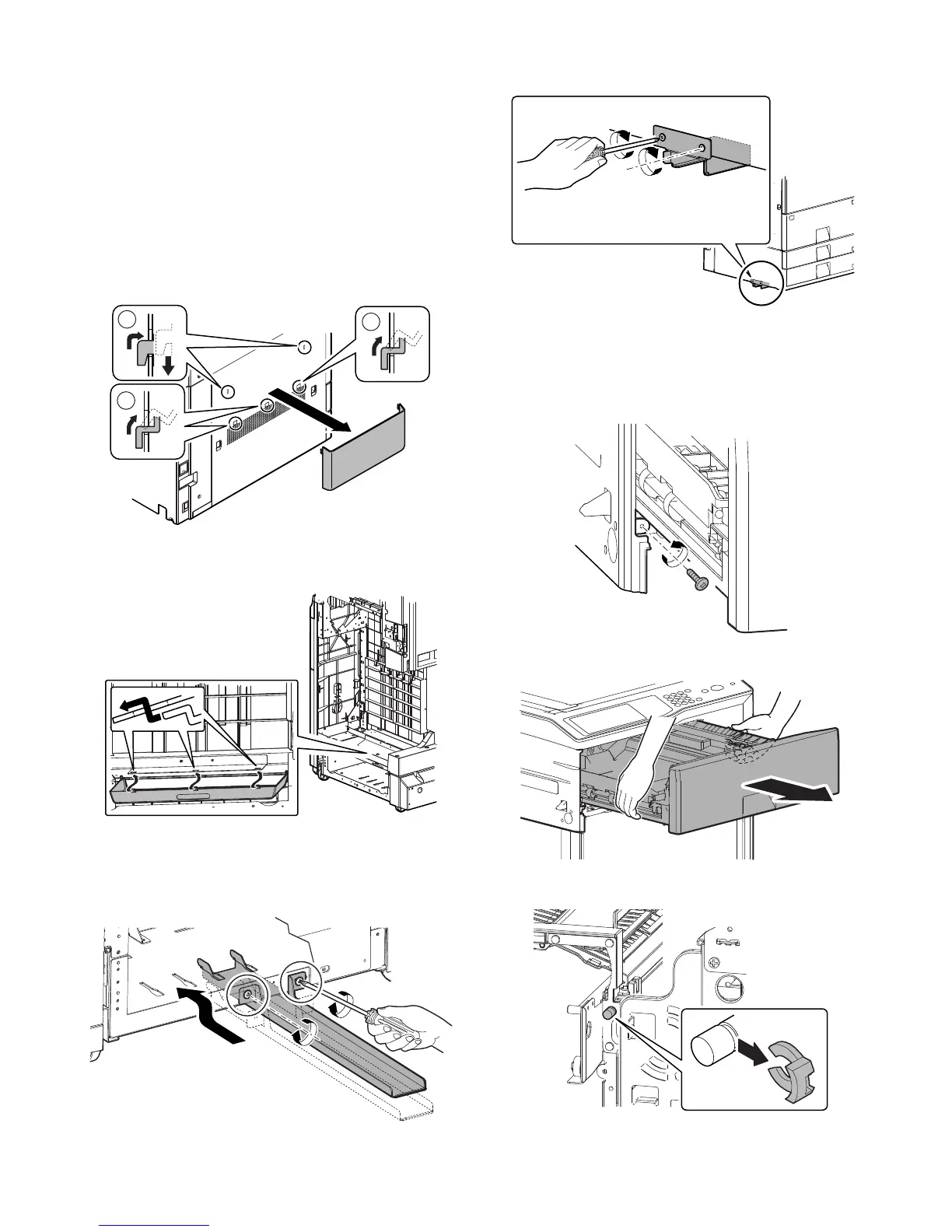

A. Replacement of the Operation Manual storage
cover
1) Remove the Operation Manual storage cover on the left side of
the machine.
2) Install the Operation Manual storage cover (which was
removed from the machine) to the finisher.
B. Installation of the rail
1) Install the rail (Package part No. 5) to the finisher with the fix-
ing screws (Package part No. 1).
2) Install the rail reception sheet metal (Package part No. 6) to
the main unit with the fixing screws (Package part No. 2).
C. Removal of the paper pass latch reception
parts and the positioning pin
1) Remove the screw, and release the paper pass disconnection
preventing lever.
2) Remove the paper pass unit.
3) Remove the resin E-ring that secures the reverse tray.
To Next Page
