MX-M503N MX-PNX5A/B/C/D 8 – 1
MX-M503N
Service Manual
[8] MX-PNX5A/B/C/D

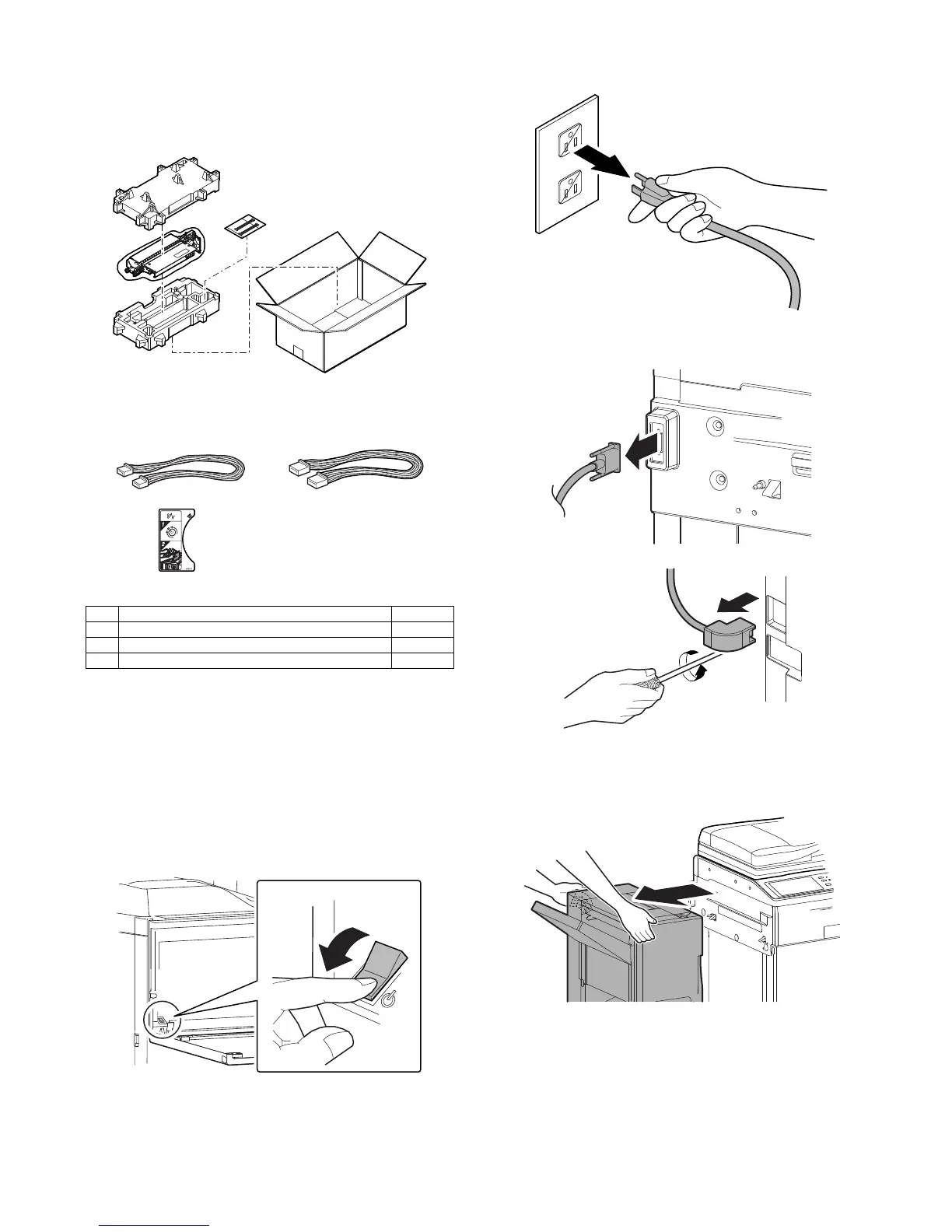

1. Unpacking
A. Removal of the punch unit
B. Check the packed items
1) Check that all the items are included in the package.
* Use the punch position labels bundled with the MX-FN10.
2. Installation
<Note before installation>
* Before starting installation, check to insure that the data lamp on
the operation panel does not light up or blink.
A. Turn off the power of the main unit
1) Turn OFF the power switch on the operation panel.
2) Open the front cabinet.
Turn OFF the power switch in the front cabinet of the main unit.
3) Disconnect the power plug of the main unit from the power out-
let.
4) Disconnect the connector between the main unit and the sad-
dle finisher.
B. Installation of the punch unit
1) Release the lock and separate the saddle finisher from the
main unit.
No. Packed part names Quantity
1 Harness A (Purple) 1
2 Harness B (Gray) 1
3 Punch jam processing label 1
To Next Page
